118-109F190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1988) Rotary Mower 109R Parts Diagram

Lawn Boss 21" Walk-Behind Mower

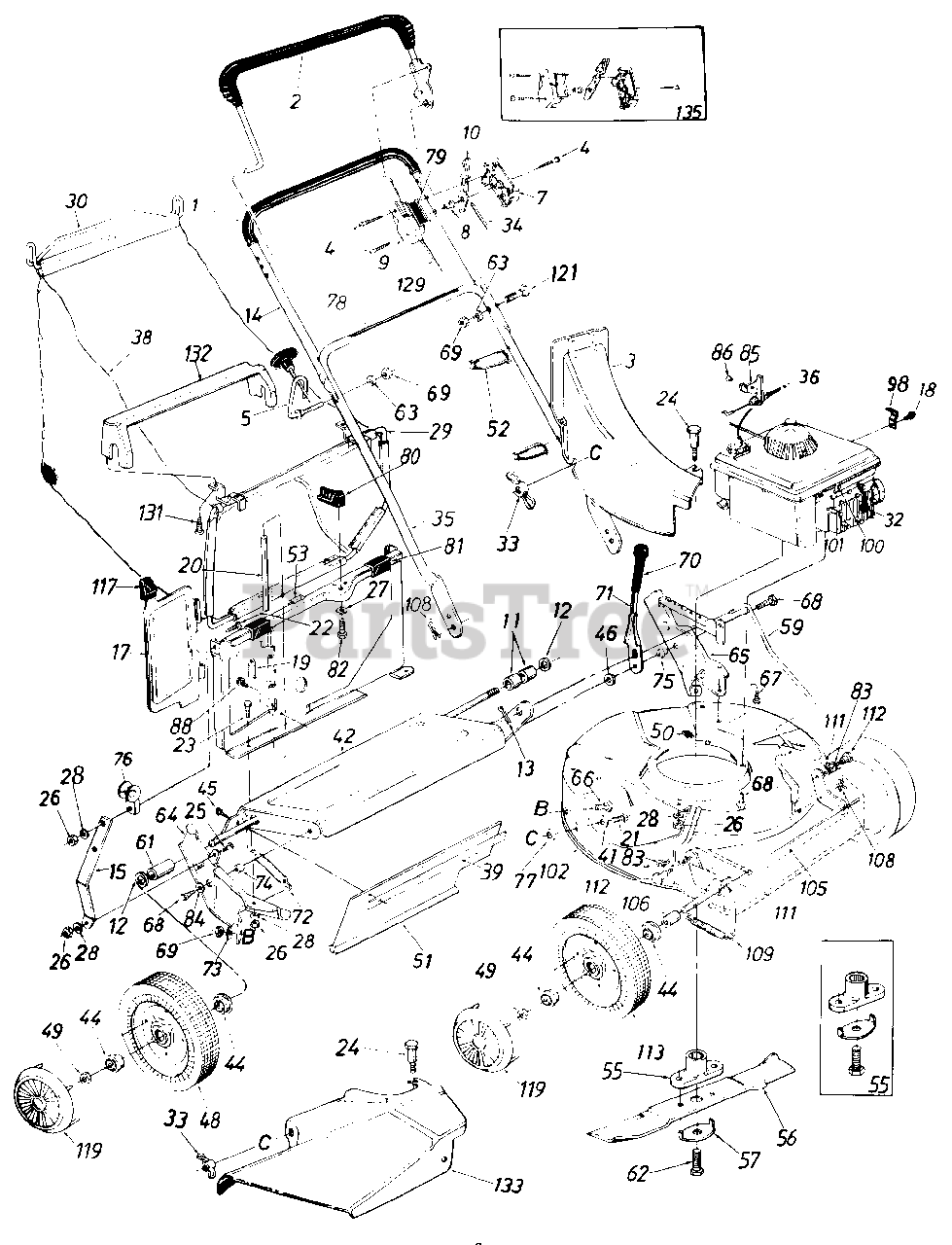

Rotary Mower 109R Parts Diagram

  • Title

1

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

2

MTD 731-0609

Control Handle Ass'y.-L.H.

Note: NLA

$

$

Not available

3

MTD 731-0733

Top Discharge Chute Ass y

Note: NLA

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 710-0842

Rope Guide Bolt

Note: NLA

$

$

Not available

7

MTD 731-0817A

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

Note: NLA

$

$

Not available

10

MTD 931-0972

Throttle Control Lever

$9.99

$

In Stock, Qty 13

0

11

MTD 911-0500

Spacer 526" I.D. x .690" O.D. x .640" Lg.

$

$

Not available

12

MTD 936-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

In Stock, only 4 left!

0

13

MTD 914-0507

ICotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 17

0

14

MTD 749-0438D-0637

Upper Handle-Chrome

$

$

Not available

15

MTD 16129A-0637

Panel Support Brkt.

$11.99

$

Usually ships in 3-6 days

0

15

MTD 17196

Top Catcher Panel Ass y.

Note: NLA

$

$

Not available

17

MTD 17095A-0637

Top Discharge Door

$

$

Not available

18

MTD 910-0429

IHex B-Tap Scr. #10 x .38"

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

Note: NLA

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0225

Truss Mach. Scr. 1/4-20 x 75 Lg

Note: NLA

$

$

Currently unavailable

23

MTD 910-0289

Hex Bolt 1/4-20 x .50" Lg.

$3.99

$

In Stock, only 3 left!

0

24

MTD 938-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special
(Superseded to 738-0704)

$

$

Not available

25

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

26

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

27

MTD 936-0271

Spring Wash. .32" I.D.

$4.49

$

In Stock, Qty 10

0

28

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

29

MTD 16702

Front Grass Catcher Framet

Note: NLA

$

$

Not available

30

MTD 747-0495

Upper Bag Handlet

Note: NLA

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0397A

Wing Nut w/Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 946-0674A

Throttle Control Wire-58"

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0907B

Lower Handle-Chrome

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

38

MTD 764-0212

21" Top Discharge Grass Bag-Black

Note: NLA

$

$

Currently unavailable

38

MTD 764-0216

21" Top Discharge Grass Bag-Grey

Note: NLA

$

$

Not available

39

MTD 14835

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 8

0

42

MTD 16131

Rear Axle Ass'y.

Note: NLA

$

$

Not available

44

MTD 941-0180

Flange Ball Bearing 1/2" I.D.

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0896

Hex AB-Tap Scr. '/4 x .62"

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0258

Fl-Wash. .38" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

48

MTD 734-1264

Wheel Ass'y. (7 x 1.75)

$55.99

$

Usually ships in 3-6 days

0

48

MTD 734-1260

Wheel Ass'y. (8 x 1.75)

Note: NLA

$

$

Not available

48

MTD 734-1511

Wheel Ass'y. (7 x 2)

Note: NLA

$

$

Not available

48

MTD 734-2004B

Wheel Ass'y. (8 x 2)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

49

MTD 912-0346

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 9

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0671

Rear Flap 3.75" x 17.30" Lg.

Note: NLA

$

$

Currently unavailable

52

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

MTD 722-0134

Foam Strip 1" Lg.

Note: NLA

$

$

Currently unavailable

55

MTD 753-0462

Blade Adapter Kit

Note: NLA

$

$

Not available

56

MTD 942-0621

21" Blade

$29.99

$

In Stock, only 1 left!

0

57

MTD 753-0525

Blade Bell-Wash. .44" I.D. x 2.38"

$

$

Not available

59

MTD 747-0510

Height Adj. Rod. 19.42" Lg.

Note: NLA

$

$

Not available

61

MTD 911-0313

Sleeve.526" I.D 0 x.69"

$

$

Not available

62

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg.

$6.99

$

In Stock, Qty 8

0

63

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass 'y .

$

$

Not available

65

MTD 16137C-0637

L.H. Handle Wheel Brkt. Ass'y.

$

$

Not available

66

MTD 710-0260A

Carriage Bolt 5/16-18 x .62"'

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

MTD 912-0267

Hex Nut 5/16-18 Thd.'
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

MTD 732-0473B

Height Adj. Lever

$

$

Not available

72

MTD 932-0481

Extension Spring 3.8" Lg.

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer .500" Dia.

$

$

Not available

76

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

77

MTD 726-0233

Bolt Retainer 1/4 x 50" O.D.

$4.49

$

In Stock, only 3 left!

0

78

MTD 777-5816

Instruction Label

Note: NLA

$

$

Currently unavailable

79

MTD 777-5812

Control Label

$

$

Not available

80

MTD 920-0224

Grass Catcher Locking Knob

$

$

Not available

81

MTD 731-0883

Panel Clip

Note: NLA

$

$

Not available

82

MTD 710-0875

Hex Tap Scr. 1/4-20 x .75" Lg.

$3.99

$

In Stock, only 2 left!

0

83

MTD 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 4 left!

0

84

MTD 936-0179

Fl-Wash. .531" I.D. x 1.25"
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

85

MTD 14924

Cable Bracket

Note: NLA

$

$

Not available

86

MTD 728-0171

Pop Rivet .156" Dia.

$

$

Not available

88

MTD 910-0429

Hex B-Tap Scr. #10 x .38"

$3.99

$

Usually ships in 3-6 days

0

98

MTD 12894

Cable Clamp

Note: NLA

$

$

Not available

100

MTD 710-0651

Hex B-Tap Scr. #10 x .62"

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0463

Cable Clamp

Note: NLA

$

$

Not available

102

MTD 16125

21" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

105

MTD 10662

Front Axle Ass'y.

Note: NLA

$

$

Currently unavailable

106

MTD 911-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

108

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring 3.2" Lg.

$

$

Not available

111

MTD 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

MTD 938-0705

Shld. Bolt .575" Dia. x .42"

$

$

Not available

113

MTD 734-1264

Wheel Ass'y. (7 x 1.75)

$55.99

$

Usually ships in 3-6 days

0

113

MTD 734-1260

Wheel Ass'y. (8 x 1.75)

Note: NLA

$

$

Not available

113

MTD 734-1511

Wheel Ass'y. (7 x 2)

Note: NLA

$

$

Not available

113

MTD 734-2004B

Wheel Ass'y. (8 x 2)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

117

MTD 720-0426

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

119

MTD 731-0124

Hub Cap (7 x 1.75, 8 x 1.75)

Note: NLA

$

$

Not available

119

MTD 731-0981C

Hub Cap (7 x 2, 8 x 2)

$10.99

$

Usually ships in 3-6 days

0

121

MTD 710-0671

CuNed Carr. Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

129

MTD 946-0478A

Control Cable-46" Lg.

$

$

Not available

131

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25"

$6.49

$

Usually ships in 3-6 days

0

132

MTD 731-0801

Bag Handle

$

$

Not available

133

MTD 731-0886

Side Chute Deflector Ass'y.

Note: NLA

$

$

Not available

135

MTD 753-0430

Kit-Control Housing Comp.

Note: NLA

$

$

Not available
