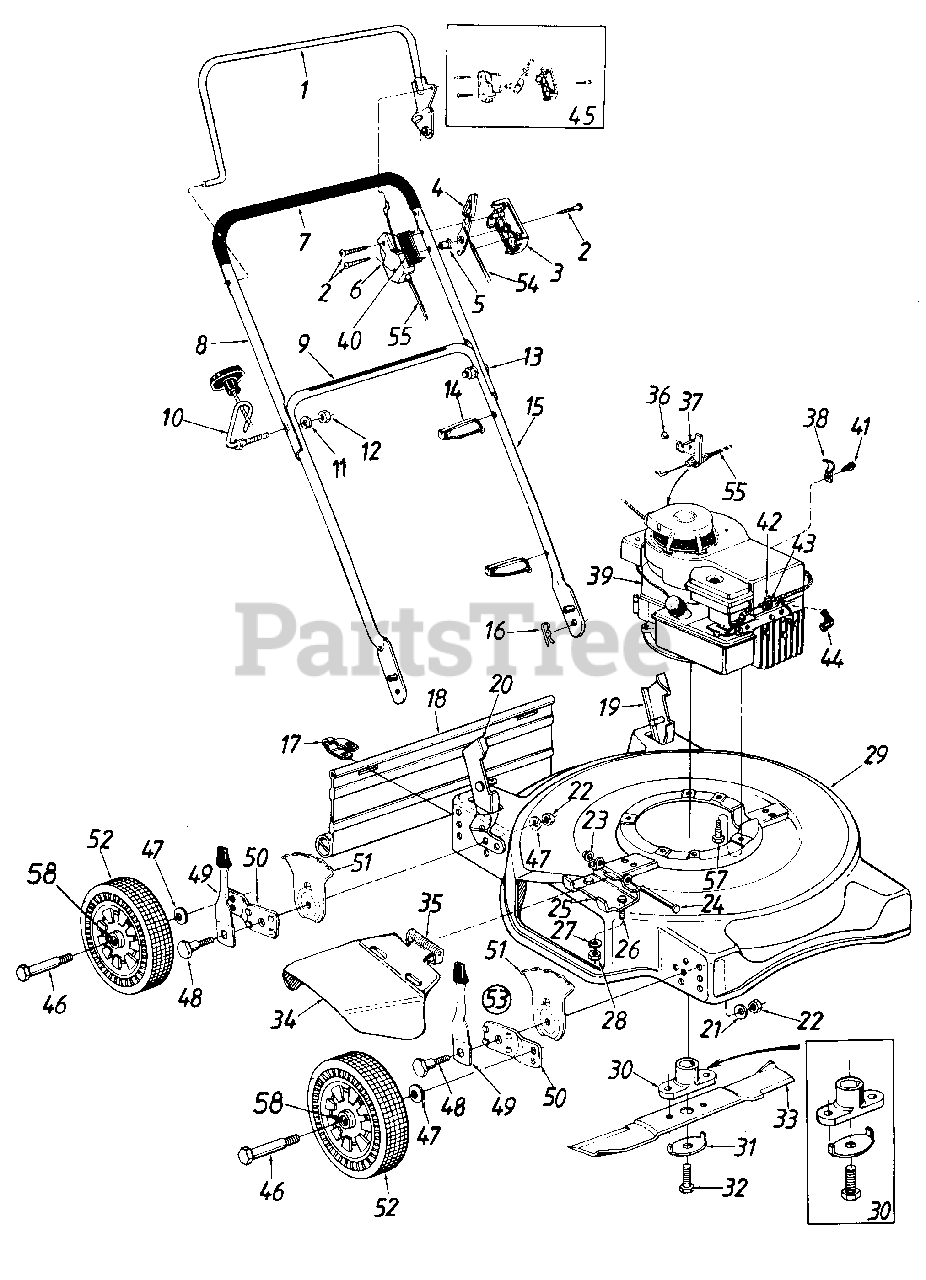

118-072R190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1988) Rotary Mower Parts Diagram

Lawn Boss 20" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 14321

Control Handle Ass'y.

$

$

Not available

2

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

Usually ships in 3-6 days

0

3

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

4

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

6

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

7

718-0145

Grip

Note: (Optional)

$

$

Not available

8

White Outdoor 749-0754

Upper Handle

$

$

Not available

9

777-5776

Instruction Label-Handle

$

$

Not available

10

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

11

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

13

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 -x 1.38" Lg.

$

$

Not available

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

16

White Outdoor 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 731-0872

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

White Outdoor 17189

Handle Bracket Ass'y.-L.H.
(Superseded to 17189B-0637)

$

$

Not available

20

White Outdoor 17188

Handle Bracket Ass'y.-R.H.
(Superseded to 17188B-0637)

$

$

Not available

21

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

White Outdoor 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

24

White Outdoor 711-0555

Pivot Pin

$

$

Not available

25

White Outdoor 11130

Aaapter Plate

$

$

Not available

26

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

27

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

28

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

29

White Outdoor 17036

20" Deck Ass'y.

Variations

White Outdoor 17036-0480

No Longer Available DECK ASSEMBLY-20IN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17036-0483

DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17036-0498

No Longer Available DECK ASSEMBLY-20IN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17036-0629

DECK ASSEMBLY-20IN - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17036-0638

No Longer Available DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17036-0662

No Longer Available DECK ASSEMBLY-20IN - OYSTER GRAY (0662)

$

$

Not available

$

$

30

White Outdoor 753-0462

Blade Adapter Kit

$

$

Not available

31

White Outdoor 736-0415

Blade Bell-Wash. .45" I.D. x 2.38"
(Superseded to 753-0525)

$

$

Not available

32

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

33

White Outdoor 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

34

White Outdoor 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

35

White Outdoor 732-0253

Torsion Spring

$

$

Not available

36

White Outdoor 728-0171

Pop Rivet

$

$

Not available

37

White Outdoor 14924

Cable Bracket

$

$

Not available

38

White Outdoor 12894

Cable Clamp

$

$

Not available

39

Engine

$

$

Not available

40

777-5773

Control Label-Throttle

$

$

Not available

41

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

42

White Outdoor 751-0369

Cable Clamp

$

$

Not available

43

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

45

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

46

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-0507

Shld. Bolt .50" Dia. x .357"
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

49

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

White Outdoor 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

51

White Outdoor 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

White Outdoor 734-1260

Wheel Ass'y. (8 x 1.75)

$

$

Not available

White Outdoor 734-1513

Wheel Ass'y. (8 x 2)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

53

White Outdoor 14578

Height Adj. Ass'y. Comp.- 0 R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp.- 0 L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

54

White Outdoor 746-0642

Throttle Cable-51"
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

55

White Outdoor 746-0476

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

57

White Outdoor 710-0654

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

58

White Outdoor 741-0180

1/2" I.D. Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0
