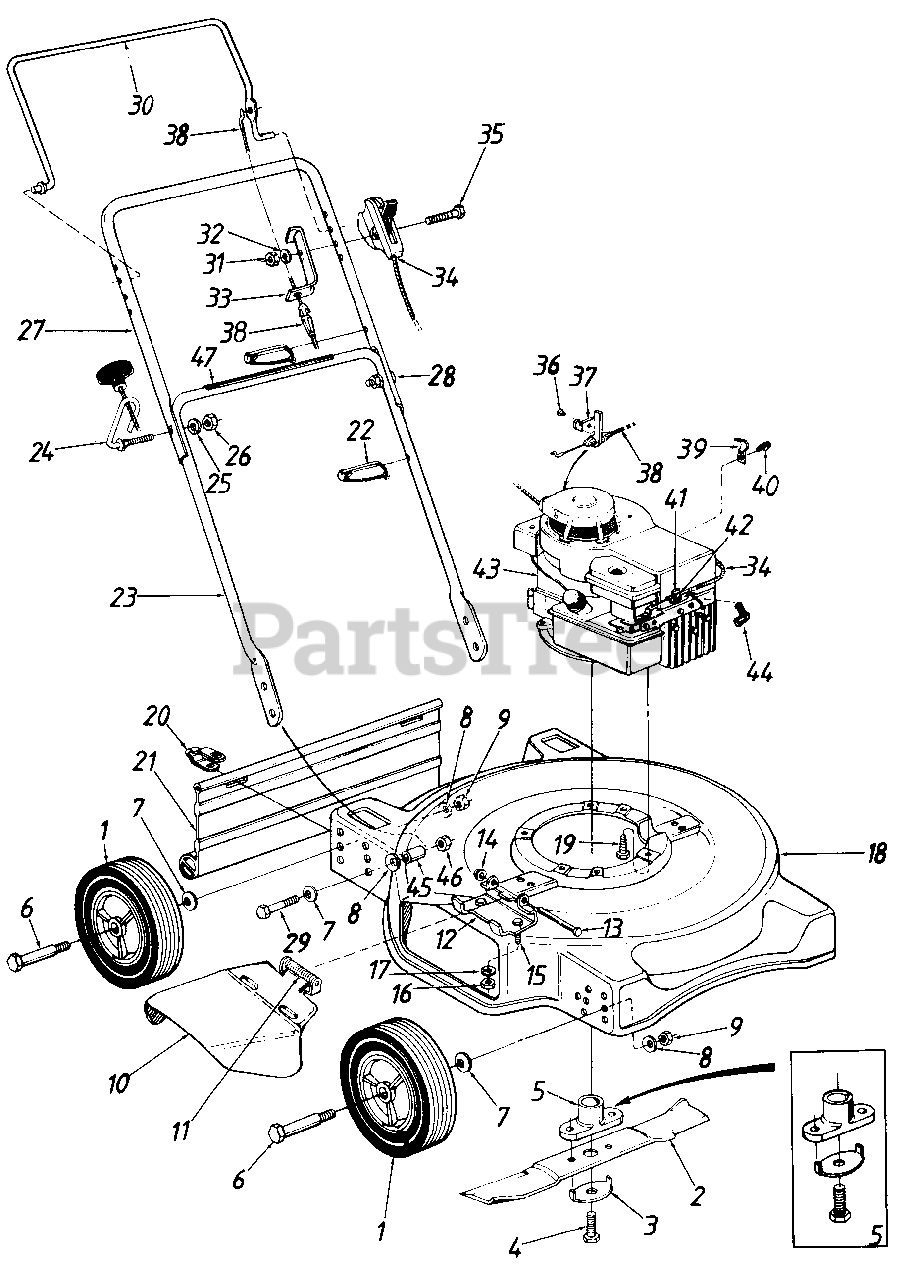

118-050R190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1988) Rotary Mower Parts Diagram

Lawn Boss 20" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 734-1161

Wheel Ass'y. Complete

$

$

Not available

2

White Outdoor 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

3

White Outdoor 736-0415

Blade Bell-Wash. .45" I.D. x 2.38"
(Superseded to 753-0525)

$

$

Not available

4

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

5

White Outdoor 753-0462

Blade AdaDter Kit

$

$

Not available

6

White Outdoor 738-0213

Front Axle Bolt

$7.99

$

In Stock, only 2 left!

0

White Outdoor 738-0509

Rear Axle Bolt

$

$

Not available

White Outdoor 750-0515

Spacer

Note: (Used w/Rear Axle Bolt)

$4.49

$

In Stock, only 4 left!

0

7

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 16

0

9

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

11

White Outdoor 732-0253

Torsion Spring

$

$

Not available

12

White Outdoor 11130

Adapter Plate

$

$

Not available

13

White Outdoor 711-0555

Pivot Pin

$

$

Not available

14

White Outdoor 726-0106

Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

16

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

18

17038

20" Deck Ass'y.

$

$

Not available

19

White Outdoor 710-0654

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

White Outdoor 731-0872

Rear Flap 16.75" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

24

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 749-0754

Upper Handle

$

$

Not available

28

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

29

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. Grade 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

White Outdoor 747-0550

Control Handle

$

$

Not available

31

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0175

Spr. Wash. .265" I.D. x .562" Lg.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

33

White Outdoor 16201

Cable Mounting Bracket

$

$

Not available

34

White Outdoor 746-0646

Throttle Control Ass'y. Comp.
(Superseded to 946-0802A)

$60.99

$

In Stock, only 1 left!

0

35

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.

$

$

Not available

36

White Outdoor 728-0171

Pop Rivet .156" Dia. x .316

$

$

Not available

37

White Outdoor 14924

Cable Bracket

$

$

Not available

38

White Outdoor 746-0550

Control Cable
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

39

White Outdoor 12894

Casing Clamp

$

$

Not available

40

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

41

White Outdoor 751-0369

Casing Clamp

$

$

Not available

42

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 15

0

43

Engine

$

$

Not available

44

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

45

White Outdoor 750-0727

Spacer .381" I.D. x .56" O.D. x . 75 " Lg.

$

$

Not available

46

White Outdoor 712-0214

Hex Lock Nut 3/8-24 Thd.

$6.49

$

In Stock, only 4 left!

0

47

777-5776

Instruction Label-Handle

$

$

Not available
