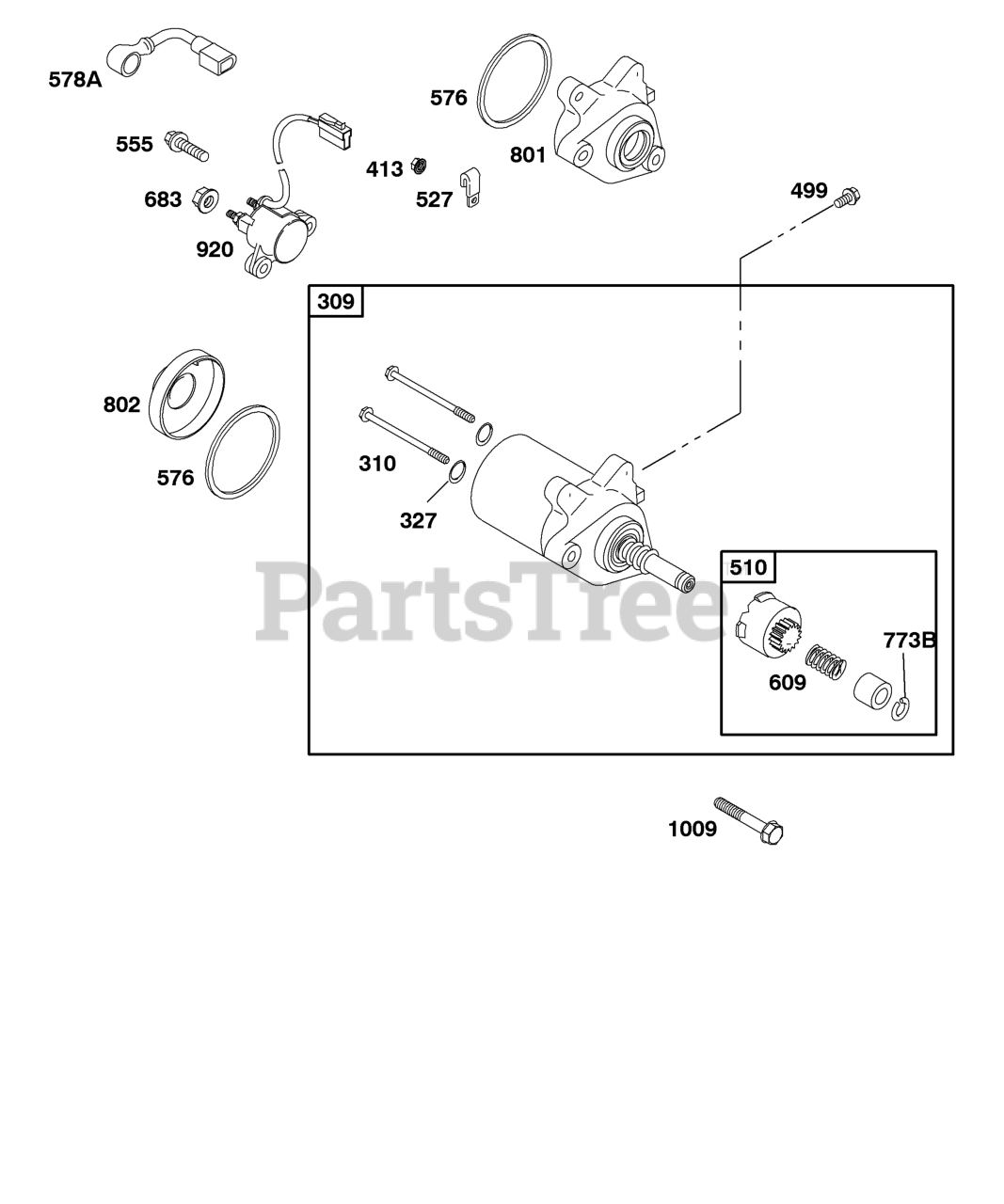

117432-0236-E1 - Briggs & Stratton Horizontal Engine Electric Starter Parts Diagram

Horizontal Engine

Electric Starter Parts Diagram

  • Title

309

Briggs & Stratton 715412

Motor-Starter

$434.99

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 715633

Motor-Starter
(Superseded to 715412)

$434.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 710838

Screw

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

327

Briggs & Stratton 710841

Washer

Note: (Starter Sub Assembly)

$3.49

$

Usually ships in 2-12 days

0

413

Briggs & Stratton 710081

Nut

Note: (Starter Motor)

$3.99

$

In Stock, only 2 left!

0

499

Briggs & Stratton 710853

Screw

Note: (Starter Sub Assembly)

$3.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 715634

Drive-Starter

$167.99

$

Usually ships in 2-12 days

0

527

Briggs & Stratton 710100

Clamp-Tube

$6.99

$

Usually ships in 2-12 days

0

555

Briggs & Stratton 710845

Screw

Note: (Starter Solenoid)

$3.99

$

Usually ships in 2-12 days

0

576

Briggs & Stratton 710834

Seal-O Ring

Note: (Starter Sub Assembly)

$6.49

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 710847

Wire Assembly

Note: (Starter Solenoid)

$11.99

$

Usually ships in 2-12 days

0

609

Briggs & Stratton 710828

Spring-Starter Drive

$4.99

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 710849

Nut

Note: (Starter Solenoid)

$2.49

$

Usually ships in 2-12 days

0

773B

Briggs & Stratton 710830

Retainer

$4.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 710836

Cap-Drive

Note: (Includes Brush Set)(Order Starter Motor 715808)

$123.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 710832

Cap-End

$20.99

$

Usually ships in 2-12 days

0

920

Briggs & Stratton 710843

Solenoid-Starter

$95.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 710348

Screw

Note: (Starter Motor)

$5.49

$

Usually ships in 2-12 days

0
