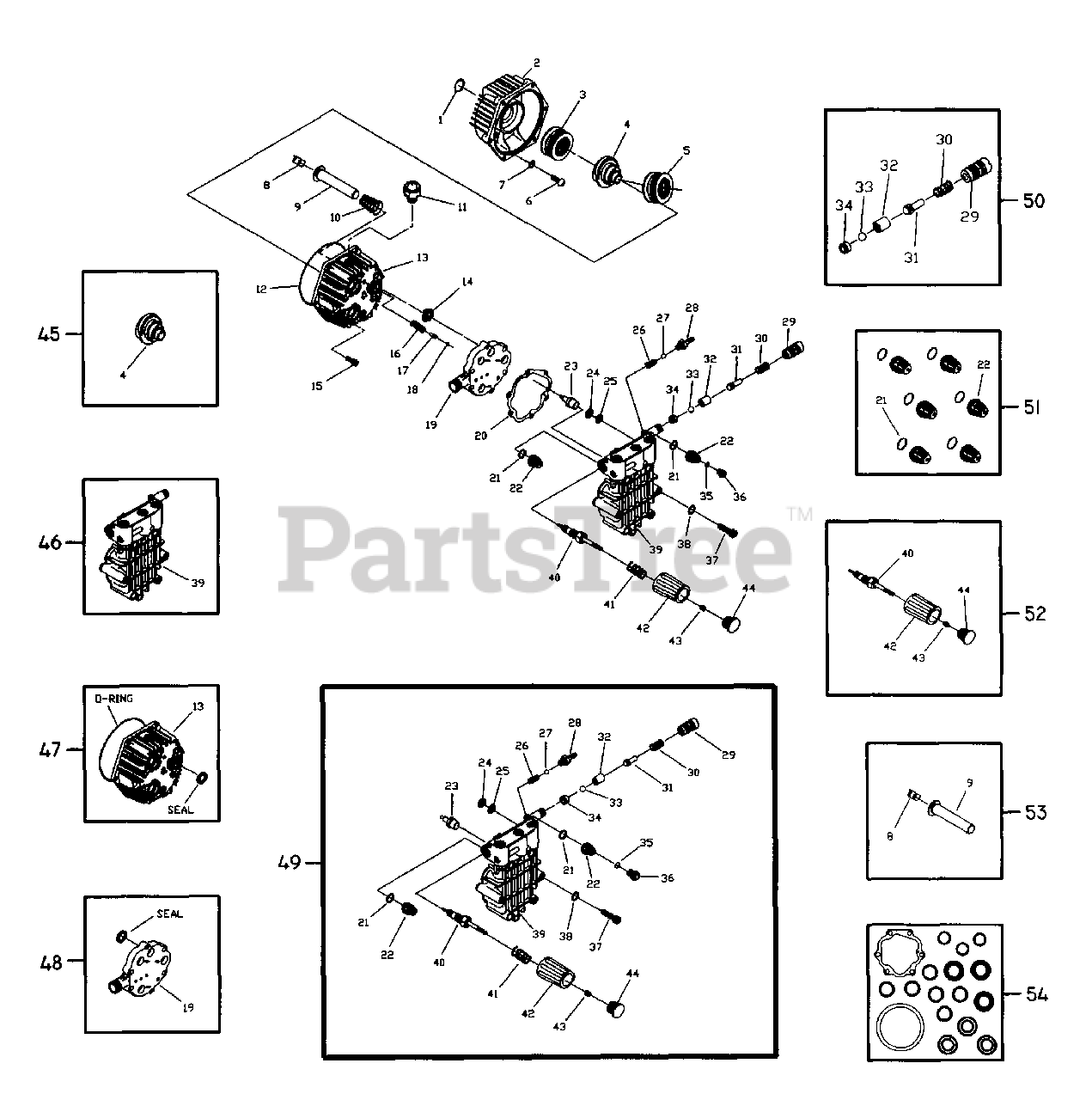

1172-2 - Generac 2,250 PSI Pressure Washer Pump Parts Diagram

2,250 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton B2218

O-RING, 1.625" x 0.103
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton B2260

ADAPTER, Engine
(Superseded to B2260GS)

$34.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96542

BEARING, Eng. Adptr. Roller Thrust 4 x 4
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton B3326

CAM, Axial 7.5 Lift
(Superseded to B3326GS)

$64.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 97606

BEARING, Axial Cam Roller Thrust 55 x 4
(Superseded to 97606GS)

$88.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B2261B

SCREW, Button Hd 5/16 - 24 x 3/4" Lg
(Superseded to B2261BGS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B2217

O-RING, 0.239 ID x 0.070
(Superseded to B2217GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 94944

SHOE, Piston Pivot
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 99427

ASSEMBLY, Ceramic Piston & Cap
(Superseded to 99427GS)

$39.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 96400

SPRING, Piston Return
(Superseded to 96400GS)

$

$

Not available

11

Briggs & Stratton 99735

ASSEMBLY, Breather
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 93790

"O" RING, Crankcase 113.97 x 119.21 x 2.62
(Superseded to 93790GS)

$6.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2016

CRANKCASE ASSEMBLY
(Superseded to B2016GS)

$60.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 93668

SPACER, Pilot
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 40945

SCREW, SHC M6 x 1.0 x 20 mm Lg
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 93652

SPRING, Thermal Relief Actuator
(Superseded to 93652GS)

$6.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 95416

PISTON, Thermal Relief Actuator
(Superseded to 95416GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93876

"O" RING, Thermal Relief 2.9 x 6.5 x 1.78
(Superseded to 690312)

$3.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2015

SPACER ASSEMBLY
(Superseded to B3509GS)

$95.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton A2069

GASKET, Head
(Superseded to A2069GS)

$4.99

$

In Stock, Qty 10

0

21

Briggs & Stratton 97934

O - RING, Check Valve
(Superseded to 97934GS)

$

$

Not available

22

Briggs & Stratton B1449

CHECK VALVE, Inlet and Outlet
(Superseded to B1449GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 93644

ACTUATOR, Thermal Relief
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 96053

SEAL, High Pressure
(Superseded to 96053GS)

$

$

Not available

25

Briggs & Stratton 96015

RING, Bearing
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 95380

SPRING, Chemical Injector
(Superseded to 95380GS)

$

$

Not available

27

Briggs & Stratton 95379

BALL, 5.5 dia. Chemical Injector

$

$

Not available

28

Briggs & Stratton A1575

BARB HOSE, Brass with Nylon Insert
(Superseded to A1575GS)

$

$

Not available

29

Briggs & Stratton B2151

VENTURI ASSEMBLY
(Superseded to B2151GS)

$12.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 89138

SPRING, Check Valve
(Superseded to 89138GS)

$5.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1879

SHUTTLE PISTON ASSEMBLY
(Superseded to B1879GS)

$5.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton A2503

SEAT, Trapped Line Pressure
(Superseded to A2503GS)

$6.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton A2015

BALL, Stainless Steel 9/32 Dia.
(Superseded to A2015GS)

$5.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B2152

BALL SEAT ASSEMBLY
(Superseded to B2152GS)

$5.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97840

"O" RING, Chk Valve Cap 15.6 x 19.16 x 1.78
(Superseded to 97840GS)

$5.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 97841

CAP, Outlet Port
(Superseded to 97841GS)

$

$

Not available

37

Briggs & Stratton A2013

BOLT, Head M8 x 1.25 x 70mm Lg
(Superseded to A2013GS)

$5.99

$

In Stock, Qty 5

0

38

Briggs & Stratton B2665

WASHER, Steel Special
(Superseded to B2665GS)

$3.49

$

In Stock, only 4 left!

0

39

Briggs & Stratton B3148

HEAD ASSEMBLY

$

$

Currently unavailable

40

Briggs & Stratton B3185

UNLOADER SPINDLE ASSEMBLY

$

$

Currently unavailable

41

Briggs & Stratton A1716

SPRING, Unloader
(Superseded to A1716GS)

$7.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B3117

HANDLE, Unloader
(Superseded to B3117GS)

$7.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton A2014

SET SCREW, M6 - 1.0 x 8mm
(Superseded to A2014GS)

$3.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B2241

CAP, Plastic
(Superseded to B2241GS)

$3.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B3511

CAM ASSEMBLY, 7.5 LIFT
(Superseded to B3511GS)

Note: Service Kits

$103.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton B3507

HEAD ASSEMBLY

Note: Service Kits

$

$

Currently unavailable

47

Briggs & Stratton B3508

CRANKCASE ASSEMBLY
(Superseded to B3508GS)

Note: Service Kits

$

$

Not available

48

Briggs & Stratton B3509

SPACER PLATE ASSEMBLY
(Superseded to B3509GS)

Note: Service Kits

$95.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B3480

COMPLETE HEAD ASSEMBLY

Note: Service Kits

$

$

Currently unavailable

50

Briggs & Stratton B3510

HIGH PRESSURE OUTLET ASSEMBLY
(Superseded to B3510GS)

Note: Service Kits

$39.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton B3513

CHECK VALVE ASSEMBLY, 6 pkg.
(Superseded to B3513GS)

Note: Service Kits

$

$

Not available

52

Briggs & Stratton B3479

UNLOADER SPINDLE ASSEMBLY
(Superseded to B3479GS)

Note: Service Kits

$50.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton B3478

PISTON SHOE ASSEMBLY
(Superseded to B3478GS)

Note: Service Kits

$37.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B3514

O-RING/SEAL KIT
(Superseded to B3514GS)

Note: Service Kits

$141.99

$

Usually ships in 2-12 days

0
