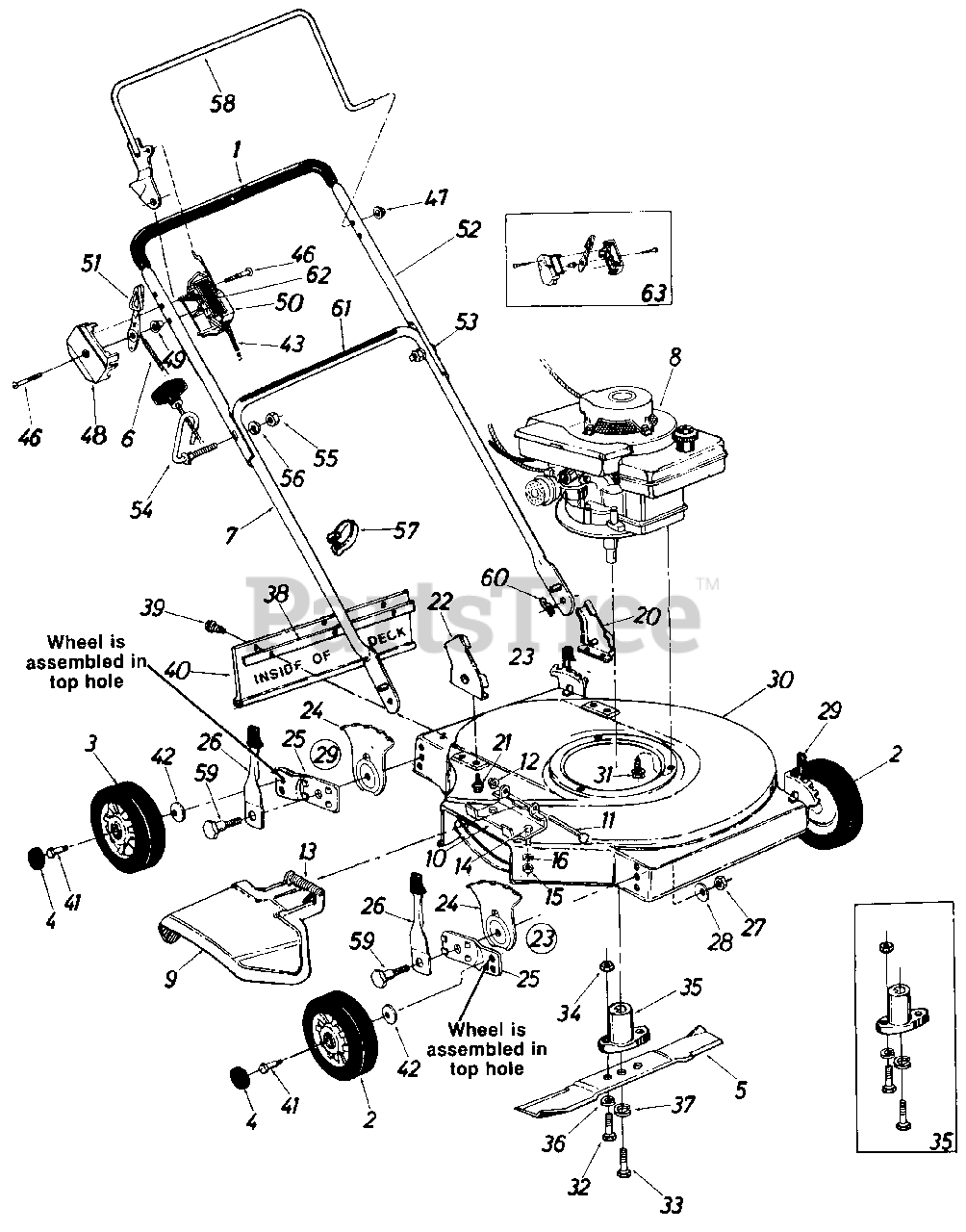

11702S - MTD Walk-Behind Mower (1985) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 734-0719

Front Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

3

MTD 734-0719

Rear Wheel Ass'y. Comp. 8 x 1.75

$

$

Not available

4

MTD 734-0720

Hub Cap

$

$

Not available

5

MTD 742-0123

20" Blade

$

$

Not available

6

MTD 746-0420

Throttle Wire 45"
(Superseded to 946-1115)

Note: (4 HP)

$28.99

$

In Stock, only 1 left!

0

7

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

8

4 H.P. Engine Tec. TVS105-53043

$

$

Not available

9

MTD 11683

Chute Deflector Ass'y. Comp

$

$

Not available

10

MTD 11130

Adapter Plate

$

$

Not available

11

MTD 711-0555

Pivot Pin

$

$

Not available

12

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-0253

Torsion Spring

$

$

Not available

14

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

15

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

16

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

20

MTD 12935

Handle Brk't. Ass'y. L.H.

$

$

Not available

21

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

22

MTD 12936

Handle Brk't. Ass'y. R.H.

$

$

Not available

23

MTD 14578

Height Adjuster Ass'y. Comp. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

24

MTD 15261

Index Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

25

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

26

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

27

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

28

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 10

0

29

MTD 14579

Height Adjuster Ass'y. Com p. L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

30

MTD 14920

20" Deck Ass'y. Comp.

$

$

Currently unavailable

31

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

32

MTD 710-0888

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 8)

$4.49

$

In Stock, Qty 5

0

33

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. Grade 5

$6.99

$

In Stock, Qty 7

0

34

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

35

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

36

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

37

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

38

MTD 14837

Retaining Strip

$

$

Currently unavailable

39

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-0583

Rear Flap Ass'y.

$

$

Not available

41

MTD 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

42

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

43

MTD 746-0477

Control Cable 43"
(Superseded to 946-0477A)

Note: (4 HP)

$

$

Not available

46

MTD 710-0796

Truss Mach. Self-Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

47

MTD 726-0135

Push Cap 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

48

MTD 731-0523

Control Panel Half

$

$

Not available

49

MTD 731-0524

Control Disc Pin

$

$

Not available

50

MTD 731-0526

Clutch Panel Half

$

$

Not available

51

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

MTD 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

53

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

54

MTD 710-0842

Rope Guide Bolt

$

$

Not available

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 726-0192

Cable Tie

$

$

Not available

58

MTD 14320

Control Handle Ass'y. R.H.

$

$

Not available

59

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

60

MTD 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

61

MTD 777-3455

Instruction Label Handle

$

$

Not available

62

MTD 777-3458

Control Label Throttle

$

$

Currently unavailable

63

MTD 753-0360

Kit Control Housing Comp.

$

$

Not available

MTD 8702-400-5

Hardware Pack

$

$

Currently unavailable
