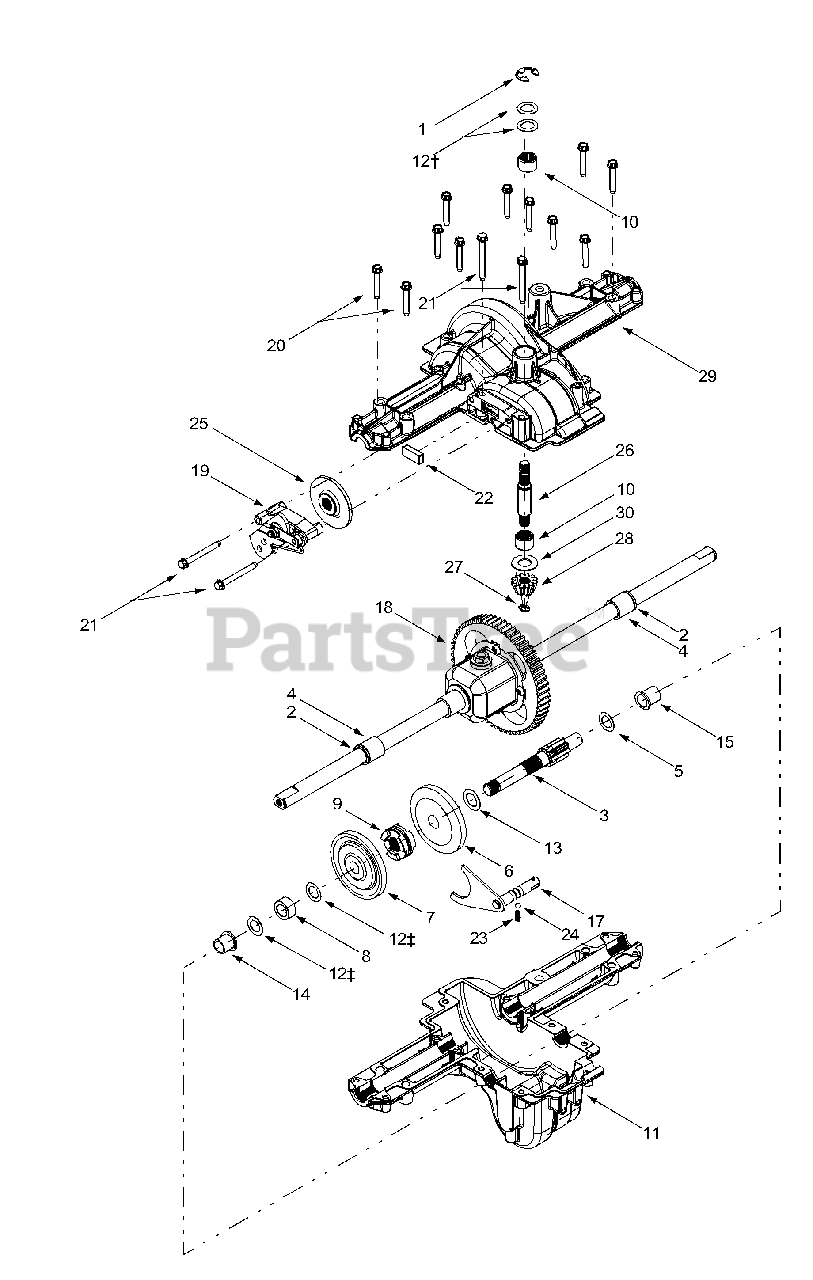

1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I011H - 999999) (2002) Transmission Parts Diagram

Lawn Tractor

Transmission Parts Diagram

  • Title

1

Cub Cadet 716-0231

E-ring, .75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 721-0338

Seal, .75 x 1.0 x .125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

3

Cub Cadet 711-1431

Drive Shaft

$131.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 741-0340

Sleeve Bearing, .75 x .1.0 x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

5

Cub Cadet 736-0495

Thrust Washer, 1.0 x .632 x .0

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet 717-1362

42-tooth Bevel Gear
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

7

Cub Cadet 717-1363

42-tooth Bevel Gear
(Superseded to 917-1363)

$51.99

$

In Stock, only 1 left!

0

8

Cub Cadet 750-1234

Spacer, .633 x 1.0 x .513

$

$

Not available

9

Cub Cadet 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

10

Cub Cadet 741-0525

Needle Bearing, .625 x .875
(Superseded to 941-0525)

$31.99

$

In Stock, only 1 left!

0

11

Cub Cadet 719-0394

Lower Housing

$177.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0336

Flat Washer, 5/8 x 1.0 x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

Cub Cadet 736-0337

Flat Washer, 5/8 x 1.0 x .040

$4.49

$

In Stock, Qty 9

0

Cub Cadet 736-0349

Flat Washer, 5/8 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0519

Flat Washer, .70 x 1.125 x .031

$5.49

$

In Stock, only 1 left!

0

14

Cub Cadet 741-0336

Flange Bearing, 5/8 x 3/4 x 3/4
(Superseded to 941-0336)

$11.99

$

In Stock, only 4 left!

0

15

Cub Cadet 741-0337

Flange Bearing, 5/8 x 3/4 x 15/16
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

?16

Cub Cadet 750-1238

Spacer, .635 x 1.0 x .27

$

$

Not available

17

Cub Cadet 611-0133

Detent Shaft Assembly

$

$

Not available

18

Cub Cadet 618-0424

Differential Assembly
(Superseded to 918-04097A)

$

$

Not available

19

Cub Cadet 661-0006

Brake Assembly
(Superseded to 961-0006)

$46.99

$

In Stock, only 1 left!

0

20

Cub Cadet 710-1325

Self-tapping Screw, 1/4-20 x 1.625

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-1206

Self-tapping Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

22

Cub Cadet 717-0678

Brake Pad
(Superseded to 917-0678)

$7.49

$

In Stock, Qty 5

0

23

Cub Cadet 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0862

Detent Ball

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

26

Cub Cadet 711-1430

Input Shaft

$

$

Not available

27

Cub Cadet 716-0108

Retaining Ring, .437

$5.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 717-1464

14-tooth Bevel Pinion

$22.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 719-0391A

Upper Housing
(Superseded to 953-04023)

$200.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0723

Thrust Washer, .635 x 1.25 x .042
(Superseded to 936-0337)

$4.49

$

In Stock, Qty 9

0

Cub Cadet 618-0551

Transmission Complete
(Superseded to 918-0551A)

$

$

Not available
