1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I011H - 999999) (2002) Steering & Front Axle Parts Diagram

Lawn Tractor

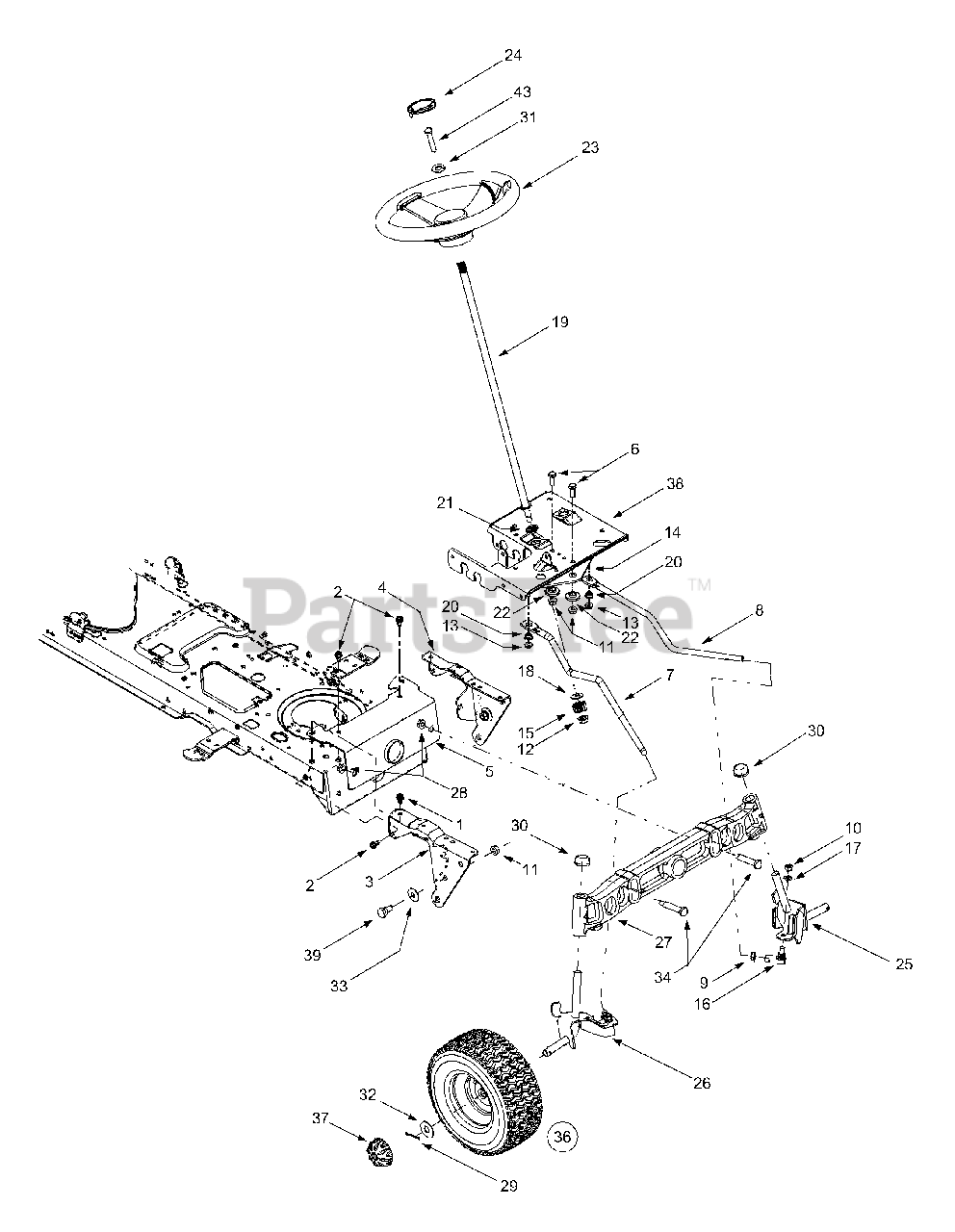

Steering & Front Axle Parts Diagram

  • Title

1

Cub Cadet 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Cub Cadet 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0726B-0637

USE 783-0726E-0637 BRACKET:PI - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0726B-0650

USE 783-0726E-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0726B-0665

USE 783-0726E-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0726B-0691

USE 783-0726E-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

Cub Cadet 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

Cub Cadet 783-0727A-0606

USE 783-0727D-0606 BRACKET:PI - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0727A-0650

USE 783-0727D-0650 BRACKET:PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0727A-0665

USE 783-0727D-0665 BRACKET:PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0727A-0691

USE 783-0727D-0691 BRACKET:PI - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Cub Cadet 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0728-0691

Pivot Bar Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0728-4008

Pivot Bar Bracket - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0728-0650

USE 783-0728B-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0728-0665

USE 783-0728B-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-1408

RH Drag Link

$

$

Not available

8

Cub Cadet 711-1655

LH Drag Link

$

$

Currently unavailable

9

Cub Cadet 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

Cub Cadet 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

Cub Cadet 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

Cub Cadet 731-2624

Steering Wheel, Soft Grip, Three Spoke

$

$

Not available

24

Cub Cadet 731-2625

Steering Wheel Cap, Round

$

$

Not available

25

Cub Cadet 638-0019A

LH Axle Assembly, .75 Diameter
(Superseded to 938-0019A)

$57.99

$

In Stock, Qty 10

0

26

Cub Cadet 638-0020A

RH Axle Assembly, .75 Diameter
(Superseded to 938-0020A)

$

$

Not available

27

Cub Cadet 719-0399B

Cast Iron Pivot Bar w/ Fittings, .75

$

$

Not available

28

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

36

Cub Cadet 634-0115

Wheel Assembly Complete, 15 x 6 x 6

Variations

Cub Cadet 634-0115-0911

WHEEL ASSEMBLY - Carlisle Gray (0911)

$

$

Not available

Cub Cadet 634-0115-0916

WHEEL ASSEMBLY - Kenda Gray (0916)

$

$

Not available

Cub Cadet 634-0115-0914

WHEEL ASSEMBLY - Cheng Gray (0914)

$

$

Not available

$

$

Cub Cadet 634-0051

Rim Only w/ Ball Bearing

Variations

Cub Cadet 634-0051-0629

RIM ASSEMBLY (6.0 x 4.5) - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 634-0051-0662

RIM ASSEMBLY (6.0 x 4.5) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 634-0051-0499

RIM ASSEMBLY (6.0 x 4.5) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 634-0051-0674

RIM ASSEMBLY (6.0 x 4.5) - YARDMAN YELLOW (0674)

$

$

Not available

$

$

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 734-1731

Tire Only, Square Shoulder

Variations

Cub Cadet 734-1731-0902

Turf Tire - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

Cub Cadet 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

37

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 783-0653E

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653E-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

Cub Cadet 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0643

Hex Bolt, 5/16-18x1

$6.99

$

In Stock, Qty 5

0
