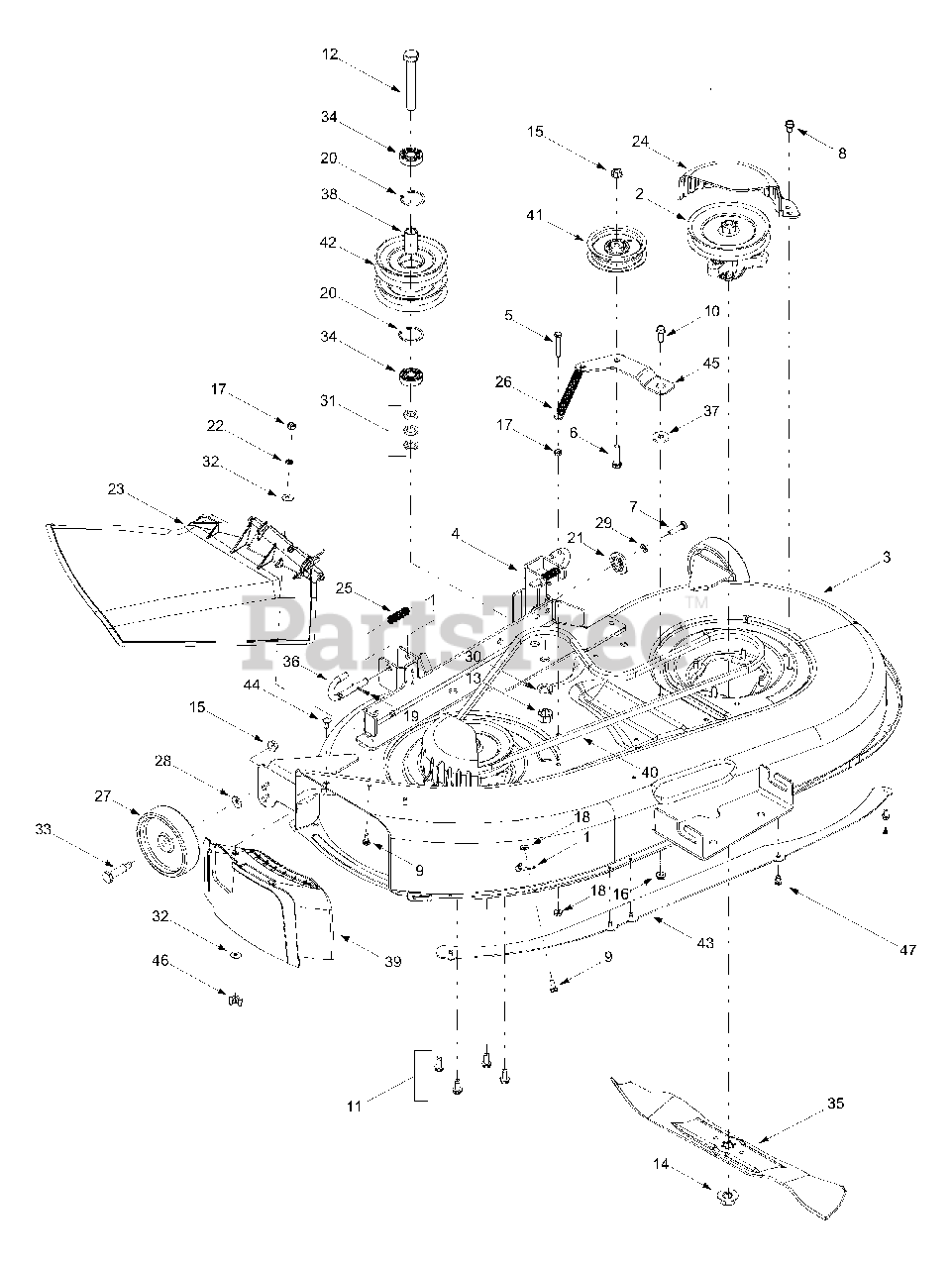

1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I011H - 999999) (2002) Deck Assembly Parts Diagram

Lawn Tractor

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 618-0574

Spindle Assembly, 5.75 Dia. w/ Fitting
(Superseded to 918-0574C)

$

$

Not available

Cub Cadet 756-0980

Pulley Only

$

$

Not available

3

Cub Cadet 683-0198E

42-inch Deck Assembly
(Superseded to 983-0198G)

Variations

Cub Cadet 683-0198E-0637

USE 983-0198G-0637 SHELL ASM- - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198E-0638

USE 983-0198G-0637 SHELL ASM- - MTD/TROY-BILT RED (0638)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198E-0650

USE 983-0198G-0637 SHELL ASM- - RED METALLIC (0650)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198E-0665

USE 983-0198G-0637 SHELL ASM- - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198E-0691

USE 983-0198G-0637 SHELL ASM- - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0198E-0716

USE 983-0198G-0637 SHELL ASM- - CUB YELLOW-99 (0716)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

Cub Cadet 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0650

USE 683-0254B-0650 BRACKET AS - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0665

USE 683-0254B-0665 BRACKET AS - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0520

Hex Cap Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 6

0

7

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3151

Hex Cap Screw, 5/8-18 x .875

$20.99

$

In Stock, Qty 12

0

13

Cub Cadet 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

18

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

22

Cub Cadet 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

24

Cub Cadet 731-2486

Belt Cover
(Superseded to 731-2486A)

$22.99

$

In Stock, only 1 left!

0

25

Cub Cadet 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

26

Cub Cadet 732-0470A

Extension Spring, .50 x 4.74
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

27

Cub Cadet 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0158

Lock Washer, 5/8

$4.49

$

In Stock, Qty 11

0

31

Cub Cadet 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

34

Cub Cadet 741-0524

Bearing, .625 x 1.574 x .470
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

35

Cub Cadet 742-0616

Three-in-one Blade, Star Center, 21.23"
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

36

Cub Cadet 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

37

Cub Cadet 748-0331

Shoulder Spacer, .625 x .324
(Superseded to 948-0331)

$

$

Not available

38

Cub Cadet 750-0932A

Spacer, .635 x .88 x 1.72
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

39

Cub Cadet 731-2363

Mulch Plug

$29.99

$

In Stock, only 4 left!

0

40

Cub Cadet 754-0498

Deck Belt
(Superseded to 954-0498)

$44.99

$

In Stock, Qty 8

0

41

Cub Cadet 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

Cub Cadet 756-1202

Double Pulley, 5.0

$95.99

$

In Stock, only 2 left!

0

43

Cub Cadet 783-1146A

Deck Skirt
(Superseded to 753-0884)

Variations

Cub Cadet 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 710-0134

Carriage Screw, , 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 783-1291

Idler Bracket
(Superseded to 783-1291A-0637)

Variations

Cub Cadet 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 3 left!

0

$12.99

$

In Stock, only 3 left!

0

46

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0
