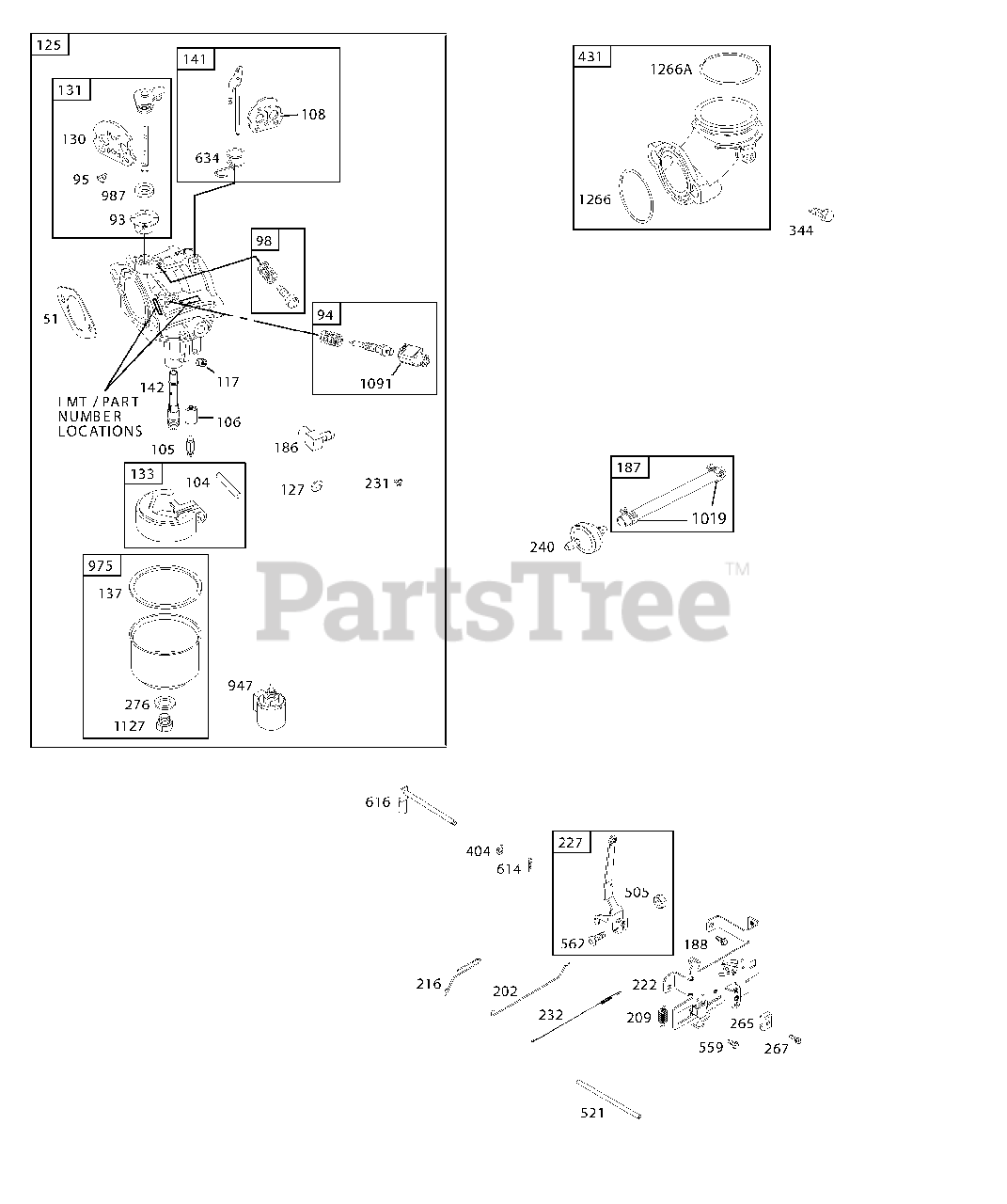

1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I011H - 999999) (2002) Carburetor & Fuel Filter Parts Diagram

Lawn Tractor

Carburetor & Fuel Filter Parts Diagram

  • Title
51

Cub Cadet BS-692137

Gasket-Intake

$3.49

$

In Stock, Qty 20+

0

93

Cub Cadet BS-690602

Bushing-Throttle Shaft

$9.49

$

Usually ships in 2-12 days

0

94

Cub Cadet BS-498030

Kit-Idle Mixture

$21.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-495800

Kit-Idle Speed

$10.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-691242

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

105

Cub Cadet BS-231855

Valve-Float Needle
(Superseded to BS-231855S)

$6.99

$

Usually ships in 2-12 days

0

106

Cub Cadet BS-690577

Seat-Inlet

$7.99

$

Usually ships in 2-12 days

0

108

Cub Cadet BS-692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-498978

Jet-Main Standard

$

$

Not available

125

Cub Cadet BS-694202

Carburetor (Primer System)
(Superseded to BS-790120)

$

$

Not available

127

Cub Cadet BS-695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

130

Cub Cadet BS-691750

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Cub Cadet BS-494379

Kit-Throttle Shaft
(Superseded to BS-790901)

$38.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

141

Cub Cadet BS-495931

Kit-Choke Shaft
(Superseded to BS-790902)

$33.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-697140

Nozzle-Carburetor

$

$

Not available

186

Cub Cadet BS-692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

187

Cub Cadet BS-691050

Line-Fuel
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

188

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, Qty 12

0

202

Cub Cadet BS-691841

Link-Mechanical

$9.49

$

In Stock, Qty 17

0

209

Cub Cadet BS-692208

Spring-Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 15

0

216

Cub Cadet BS-691840

Link-Choke

$8.99

$

In Stock, Qty 20+

0

222

Cub Cadet BS-694042

Bracket-Control
(Superseded to BS-597209)

$38.99

$

In Stock, Qty 20+

0

227

Cub Cadet BS-691374

Lever-Governor Control

$26.99

$

In Stock, only 3 left!

0

231

Cub Cadet BS-691636

Screw (Choke Valve)

$3.99

$

In Stock, only 2 left!

0

232

Cub Cadet BS-691842

Spring-Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 7

0

267

Cub Cadet BS-695134

Screw (Casing Clamp)
(Superseded to BS-792629)

$3.49

$

Usually ships in 2-12 days

0

276

Cub Cadet BS-692255

Washer-Sealing

$5.49

$

In Stock, Qty 20+

0

344

Cub Cadet BS-693675

Screw Cable Clamp

$3.99

$

In Stock, only 1 left!

0

404

Cub Cadet BS-691691

Washer (Governor Crank)

$3.99

$

In Stock, Qty 5

0

431

Cub Cadet BS-697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

521

Cub Cadet BS-690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

559

Cub Cadet BS-697561

Screw (Remote Choke Stop)

$3.99

$

In Stock, only 1 left!

0

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

614

Cub Cadet BS-691620

Pin-Cotter
(Superseded to BS-93306)

$

$

Not available

616

Cub Cadet BS-692012

Crank-Governor

$13.99

$

In Stock, only 2 left!

0

634

Cub Cadet BS-690802

Spring/Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

947

Cub Cadet BS-694393

Solenoid-Fuel

$81.99

$

In Stock, only 1 left!

0

975

Cub Cadet BS-495933

Bowl-Float

$

$

Not available

987

Cub Cadet BS-691326

Seal-Throttle Shaft

$5.49

$

Usually ships in 2-12 days

0

1019

Cub Cadet BS-95162S

Clamp-Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

1091

Cub Cadet BS-691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1127

Cub Cadet BS-695407

Screw (Float Bowl)

$4.49

$

In Stock, Qty 20+

0

1266

Cub Cadet BS-691917

Seal-O Ring (Intake Elbow)

$4.49

$

In Stock, Qty 20+

0

1266

Cub Cadet BS-697123

Seal-O Ring (Intake Elbow)

$5.99

$

In Stock, Qty 20+

0

1266A

UNKNOWN

$

$

Not available
