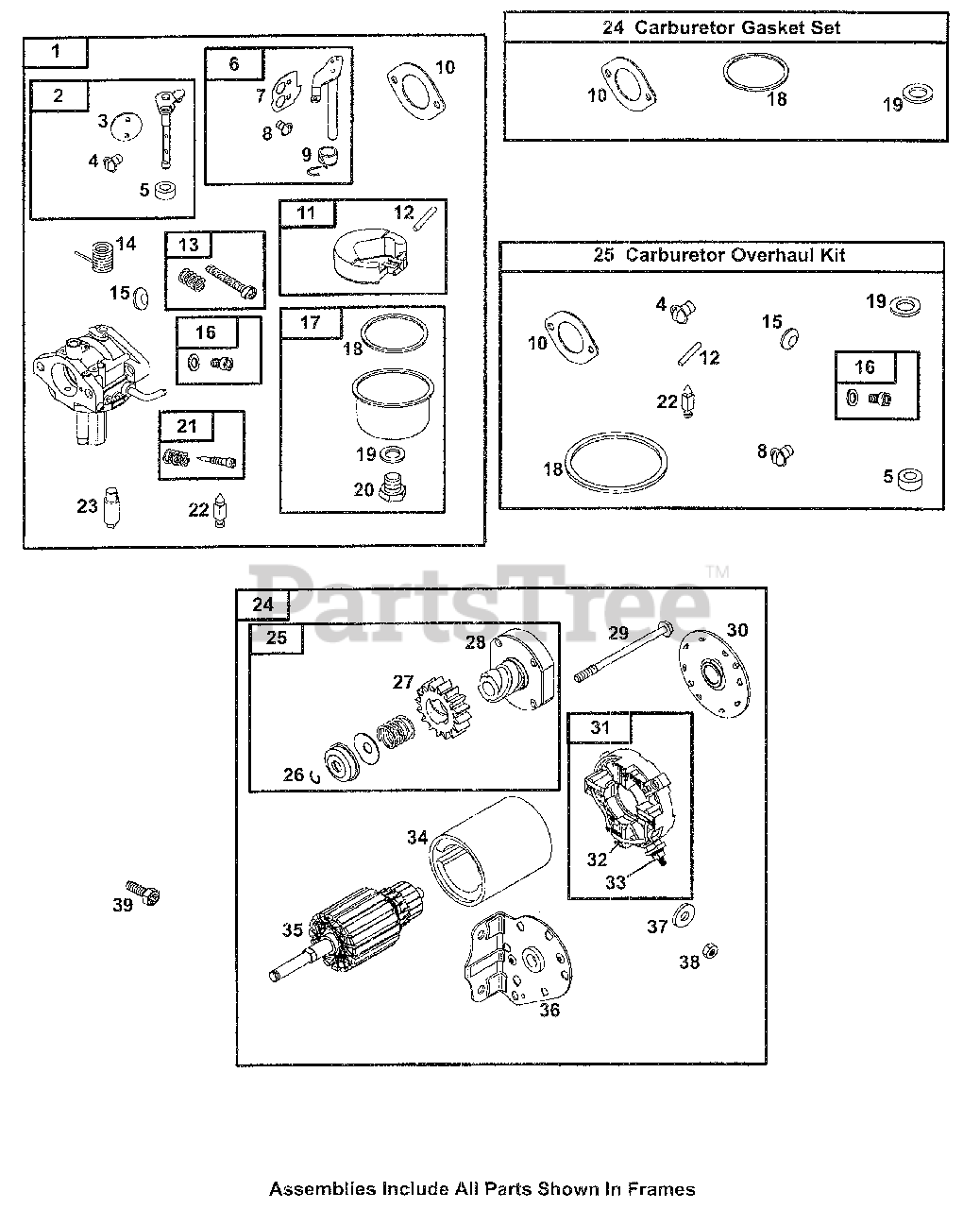

1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I010H - 1H311H) (2001) Starter & Carburetor Parts Diagram

Lawn Tractor

Starter & Carburetor Parts Diagram

  • Title

1

Cub Cadet BS-695412

Carb (choke-a-matic and manual choke)

$

$

Currently unavailable

2

Cub Cadet BS-695421

Throttle Shaft Kit

$39.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-695418

Throttle Valve

$8.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-690998

Throttle Shaft Seal

$7.99

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-695420

Choke Shaft Kit
(Superseded to BS-792777)

$32.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-695419

Choke Valve

$9.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-690718

Screw (Choke Valve)

$5.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-695414

Choke/Throttle Shaft Seal

$

$

Not available

10

Cub Cadet BS-692137

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-694914

Carburetor Float

$28.99

$

In Stock, Qty 8

0

12

Cub Cadet BS-694918

Float Hinge Pin

$7.49

$

In Stock, only 2 left!

0

13

Cub Cadet BS-695408

Idle Speed Kit

$13.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-695409

Choke Return Spring

$8.99

$

In Stock, only 1 left!

0

15

Cub Cadet BS-690727

Welch Plug

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet BS-695415

Main Jet

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-695416

Main Jet (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-695417

Float Bowl

$

$

Not available

18

Cub Cadet BS-695426

Float Bowl Gasket

$9.49

$

In Stock, Qty 20+

0

19

Cub Cadet BS-695410

Sealing Washer

$6.99

$

In Stock, Qty 15

0

20

Cub Cadet BS-695407

Float Bowl Screw

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet BS-695425

Idle Mixture Kit

$20.99

$

In Stock, only 2 left!

0

22

Cub Cadet BS-695424

Float Needle Valve
(Superseded to BS-696136)

$15.99

$

In Stock, Qty 20+

0

23

Cub Cadet BS-695423

Fuel Solenoid
(Superseded to BS-699915)

$79.99

$

In Stock, Qty 20+

0

24

Cub Cadet BS-693551

Starter Motor
(Superseded to BS-593934)

$131.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-693699

Starter Drive
(Superseded to BS-593934)

$131.99

$

In Stock, Qty 20+

0

26

Cub Cadet BS-691265

Retaining Ring

$5.49

$

In Stock, Qty 7

0

27

Cub Cadet BS-693713

Pinion Gear
(Superseded to BS-593935)

$26.99

$

In Stock, only 1 left!

0

28

Cub Cadet BS-692024

Drive Clutch

$21.99

$

In Stock, only 3 left!

0

29

Cub Cadet BS-690323

Bolt (Starter Motor)

$4.49

$

In Stock, Qty 7

0

30

Cub Cadet BS-691286

End Cap

$26.99

$

Usually ships in 2-12 days

0

31

Cub Cadet BS-691293

Brush Retainer

$29.99

$

In Stock, Qty 6

0

32

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

33

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-691427

Starter Housing

$

$

Not available

35

Cub Cadet BS-692034

Starter Armature

$82.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-691429

Drive Cap
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-691261

Washer (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

38

Cub Cadet BS-691029

Nut (Brush Retainer)

$5.49

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0
