1170 (13CD608G101) - Cub Cadet Lawn Tractor (SN: 1I010H - 1H311H) (2001) Engine Parts Diagram

Lawn Tractor

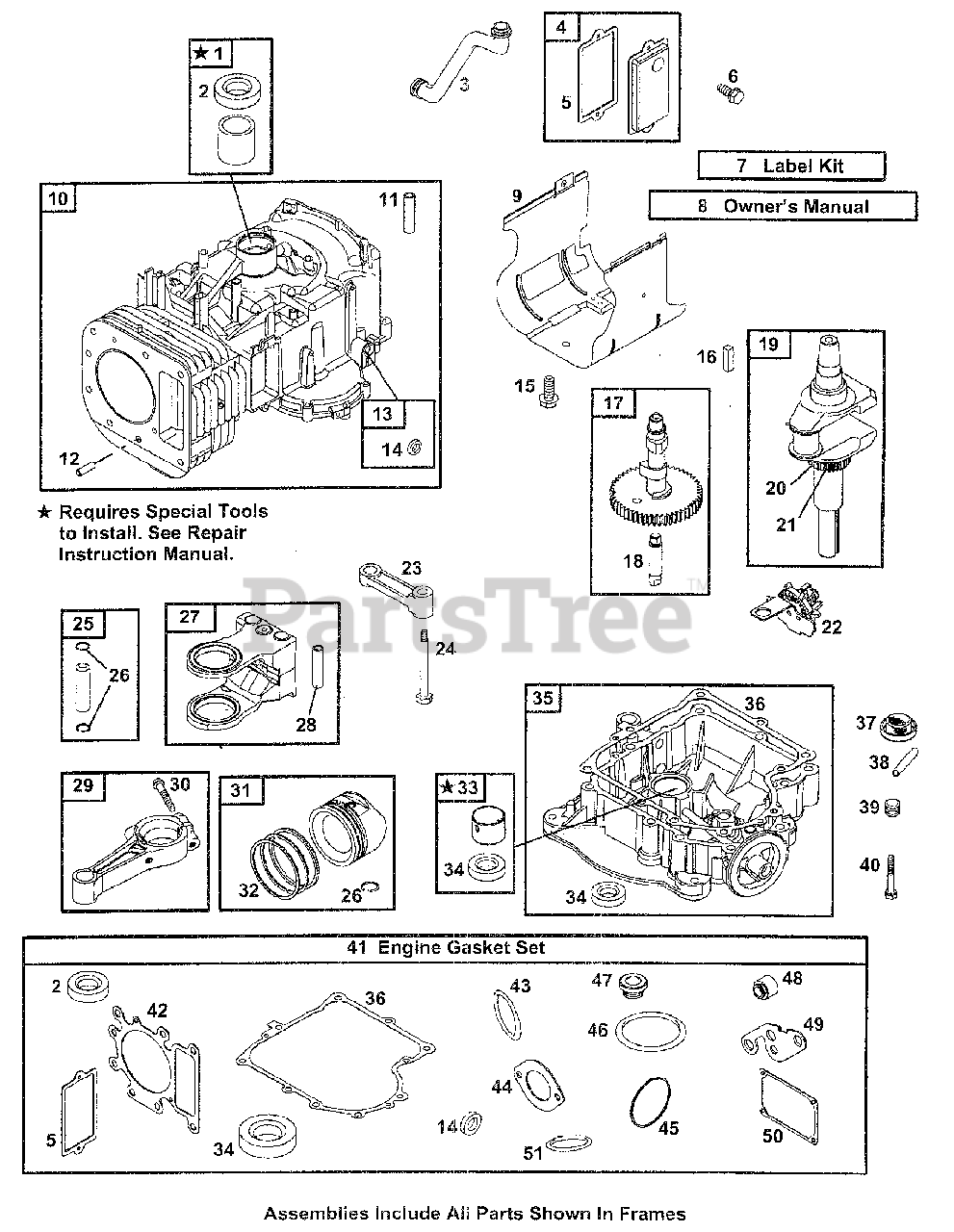

Engine Parts Diagram

  • Title

1

Cub Cadet BS-399265

Bushing/Seal Kit (Magneto Side)
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

2

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-691328

Breather Tube

$15.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-495735

Breather Assembly

$63.99

$

In Stock, Qty 5

0

5

Cub Cadet BS-27803

Breather Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-691666

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

7

Cub Cadet BS-690180

Label Kit

$19.99

$

Usually ships in 2-12 days

0

8

Owner's Manual

$

$

Not available

9

Cub Cadet BS-690499

Cylinder Shield

$

$

Not available

10

Cub Cadet BS-690156

Cylinder Assembly

$451.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-691239

Counterweight Pin

$8.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-690959

Locating Pin

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-491986

Governor Crank Bushing

$

$

Not available

14

Cub Cadet BS-692407

Governor Shaft Seal

$7.99

$

In Stock, Qty 8

0

15

Cub Cadet BS-691003

Screw (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

16

Cub Cadet BS-222698

Flywheel Key
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

17

Cub Cadet BS-693450

Camshaft
(Superseded to BS-84005207)

$157.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BS-693784

Pump Shaft

$

$

Not available

19

Cub Cadet BS-690136

Crankshaft

$

$

Not available

20

Cub Cadet BS-691284

Timing Gear

$10.99

$

Usually ships in 2-12 days

0

21

Cub Cadet BS-691639

Timing Key

$4.49

$

In Stock, Qty 5

0

22

Cub Cadet BS-691968

Governor/Oil Slinger

$37.99

$

In Stock, Qty 20+

0

23

Cub Cadet BS-691714

Counterweight Link

$

$

Not available

24

Cub Cadet BS-691096

Screw (Counterweight)

$5.49

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-498319

Piston Pin (Standard)

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-498320

Piston Pin (.005 O.S.)

$19.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-691299

Piston Pin Lock

$4.99

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-692423

Counterweight

$222.99

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-691239

Counterweight Pin

$8.99

$

In Stock, only 1 left!

0

29

Cub Cadet BS-692419

Connecting Rod (Standard)

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692420

Connecting Rod (.020 O.S.)

$

$

Not available

30

Cub Cadet BS-692852

Screw (Connecting Rod)
(Superseded to BS-791118)

$4.99

$

In Stock, only 4 left!

0

31

Cub Cadet BS-692271

Piston Assembly (Standard)

$

$

Not available

Cub Cadet BS-692272

Piston Assembly (.010 O.S.)

$63.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692273

Piston Assembly (.020 O.S.)

$

$

Not available

Cub Cadet BS-692274

Piston Assembly (.030 O.S.)

$106.99

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-690162

Ring Set (Standard)
(Superseded to BS-594437)

$52.99

$

In Stock, Qty 14

0

Cub Cadet BS-690164

Ring Set (.010 O.S.)

$

$

Not available

Cub Cadet BS-690166

Ring Set (.020 O.S.)

$36.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-690168

Ring Set (.020 O.S.)

$39.99

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-490666

Bushing/Seal Kit (PTO Side)

$

$

Currently unavailable

34

Cub Cadet BS-291675

Oil Seal
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet BS-693582

Engine Sump

$288.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-692226

Crankcase Gasket (.015 Thick, Std)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-692406

Crankcase Gasket (.005 Thick)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-692405

Crankcase Gasket (.009 Thick)

$6.49

$

In Stock, only 1 left!

0

37

Cub Cadet BS-690770

Oil Pump Screen

$

$

Not available

38

Cub Cadet BS-690528

Oil Pump Tube

$8.49

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-691680

Oil Drain Plug

$5.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-692125

Screw (Engine Sump)

$4.99

$

In Stock, only 4 left!

0

41

Cub Cadet BS-690189

Engine Gasket Set

$86.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-692410

Cylinder Head Gasket
(Superseded to BS-794114)

$20.99

$

In Stock, Qty 20+

0

43

Cub Cadet BS-691917

O-Ring Seal (Air Cleaner Base)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet BS-692137

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

45

Cub Cadet BS-692138

O-Ring Seal (Intake Manifold)

$5.49

$

In Stock, Qty 19

0

46

Cub Cadet BS-690589

O-Ring Seal (Oil Pump Cover)

$8.99

$

In Stock, Qty 20+

0

47

Cub Cadet BS-281370

Dipstick Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

48

Cub Cadet BS-690968

Valve Seal

$10.99

$

In Stock, Qty 20+

0

49

Cub Cadet BS-691317

Oil Adapter Gasket

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-272475

Rocker Cover Gasket
(Superseded to BS-272475S)

$6.49

$

In Stock, Qty 20+

0

51

Cub Cadet BS-691870

Dipstick/Tube Seal

$4.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-692707

Short Block
(Superseded to BS-697762)

$597.99

$

Usually ships in 2-12 days

0
