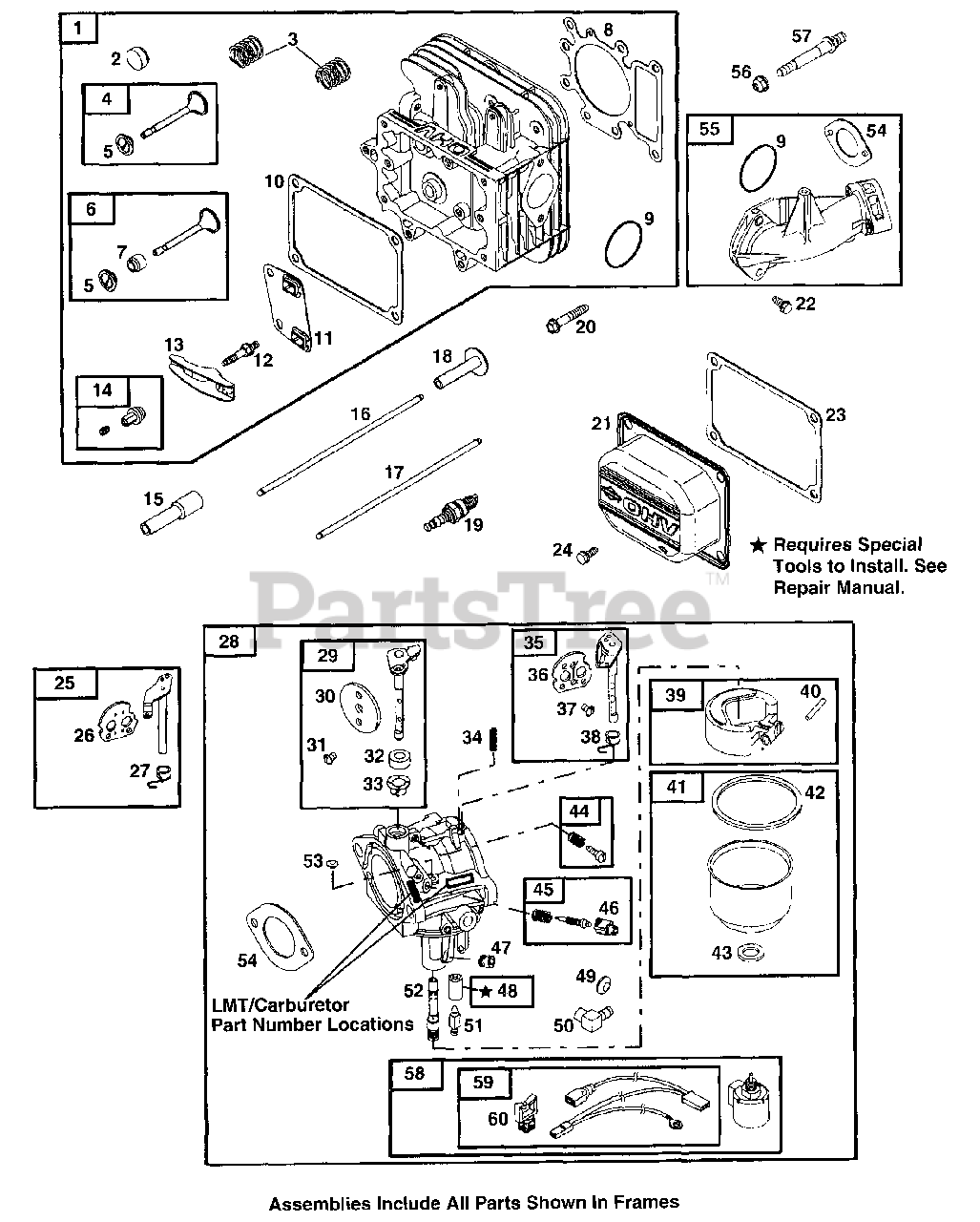

1170 (13BD608G101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Engine (Single) Carburetor & Head (Model 1170) Parts Diagram

Lawn Tractor

Engine (Single) Carburetor & Head (Model 1170) Parts Diagram

  • Title

1

Cub Cadet BS-690188

Cylinder Head
(Superseded to BS-796026)

$226.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-691843

Valve Cap

$8.49

$

In Stock, Qty 20+

0

3

Cub Cadet BS-691279

Valve Spring

$5.99

$

In Stock, Qty 10

0

4

Cub Cadet BS-495856

Exhaust Valve
(Superseded to BS-792868)

$35.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-691752

Valve Retainer
(Superseded to BS-499586)

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet BS-495857

Intake Valve
(Superseded to BS-791935)

$27.99

$

Usually ships in 2-12 days

0

7

Cub Cadet BS-690868

Valve Seal

$

$

Currently unavailable

8

Cub Cadet BS-692410

Cylinder Head Gasket
(Superseded to BS-794114)

$20.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-692138

O-Ring Seal (Intake Manifold)

$5.49

$

In Stock, Qty 18

0

10

Cub Cadet BS-272475

Rocker Cover Gasket
(Superseded to BS-272475S)

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-690822

Push Rod Guide

$9.49

$

In Stock, only 1 left!

0

12

Cub Cadet BS-691095

Stud (Rocker Arm)

$7.99

$

In Stock, Qty 20+

0

13

Cub Cadet BS-691751

Rocker Arm

$9.49

$

Usually ships in 2-12 days

0

14

Cub Cadet BS-691986

Rocker Arm Adjuster

$11.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-691909

Sparkplug Boot

$4.99

$

In Stock, Qty 5

0

16

Cub Cadet BS-692003

Pushrod (Intake)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet BS-692011

Pushrod (Exhaust)

$9.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-690564

Valve Tappet

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-491055

Sparkplug
(Superseded to 759-3336)

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet BS-690360

Screw (Cylinder Head)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet BS-692492

Rocker Arm Cover
(Superseded to BS-797421)

$35.99

$

In Stock, only 2 left!

0

22

Cub Cadet BS-691148

Screw (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

23

Cub Cadet BS-272475

Rocker Cover Gasket
(Superseded to BS-272475S)

$6.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-690960

Screw (Rocker Arm Cover)
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

25

Cub Cadet BS-495931

Choke Shaft Kit
(Superseded to BS-790902)

Note: (LMT 153, 154)

$33.99

$

In Stock, only 1 left!

0

26

Cub Cadet BS-692344

Choke Valve

Note: (LMT 153, 154)

$8.49

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-690802

Spring/Seal Assy (Choke A Matic)

$9.49

$

Usually ships in 2-12 days

0

28

Cub Cadet BS-690194

Carburetor
(Superseded to BS-799727)

$

$

Not available

29

Cub Cadet BS-494379

Throttle Shaft Kit
(Superseded to BS-790901)

$38.99

$

In Stock, only 1 left!

0

30

Cub Cadet BS-691750

Throttle Valve

$9.49

$

In Stock, only 1 left!

0

31

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

32

Cub Cadet BS-691326

Throttle Shaft Seal

$5.49

$

Usually ships in 2-12 days

0

33

Cub Cadet BS-690602

Throttle Shaft Bushing

$9.49

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0

35

Cub Cadet BS-495097

Choke Shaft Kit
(Superseded to BS-790905)

Note: (LMT 155, 156)

$45.99

$

Usually ships in 2-12 days

0

36

Cub Cadet BS-690464

Choke Valve

Note: (LMT 155, 156)

$8.49

$

Usually ships in 2-12 days

0

37

BS 691636

Screw (Choke Valve)

$

$

Not available

38

Cub Cadet BS-690801

Spring/Seal Assy

Note: (LMT 155, 156)

$8.49

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-494381

Carburetor Float

$13.99

$

In Stock, only 4 left!

0

40

Cub Cadet BS-690525

Float Hinge Pin

$4.99

$

In Stock, only 1 left!

0

41

Cub Cadet BS-495933

Float Bowl

$

$

Not available

42

Cub Cadet BS-281165

Float Bowl Gasket
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

43

Cub Cadet BS-692255

Sealing Washer

$5.49

$

In Stock, Qty 20+

0

44

Cub Cadet BS-495800

Idle Speed Kit

$10.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-498030

Idle Mixture Kit

$21.99

$

Usually ships in 2-12 days

0

46

Cub Cadet BS-691333

Limiter Cap

$9.49

$

In Stock, only 1 left!

0

47

Cub Cadet BS-692408

Main Jet (Standard)

$17.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-692411

Main Jet (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-690577

Inlet Seat (Gravity Feed)

$7.99

$

In Stock, only 3 left!

0

Cub Cadet BS-691780

Inlet Seat (Pump Feed)

$10.99

$

In Stock, only 2 left!

0

49

Cub Cadet BS-695005

Welch Plug

$4.99

$

In Stock, only 1 left!

0

50

Cub Cadet BS-692317

Hose Connector

$6.49

$

In Stock, Qty 20+

0

51

Cub Cadet BS-231855

Float Needle Valve
(Superseded to BS-231855S)

$6.99

$

Usually ships in 2-12 days

0

52

Cub Cadet BS-692412

Carburetor Nozzle

$30.99

$

In Stock, only 3 left!

0

53

Cub Cadet BS-695005

Welch Plug

$4.99

$

In Stock, only 1 left!

0

54

Cub Cadet BS-692137

Intake Gasket

$3.49

$

In Stock, Qty 20+

0

55

Cub Cadet BS-690193

Intake Manifold
(Superseded to BS-796180)

$43.99

$

Usually ships in 2-12 days

0

56

Cub Cadet BS-690958

Nut (Carburetor)

$3.49

$

In Stock, only 3 left!

0

57

Cub Cadet BS-690227

Stud (Carburetor)

$7.99

$

In Stock, Qty 6

0

58

Cub Cadet BS-497672

Fuel Solenoid
(Superseded to BS-692734)

$102.99

$

In Stock, Qty 7

0

59

Cub Cadet BS-692037

Wiring Harness

$35.99

$

In Stock, only 1 left!

0

60

Cub Cadet BS-691335

Wire Clip

$4.99

$

Usually ships in 2-12 days

0
