1170 (13BD608G101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Drive System & Rear Wheels Parts Diagram

Lawn Tractor

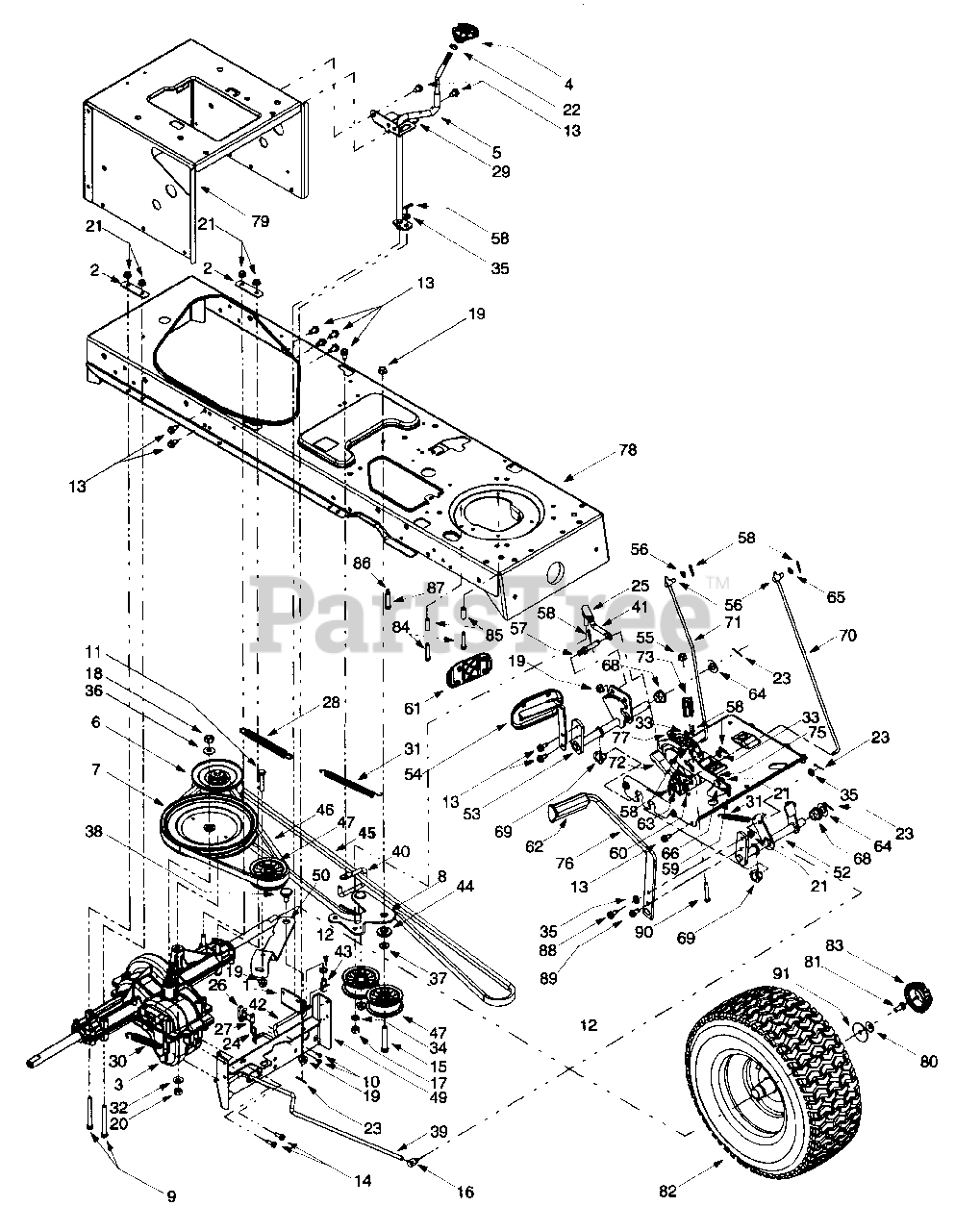

Drive System & Rear Wheels Parts Diagram

  • Title

1

Cub Cadet 783-1015

Shift Lever Support
(Superseded to 783-1015-0637)

Variations

Cub Cadet 783-1015-0637

BRACKET-SHFT LVR S - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 17840

Transaxle Mounting Bracket
(Superseded to 17840-0637)

Variations

Cub Cadet 17840-0637

Trans Mounting Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0307C

Single-speed Transmission Assembly
(Superseded to 918-0551A)

$

$

Not available

4

Cub Cadet 631-0009

Shifter Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

5

Cub Cadet 647-0045

Shift Lever

$

$

Not available

6

Cub Cadet 656-0048

Variable-speed Pulley Assembly
(Superseded to 956-0048)

$

$

Not available

7

Cub Cadet 656-0051A

Transmission Pulley, 8.5 x .5-36

$

$

Not available

8

Cub Cadet 683-0251

Double-idler Bracket

$

$

Not available

9

Cub Cadet 710-0189

Hex Cap Screw, 5/16-18 x 3

$6.49

$

In Stock, Qty 5

0

10

Cub Cadet 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0272

Flat Washer, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3011

Hex Cap Screw, 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

17

Cub Cadet 712-0241

Hex Nut, 3/8-24

$4.49

$

In Stock, Qty 13

0

18

Cub Cadet 712-0378

Hex Nut, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0798

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 16

0

23

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

24

Cub Cadet 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 18

0

25

Cub Cadet 723-3018

Ball Joint
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

26

Cub Cadet 725-1644

Short Spring Switch

$9.99

$

In Stock, Qty 11

0

27

Cub Cadet 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

28

Cub Cadet 732-0384

Extension Spring, .62 Dia. x 6.12
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

29

Cub Cadet 732-0525

Compression Spring Clip

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 732-0716

Extension Spring, .59 OD x 4
(Superseded to 732-0716D)

$13.99

$

In Stock, only 1 left!

0

31

Cub Cadet 732-0963

Extension Spring, .50 Dia. x 6.37

Note: (hooks to flange, 783-0650, in frame)

$9.99

$

In Stock, only 4 left!

0

32

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

34

Cub Cadet 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .602

$3.99

$

In Stock, Qty 12

0

37

Cub Cadet 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 1 left!

0

38

Cub Cadet 738-0322

Shoulder Screw, .625 x .217
(Superseded to 738-0322A)

$6.99

$

In Stock, only 3 left!

0

39

Cub Cadet 747-1122

Brake Rod

$

$

Not available

40

Cub Cadet 747-1123A

Belt Guard

$

$

Not available

41

Cub Cadet 747-1127

Idler Adjustment Rod, 3/8

$42.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-1156

Shift Rod

Note: Refer to 753-0868

$

$

Not available

42

Cub Cadet 783-0637

Shift Lever Support

Note: Not shown, Refer to 753-0868

Variations

Cub Cadet 783-0637-0637

SHIFT LINK - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 783-0714

Adjustable Shift Bracket

Note: Not shown, Refer to 753-0868

$

$

Not available

43

Cub Cadet 711-0736

Adjustment Ferrule, 1/4-20 x 1.0

$13.99

$

In Stock, only 2 left!

0

44

Cub Cadet 748-0372

Shoulder Spacer, .38 ID

$

$

Currently unavailable

45

Cub Cadet 754-0467

Variable-speed Belt
(Superseded to 954-0467A)

$50.99

$

In Stock, Qty 20+

0

46

Cub Cadet 754-0468

Drive Belt
(Superseded to 954-0468)

$30.99

$

In Stock, Qty 13

0

47

Cub Cadet 756-0981

Flat Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

49

Cub Cadet 783-0667A

Transmission Torque Bracket
(Superseded to 783-0667A-0637)

Variations

Cub Cadet 783-0667A-0637

BRACKET-TRANS TORQUE - POWDER BLACK (0637)

$

$

Not available

$

$

50

Cub Cadet 783-0669

Idler Bracket
(Superseded to 783-0669-0637)

Variations

Cub Cadet 783-0669-0637

Idler Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

$20.99

$

In Stock, only 1 left!

0

52

Cub Cadet 647-0031

Brake Control Assembly
(Superseded to 753-05606)

$

$

Not available

53

Cub Cadet 647-0032

Speed Control Assembly
(Superseded to 647-0032A-0637)

$

$

Not available

54

Cub Cadet 683-0266

Drive Pedal Assembly

$

$

Not available

55

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

56

Cub Cadet 711-0736

Ferrule, 1/4-20

$13.99

$

In Stock, only 2 left!

0

57

Cub Cadet 711-1363

Pin, 3/8-16 x 2.43

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 732-0437

Compression Spring, .34 OD x 1.0

$10.99

$

In Stock, only 1 left!

0

60

Cub Cadet 732-0955

Extension Spring, .50 OD x 1.41

$9.99

$

In Stock, only 1 left!

0

61

Cub Cadet 735-0662

Drive Pedal Pad

$11.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 735-3049

Brake Pedal Pad
(Superseded to 735-3049A)

$12.99

$

In Stock, only 1 left!

0

63

Cub Cadet 736-0140

Flat Washer, .281 x .5 x .0625

$7.49

$

In Stock, Qty 7

0

64

Cub Cadet 736-0187

Flat Washer, .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 736-0204

Flat Washer, .344 x .062 x .03

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 738-0507B

Shoulder Screw, .5 x .434

$4.49

$

In Stock, only 4 left!

0

68

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

69

Cub Cadet 741-3065A

Split Hex Flange Bearing
(Superseded to 741-3065B)

$8.49

$

In Stock, Qty 11

0

70

Cub Cadet 747-1137

Cruise Control Rod

$

$

Not available

71

Cub Cadet 747-1138

Brake Lock Control Rod

$

$

Not available

72

Cub Cadet 748-0413

Cruise Latch

$32.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 748-0415A

Spacer, 5/16 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

75

Cub Cadet 783-0732

Drive Lockout Bracket
(Superseded to 783-0732A)

$34.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 783-0773

Brake Pedal

Variations

Cub Cadet 783-0773-0498

Service Kit - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0773-0637

Service Kit - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0773-0650

Service Kit - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0773-0665

Service Kit - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0773-0691

Service Kit - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0773-0716

Service Kit - CUB YELLOW-99 (0716)

$

$

Not available

$

$

77

Cub Cadet 783-0780A

Neutral Return Bracket
(Superseded to 753-04872)

Variations

Cub Cadet 783-0780A-0637

USE 753-04872 KIT-NEUT RTN BR - POWDER BLACK (0637)

$

$

Not available

$

$

78

Cub Cadet 683-0304

Lower Frame Assembly

Variations

Cub Cadet 683-0304-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0304-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0304-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0304-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-0304-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

79

Cub Cadet 783-1031

Hitch Plate

Variations

Cub Cadet 783-1031-0637

UPPER HITCH PLATE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1031-0650

UPPER HITCH PLATE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-1031-0665

UPPER HITCH PLATE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-1031-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-1031-0716

UPPER HITCH PLATE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

80

Cub Cadet 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

81

Cub Cadet 710-0627

Hex Cap Screw, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 634-0177

Wheel Assembly Complete

Note: 20 x 10 x 8

Variations

Cub Cadet 634-0177-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$473.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$473.99

$

In Stock, only 1 left!

0

Cub Cadet 634-0177-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0991

WHEEL ASM-COMPLETE - Carlisle White (0991)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0994

USE 634-0177-0991 WHEEL ASM-C - Cheng White (0994)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-4009

USE 634-0177-0991 WHEEL ASM-C - TEE WHITE (4009)

$357.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0177-0961

WHEEL ASM-COMPLETE - Carlisle Gray (0961)

$

$

Not available

$384.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-1675

Wheel Assembly Complete

Note: 20 x 8 x 8

Variations

Cub Cadet 734-1675-0915

USE 634-0104-0911 WHEEL ASSY - Duro Gray (0915)

$144.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1675-0911

WHEEL ASSY 20 X 8 - Carlisle Gray (0911)

$447.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1675-0945

USE 634-0104-0941 WHEEL ASSY - Duro Yellow (0945)

$509.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1675-0912

WHEEL ASSEMBLY W/TURF TIRE 20 x 8 x 8 - Dico Gray (0912)

$

$

Not available

Cub Cadet 734-1675-0914

WHEEL ASSY 20 X 8 - Cheng Gray (0914)

$

$

Not available

Cub Cadet 734-1675-0931

WHEEL ASSY 20 X 8 - Carlisle Beige (0931)

$

$

Not available

Cub Cadet 734-1675-0941

WHEEL ASSY W/TIRE - Carlisle Yellow (0941)

$

$

Not available

Cub Cadet 734-1675-0944

WHEEL ASSEMBLY W/TURF TIRE 20 x 8 x 8YELLOW-GREENBALL - Cheng Yellow (0944)

$

$

Not available

Cub Cadet 734-1675-0981

WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

Cub Cadet 734-1675-0985

WHEEL ASSEMBLY W/TURF TIRE 20 x 8 x 8 - Duro Green (0985)

$

$

Not available

$420.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 634-0070

Rim Only
(Superseded to 634-04369)

Note: Not Shown

Variations

Cub Cadet 634-0070-4009

USE 934-0070-4009 WHEEL RIM - TEE WHITE (4009)

$154.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0070-0499

USE 934-0070-0499 WHEEL RIM - CUB BEIGE (0499)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0070-0674

WHEEL RIM - YARDMAN YELLOW (0674)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0070-0629

USE 934-0070-0662 WHEEL RIM - SILVER FLAKE (0629)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0070-0662

USE 934-0070-0662 WHEEL RIM - OYSTER GRAY (0662)

$165.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0070-0688

USE 934-0070-0662 WHEEL RIM - SPRING GREEN (0688)

$165.99

$

Usually ships in 3-6 days

0

$134.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 734-1873

Tire Only

Note: Not Shown, 20 x 10 x 8, Square Shoulder

Variations

Cub Cadet 734-1873-0901

Tire, 20 X 10 X 8 - Carlisle (0901)

$106.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1873-0904

Tire, 20 X 10 X 8 - Cheng (0904)

$106.99

$

Usually ships in 3-6 days

0

$246.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-1730

Tire Only

Note: Not Shown, 20 x 8 x 8, Square Shoulder

Variations

Cub Cadet 734-1730-0901

Tire, 20 X 8 X 8 - Carlisle (0901)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0904

Tire, 20 X 8 X 8 - Cheng (0904)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

Cub Cadet 734-1730-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1730-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

$99.99

$

In Stock, only 1 left!

0

83

Cub Cadet 731-2290A

Hub Cap
(Superseded to 731-2290B)

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

84

Cub Cadet 710-0778

Self-tapping Screw, 1/4-20 x 1.5

$4.49

$

In Stock, only 1 left!

0

85

Cub Cadet 750-0556

Spacer

$

$

Currently unavailable

86

Cub Cadet 710-1026

Self-tapping Screw, 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

87

Cub Cadet 750-0768

Spacer

$

$

Not available

88

Cub Cadet 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

89

Cub Cadet 710-1650

Self-tapping Screw, 5/16-18 x .875

$4.99

$

In Stock, Qty 20+

0

90

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

91

Cub Cadet 736-0430

Flat Washer, .350 x 1.59 x .062

$4.49

$

In Stock, Qty 10

0

Cub Cadet 783-0653B

Stearing Support Bracket
(Superseded to 783-04612-0637)

Note: Not shown

$89.99

$

In Stock, only 3 left!

0

Cub Cadet OEM-190-916

Tire Chains
(Superseded to 490-241-0024)

Note: For 20 x 10 x 8 tire (must be used on this model); Not Shown

$96.99

$

Usually ships in 3-6 days

0
