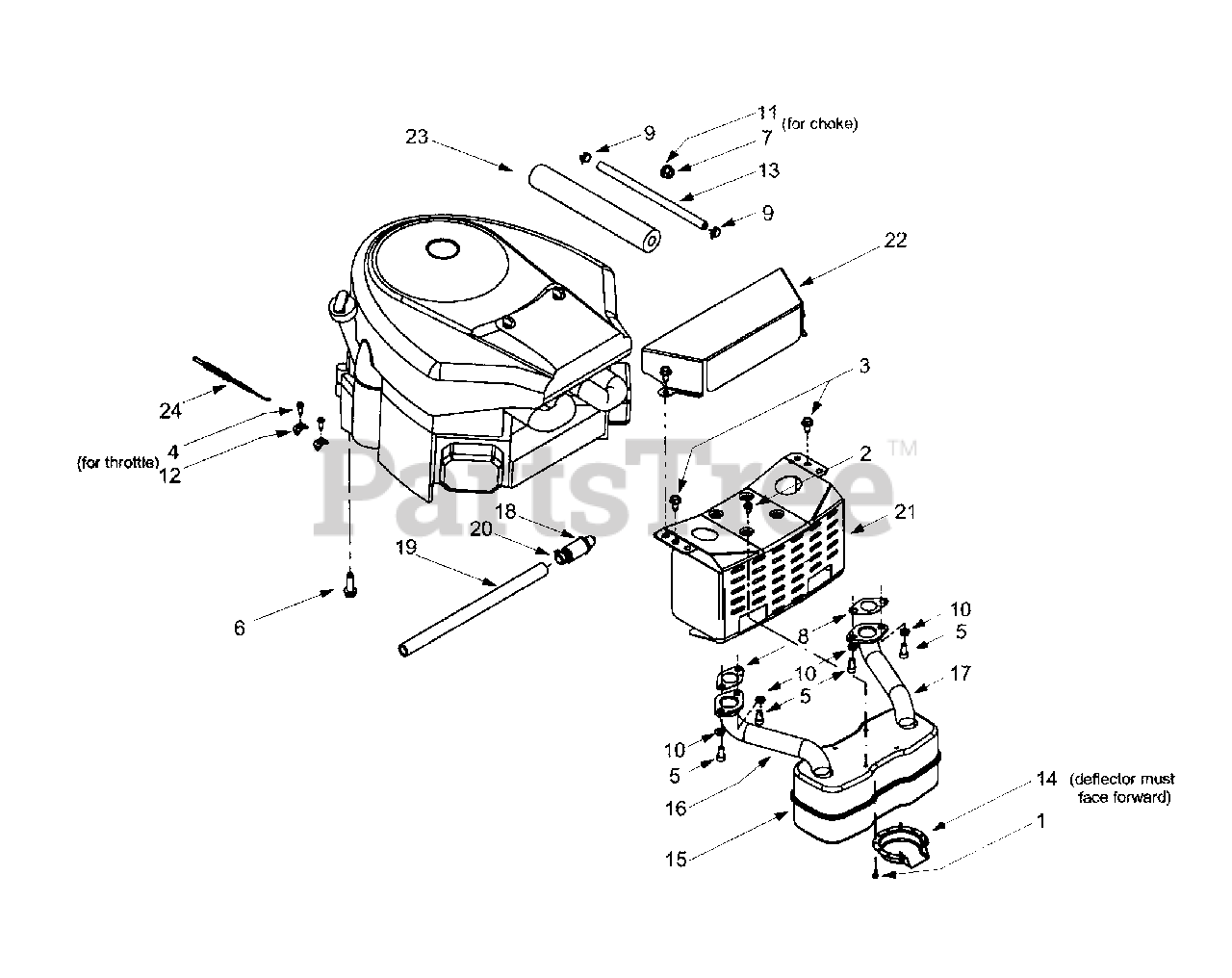

1170 (13BD608G101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Briggs & Stratton Industrial Plus Twin Parts Diagram

Lawn Tractor

Briggs & Stratton Industrial Plus Twin Parts Diagram

  • Title
1

Cub Cadet 710-0227

Self-tapping Screw, #8-18 x.5

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 721-0460

Exhaust Gasket
(Superseded to 721P0460)

Note: (Industrial Plus Twin)

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0300

Flat Washer, .406 x 875 x .059

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

13

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Cub Cadet 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 6

0

15

Cub Cadet 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

Cub Cadet 751-0650

RH Exhaust Pipe
(Superseded to 751-0650B)

Note: (Industrial Plus Twin)

$63.99

$

In Stock, only 1 left!

0

17

Cub Cadet 751-0651

LH Exhaust Pipe
(Superseded to 751-0651B)

Note: (Industrial Plus Twin)

$60.99

$

In Stock, only 1 left!

0

18

Cub Cadet 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

Cub Cadet 751-3142

Oil Drain Cap

$4.49

$

In Stock, only 4 left!

0

21

Cub Cadet 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Cub Cadet 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

Cub Cadet 783-0625B

Engine Heat Shield
(Superseded to 783-0625C)

$111.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 722-0263

Foam
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$16.99

$

In Stock, only 2 left!

0

24

Cub Cadet 746-1086

Throttle Cable
(Superseded to 946-1086)

Note: (Industrial Plus Twin)

$33.99

$

In Stock, only 1 left!

0
