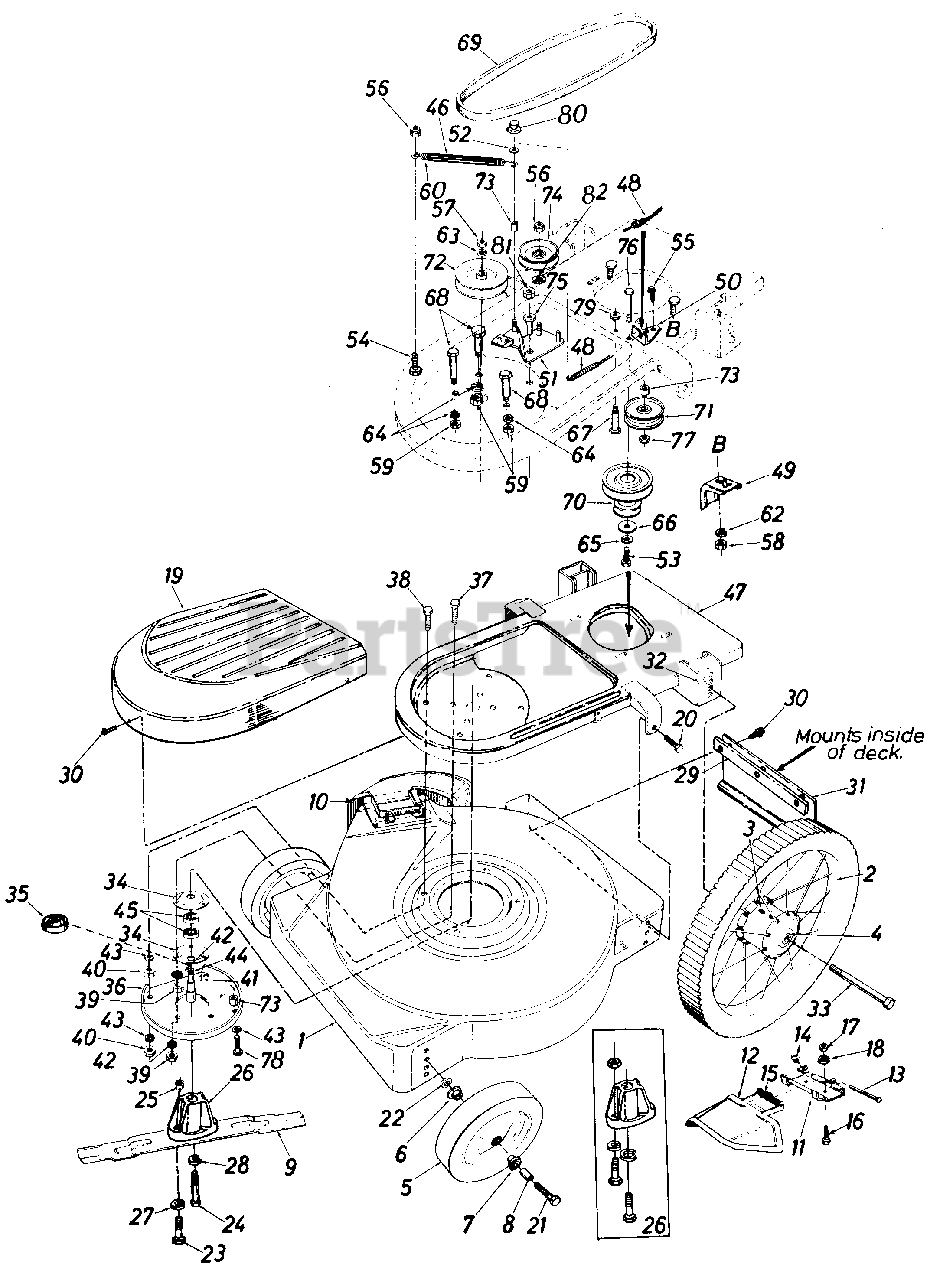

117-533-000 - MTD Walk-Behind Mower (1987) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 14918

22" Deck Ass'y.

Variations

MTD 14918-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14918-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

$

$

2

MTD 734-0438

16" Wheel Ass'y. Comp.

$

$

Currently unavailable

MTD 734-0180

Rim Only

$

$

Currently unavailable

MTD 734-0391

Tire Only

$

$

Not available

3

MTD 718-0132

Oil Cap

$

$

Not available

4

MTD 741-0113

Ball Bearing

$

$

Not available

5

MTD 734-0642

Wheel Ass'y. Comp. 8 x 1.75 (Twinline Tread)

$

$

Not available

MTD 734-0644

Wheel Ass'y. Comp. 8 x 1.75 (Waffle Tread)

$

$

Not available

6

MTD 741-0267

Flanged Ball Bearing 3/8" I.D.

$

$

Not available

7

MTD 741-0484

Flanged Ball Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

8

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

9

MTD 742-0125

22" Blade
(Superseded to 942-0125B)

$

$

Not available

10

MTD 11679

Chute Deflector Ass'y. Comp.

$

$

Not available

11

MTD 11130

Adapter Plate

$

$

Not available

12

MTD 11141

Deflector Ass'y.

$

$

Not available

13

MTD 711-0555

Pivot Pin

$

$

Not available

14

MTD 726-0106

Push Cap 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

15

MTD 732-0253

Torsion Spring

$

$

Not available

16

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

18

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

MTD 08295

Blade Spindle Cover

$

$

Currently unavailable

20

MTD 710-0209

Hex Sems Scr. 3/8-16 x .62"

$

$

Not available

21

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0888

Hex Bolt 5/16-4 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$6.99

$

In Stock, Qty 7

0

25

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

26

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

27

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

29

MTD 14836

Retaining Strip

$

$

Not available

30

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

31

MTD 731-0587

Rear Flap Ass'y.

$

$

Not available

32

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0114

Rear Axle Bolt

$

$

Not available

34

MTD 08253

Bearing Housing
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

35

MTD 13703

Bearing Shield

$

$

Not available

36

MTD 15486

Blade Reinforcement Plate

$

$

Currently unavailable

37

MTD 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

38

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

39

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

40

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

41

MTD 714-0365

#6 Hi-Pro Key 5/32" x 5/8" Dia.

$5.49

$

Usually ships in 3-6 days

0

42

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

44

MTD 738-0552

Blade Spindle

$

$

Not available

45

MTD 749-0919

Ball Bearing .787" I.D. x 1.85" O.D.

Variations

MTD 749-0919-0637

No Longer Available HANDLE-LOW - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 731-0675

Plastic Tube

$

$

Currently unavailable

47

MTD 15862

Frame Ass'y.

$

$

Currently unavailable

48

MTD 746-0507

Clutch Cable-39.0"

$

$

Not available

49

MTD 10426

Belt Keeper Ass'y.

$

$

Not available

50

MTD 15093

Clutch Cable Brkt.

$

$

Not available

51

MTD 15851

Idler Brake Brkt. Ass'y.

$

$

Currently unavailable

52

MTD 736-0275

Fl-Wash. .343" I.D. x .687" O.D. x .063

$6.99

$

Usually ships in 3-6 days

0

53

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62 Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-0107

Hex Cent. L-Nut 1/4 -20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

57

MTD 712-0242

Hex Jam Nut 5/8-11 Thd.
(Superseded to 912-0261)

$

$

Not available

58

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

59

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

60

MTD 732-0308

Extension Spring
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

62

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

63

MTD 736-0158

L-Wash. 5/8" I.D.*

$4.49

$

In Stock, Qty 11

0

64

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

65

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

66

MTD 736-0235

Fl-Wash. .406" I.D. x 1.25" O.D.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0

67

MTD 738-0144

Shld. Bolt .498" Dia. x 1.64"
(Superseded to 938-0144)

$

$

Not available

68

MTD 738-0213

Shld. Bolt .498" Dia. x 1.450"

$7.99

$

In Stock, only 2 left!

0

69

MTD 754-0274

V-Belt 1/2" x 44.0" Lg.

Note: (Blade)

$

$

Not available

70

MTD 756-0412

Engine Pulley

$

$

Not available

71

MTD 756-0405

Flat Idler Pulley

$71.99

$

Usually ships in 3-6 days

0

72

MTD 756-0392

1/2" V-Pulley .503" I.D. x 4.50" O.D.

$

$

Not available

73

MTD 750-0497

Spacer .376 I.D. x .622 O.D. x .44" Lg .

$10.99

$

Usually ships in 3-6 days

0

74

MTD 756-0293

4.0" Idler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

75

MTD 738-0563

Shoulder Spacer

$

$

Not available

76

MTD 710-0539

Hex Bolt 3/8-24 x 1.75" Lg.

$4.99

$

In Stock, Qty 11

0

77

MTD 712-0296

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

78

MTD 710-0724

Hex Bolt 3/8-24 x 1.5" Lg.

$

$

Not available

79

MTD 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

80

MTD 726-0106

Push Cap 1/4

$3.99

$

Usually ships in 3-6 days

0

81

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

82

MTD 736-0235

Fl-Wash. .406 I.D. x 1.25 O.D. x .172 Thk.
(Superseded to 736-0247)

$9.49

$

In Stock, Qty 14

0
