117-104-190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1987) Mower Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

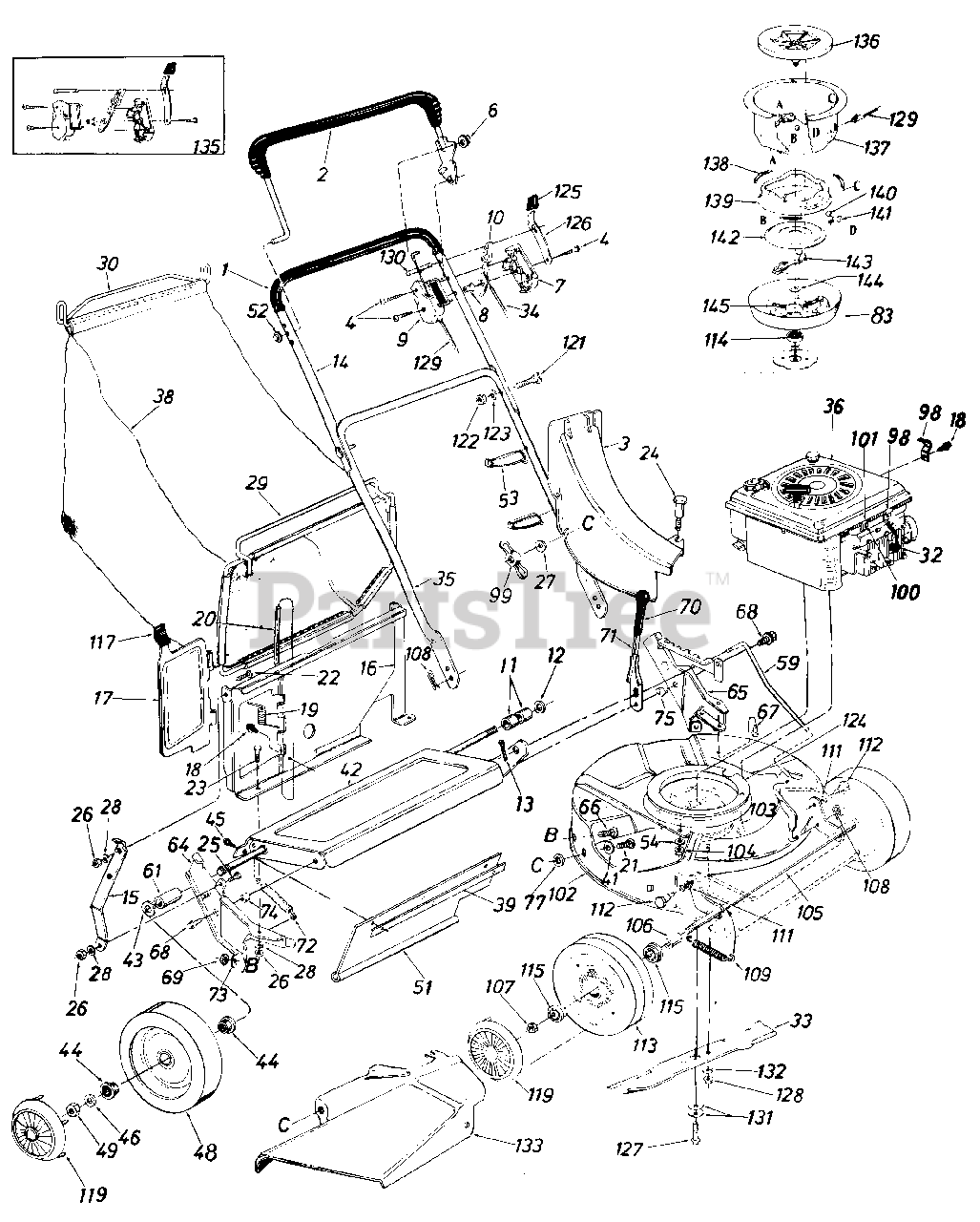

Mower Assembly Parts Diagram

  • Title

1

718-0145

Grip

$

$

Not available

2

White Outdoor 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

3

White Outdoor 731-0733

Top Discharge Chute Ass'y.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

6

White Outdoor 726-0245

Push Cap

$

$

Not available

7

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 711-0500

Spacer .526" I.D. x .690" O.D. x .640" Lg.
(Superseded to 911-0500)

$

$

Not available

12

White Outdoor 736-0160

Fl-Wash. .531 " I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 714-0507

Cotter Pin 3132" Dia. x.75" Lg.*

$4.49

$

In Stock, Qty 12

0

14

749-0437

Upper Handle-Chrome

$

$

Not available

15

White Outdoor 16129

Panel Support Brkt.
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

16

White Outdoor 16140

Top Catcher Panel

$

$

Not available

17

16145

Top Door

$

$

Not available

18

White Outdoor 710-0429

Hex "B" Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

White Outdoor 732-0483

Torsion Spring .20" I.D. x 1.14" Lg.
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

White Outdoor 747-0514

Pivot Pin .187" Dia. x 7.25" Lg.

$

$

Not available

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 X .62"*

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

23

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

White Outdoor 738-0704

Shld. Bolt .312" Dia. x .18" Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

White Outdoor 710-0258

Truss Mach. Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

White Outdoor 747-0494

Front Grass Catcher Frame

$

$

Not available

30

White Outdoor 747-0495

Grass Catcher Handle

$

$

Not available

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 742-0290

21" Blade

$

$

Not available

34

White Outdoor 746-0633

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0505

Lower Handle-Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

38

764-0212

21" Top Discharge Grass Bag

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

41

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 16131

Rear Axle Ass'y.

$

$

Not available

43

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

44

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 X .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

White Outdoor 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

White Outdoor 734-1026

Rear Wheel Ass'y.-Comp. 8 x 1.75

$

$

Not available

49

White Outdoor 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

51

White Outdoor 731-0672

Rear Flap
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

White Outdoor 726-0135

Push Cap

$6.99

$

In Stock, only 1 left!

0

53

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

54

White Outdoor 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

59

White Outdoor 747-0510

Height Adj. Rod

$

$

Not available

61

White Outdoor 748-0190

Spacer .513" I.D. x .703" O.D. x .690" Lg.

$6.49

$

In Stock, Qty 11

0

64

White Outdoor 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0143

Grip

$

$

Not available

71

White Outdoor 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

White Outdoor 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

White Outdoor 750-0624

Shld. Spacer.500" Dia. x .100

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

83

White Outdoor 14300

Clutch Blade Housing Ass'y.

$

$

Not available

98

White Outdoor 12894

Throttle Control Cable Clip

$

$

Not available

99

White Outdoor 712-0109

Wing Nut

$

$

Not available

100

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0442

Casing Clamp

$

$

Not available

102

White Outdoor 16126

Top Discharge Deck Ass'y.

Variations

White Outdoor 16126-0638

No Longer Available DECK ASSEMBLY-TOP- - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

103

White Outdoor 710-0654

Hex Wash Hd. TT-Tap Scr. 3/8-1 6
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

104

White Outdoor 712-0185

Speed Nut 1/4-20 U-Type

$

$

Not available

105

10662

Front Axle Ass'y.

$

$

Not available

106

White Outdoor 711-0313

Sleeve .526" I.D. x 690n O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

107

White Outdoor 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

108

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 x .56" O.D.

$

$

Not available

112

White Outdoor 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

White Outdoor 734-1264

Front-Wheel Ass'y. Comp. 7x 1.75

$55.99

$

Usually ships in 3-6 days

0

114

White Outdoor 741-0124

Ball Brg. .669" I.D. x 1.574"
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

115

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

White Outdoor 714-0104

Intern. Cotter Pin 5116" Dia.

$4.49

$

In Stock, Qty 20+

0

117

White Outdoor 720-0208

Door Grip x 2.5

$

$

Not available

119

White Outdoor 731-0124

Hub Cap-Plastic

$

$

Not available

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

123

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

124

White Outdoor 717-0485

Blade Brake Clutch Comp.

$

$

Not available

125

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

126

White Outdoor 732-0401

Lockout Spring

$

$

Not available

127

White Outdoor 710-0818

Hex Cent. L-Bolt 3/8-24 x 2.00" (Grade 8)

$6.99

$

Usually ships in 3-6 days

0

128

White Outdoor 712-0328

Hex Nut 3/8-24 Thd. (Grade 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

129

White Outdoor 746-0400A

BBC Clutch Cable-46"
(Superseded to 946-0405)

$53.99

$

Usually ships in 3-6 days

0

130

White Outdoor 731-0607

Lock Pin .314" Dia. x 1.75

$

$

Not available

131

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

132

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

133

White Outdoor 16559

Side Chute Deflector

$

$

Not available

135

White Outdoor 753-0431

Kit-Control Housing Comp.

$

$

Not available

136

White Outdoor 719-0256

Fan Adapter

$

$

Not available

137

White Outdoor 14307

Clutch Housing

$

$

Not available

138

White Outdoor 732-0397

Extension Spring .35" O.D. x 1.75" Lg.

$

$

Not available

139

14305

Brake Cup Cone

$

$

Not available

140

White Outdoor 741-0326

Steel Ball .500" Dia.

$

$

Not available

141

White Outdoor 731-0520

Ball Block

$

$

Not available

142

White Outdoor 14304

Clutching Cone

$

$

Not available

143

White Outdoor 710-0875

Hex Tap L-Scr. 1/4-20 x .75"

$3.99

$

In Stock, only 2 left!

0

144

White Outdoor 736-0333

Fl-Wash. .690" I.D. x 1.060" O.D.

$

$

Not available

145

White Outdoor 732-0396

Compression Spring .35" O.D. x 2.00" Lg.

$

$

Not available
