116 R (118-116R100) - Cub Cadet Walk-Behind Mower (1988) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

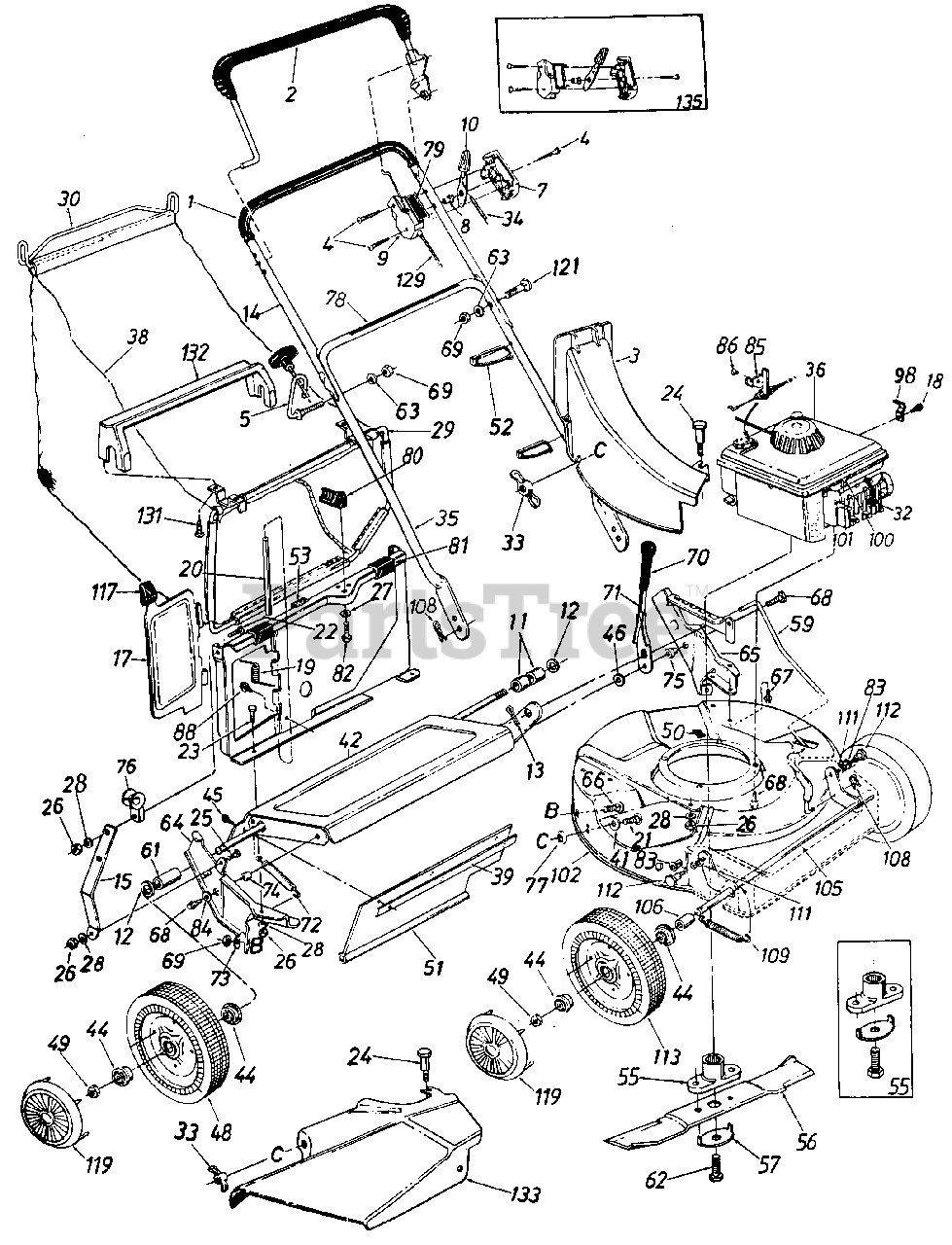

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 718-0145

GRIP-SHRINK-25 IN

$

$

Currently unavailable

2

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

3

Cub Cadet 731-0733

CHUTE ASSY-TOP DISCH

$

$

Not available

4

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0842

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

7

Cub Cadet 731-0817

PANEL HALF-CONTROL

$

$

Not available

8

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

9

Cub Cadet 731-0816

PANEL HALF-CLUTCH

$

$

Not available

10

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

Cub Cadet 711-0500

SLEEVE

$

$

Not available

12

Cub Cadet 736-0108

WASHER-FL-.510 ID X .75 OD X .033

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 749-0436

HANDLE-UPPER-CHROME
(Superseded to 749-0438D-0637)

$

$

Not available

15

Cub Cadet 16129

BRACKET-PANEL SUP
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

Cub Cadet 17196

PANEL ASSY-CATCHER

$

$

Not available

17

Cub Cadet 17095

DOOR-TOP DISCHARGE

$

$

Not available

18

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-0483

SPRING-TORSION
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-0514

ROD

$

$

Not available

21

Cub Cadet 710-0134

BOLT-CARRIAGE 1/4-20 X .62

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0225

SCREW-TRUSS MACH

$

$

Currently unavailable

23

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 738-0704

SCREW-SHLD

$17.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0271

WASHER-SHAKE PROOF
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

28

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 16702

FRAME-GRASSCATCHER

$

$

Not available

30

Cub Cadet 747-0495

HANDLE-GRASSCATCHER

$

$

Not available

32

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

33

Cub Cadet 712-0388

NUT-WING
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 746-0672

WIRE-THROTTLE 58 LG
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

Cub Cadet 749-0505

HANDLE-LOWER PAINTED
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Note: Engine

$

$

Not available

38

Cub Cadet 764-0212

BAG-GRASS-CONV

Note: Black

$

$

Currently unavailable

39

Cub Cadet 14835

STRIP-RETAINING

$

$

Not available

41

Cub Cadet 736-0204

WASHER-FL-.344 ID X .62 OD X .033

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 16131

AXLE-RR-PUSH ASSY

$

$

Not available

44

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0258

WASHER-FL-.385 X 1.00 X .135

$4.49

$

In Stock, only 4 left!

0

48

Cub Cadet 734-1517

WHEEL ASSY W/TIRE
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 712-0346

NUT-HEX INS L-1/2-20

$4.99

$

In Stock, Qty 9

0

50

Cub Cadet 731-0564

PLUG

$

$

Not available

51

Cub Cadet 731-0671

FLAP-RR

$

$

Currently unavailable

52

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

Cub Cadet 722-0134

STRIP-FOAM 1/4X1.0

$

$

Currently unavailable

55

Cub Cadet 753-0463

KIT-BLADE ADAPTER-SPLINED
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 742-0306

BLADE-21IN
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

57

Cub Cadet 736-0415

KIT-BLADE MOUNTING
(Superseded to 753-0525)

$

$

Not available

59

Cub Cadet 747-0510

ROD-HGT ADJ 1.50 X 19.42

$

$

Not available

61

Cub Cadet 711-0313

SLEEVE

$

$

Not available

62

Cub Cadet 710-0757

SCREW-HEX 7/16-20 X 1.50

$9.99

$

In Stock, only 1 left!

0

63

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 16136

BRACKET ASSY-HDLE-RH
(Superseded to 16136C-0637)

$

$

Not available

65

Cub Cadet 16137

BRACKET ASSY-HDLE-LH
(Superseded to 16137C-0637)

$

$

Not available

66

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654

SCREW-HEX
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0223

GRIP

$14.99

$

In Stock, Qty 6

0

71

Cub Cadet 732-0473

LEVER-HGT ADJ
(Superseded to 732-0473B)

$

$

Not available

72

Cub Cadet 732-0481

SPRING-EXTENSION
(Superseded to 932-0481)

$

$

Not available

73

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

75

Cub Cadet 750-0624

SPACER-SHLD .500 X .100

$

$

Not available

76

Cub Cadet 719-0279

GUIDE-ROPE

$15.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 726-0233

RETAINER-BOLT 1/4X.50 OD

$4.49

$

In Stock, only 3 left!

0

78

Cub Cadet 777-5776

LABEL

$

$

Currently unavailable

79

Cub Cadet 777-5774

DECAL

$

$

Currently unavailable

80

Cub Cadet 720-0224

KNOB-LOCKING
(Superseded to 920-0224)

$

$

Not available

81

Cub Cadet 731-0883

CLIP-PANEL BAG

$

$

Not available

82

Cub Cadet 710-0875

SCREW-HEX WASH 1/4-20X.75

$3.99

$

In Stock, only 2 left!

0

83

Cub Cadet 741-0491

BEARING-NYLINER

$5.49

$

In Stock, only 4 left!

0

84

Cub Cadet 736-0179

WASHER-FL-.531 ID X 1.25 OD X 1.00

$4.99

$

In Stock, only 2 left!

0

85

Cub Cadet 14924

BRACKET-CABLE

$

$

Not available

86

Cub Cadet 728-0171

RIVET

$

$

Not available

88

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

100

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 751-0463

CLIP-CASING

$

$

Not available

102

Cub Cadet 16125

DECK ASSEMBLY-20IN-TOP

Note: Color Code 499

$

$

Currently unavailable

105

Cub Cadet 10662

AXLE ASSY-FR-290

$

$

Currently unavailable

106

Cub Cadet 711-0313

SLEEVE

$

$

Not available

108

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

109

Cub Cadet 732-0482

SPRING-EXTENSION

$

$

Not available

111

Cub Cadet 736-0221

WASHER-INTERN L 3/8 X.56 OD X .018

$

$

Not available

112

Cub Cadet 738-0705

SCREW-SHLD
(Superseded to 938-0705)

$

$

Not available

113

Cub Cadet 734-1515

WHEEL ASSY W/TIRE 7X1.75BB
(Superseded to 734-1264)

$55.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

119

Cub Cadet 731-0982

HUB CAP
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

121

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

129

Cub Cadet 746-0480

CABLE-CONTROL
(Superseded to 946-0478A)

$

$

Not available

131

Cub Cadet 710-0969

SCREW-TAP .215 X 1

$4.49

$

In Stock, only 2 left!

0

132

Cub Cadet 731-0801

HANDLE-BAG-BLACK

$

$

Not available

133

Cub Cadet 731-0886

DEFLECTOR-CHUTE

$

$

Not available

135

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available
