116-8430 - Exmark Hand Operator Control Discharge Kit (SN: 404314159 - 406294344) (2019) Hand Lever Assembly Parts Diagram

Hand Operator Control Discharge Kit

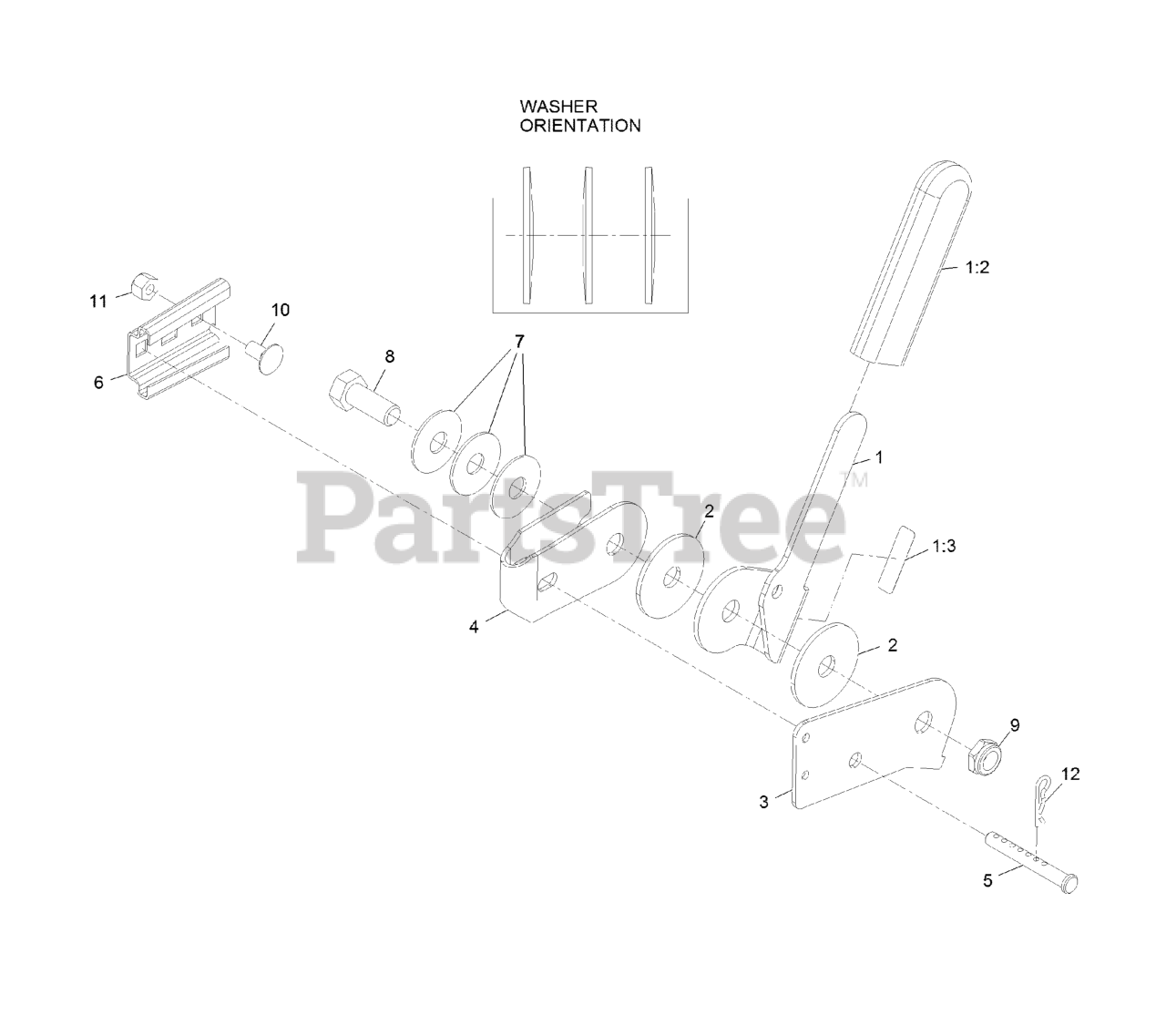

Hand Lever Assembly Parts Diagram

  • Title

1

Exmark 116-2361

CONTROL HANDLE ASM-OCD

$60.99

$

Usually ships in 3-6 days

0

1:2

Exmark 1-633268

GRIP-LEVER

$14.99

$

In Stock, only 4 left!

0

1:3

Exmark 126-8164

Decal-Operation

$5.99

$

Usually ships in 3-6 days

0

2

Exmark 103-5009

DISC-FRICTION

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 116-2942

BRACKET,CONTROL MOUNT

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 116-2941

BRACKET,HANDLE MOUNT

$27.99

$

Usually ships in 3-6 days

0

5

Exmark 116-2223

PIN-CLEVIS

$10.99

$

In Stock, only 1 left!

0

6

Exmark 116-2222

BRACKET-MOUNTING,SMV

$16.99

$

Usually ships in 3-6 days

0

7

Exmark 103-5018

WASHER-DISC, SPRING

$12.99

$

Usually ships in 3-6 days

0

8

Exmark 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

9

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

10

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

11

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0
