116-7223 - Exmark Sulky for Vantage Stand-on Mower (SN: 400000000 - 402082299) (2017) StandOn Assembly Parts Diagram

Sulky for Vantage Stand-on Mower

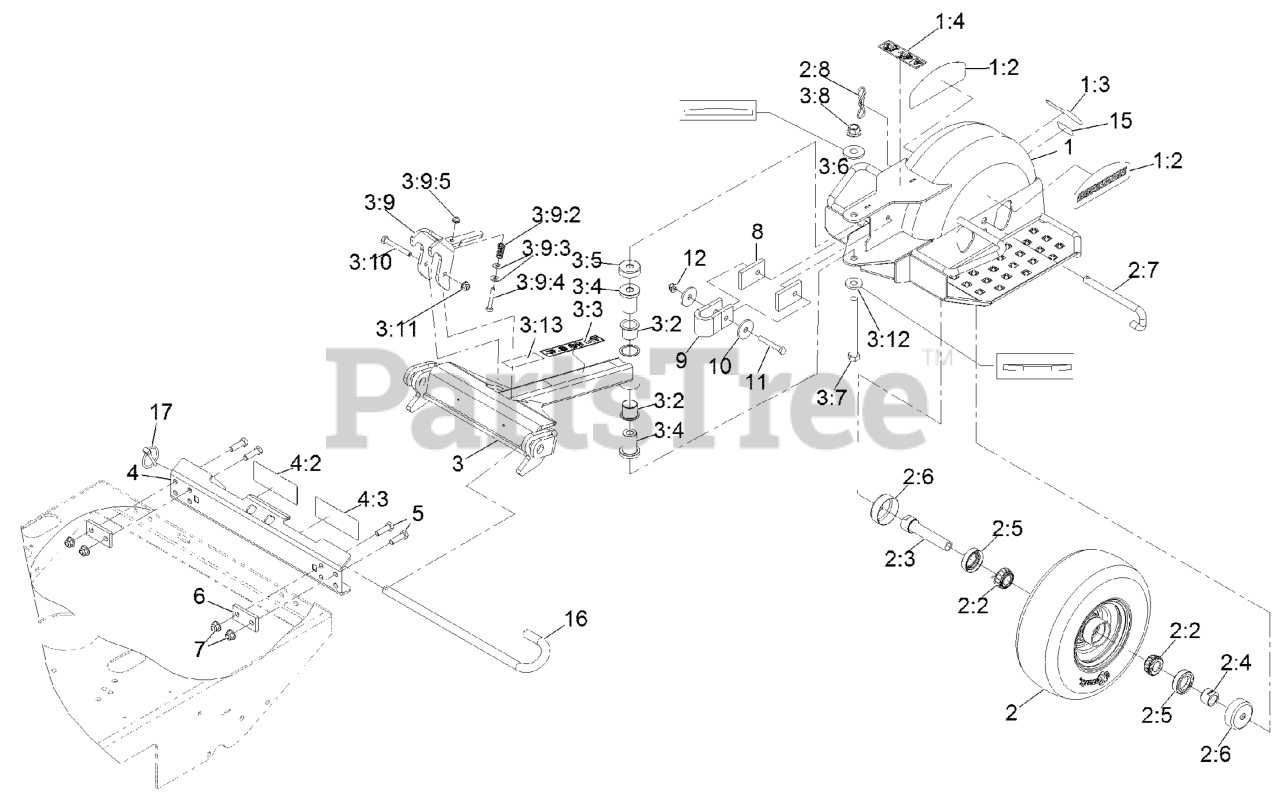

StandOn Assembly Parts Diagram

  • Title

1

Exmark 126-1952

ASM-SULKY FRAME W/ DECALS

$489.99

$

Usually ships in 3-6 days

0

1:2

Exmark 126-6893

DECAL, STANDON

$7.49

$

Usually ships in 3-6 days

0

1:3

Exmark 126-6894

DECAL, EXMARK

$5.99

$

Usually ships in 3-6 days

0

1:4

Exmark 135-0300

DECAL-WARNING HAND PINCH

$7.99

$

Usually ships in 3-6 days

0

2

Exmark 116-7228

ASM, WHEEL AND BEARINGS

$254.99

$

In Stock, only 1 left!

0

2:2

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$21.99

$

In Stock, Qty 12

0

2:3

Exmark 126-5359

CASTER AXLE ASM

$18.99

$

In Stock, only 2 left!

0

2:4

Exmark 103-3051

SPACER-NUT

$9.49

$

In Stock, only 2 left!

0

2:5

Exmark 103-0063

SEAL-CASTER

$8.99

$

In Stock, Qty 6

0

2:6

Exmark 103-2768

GUARD-SEAL

$3.49

$

In Stock, Qty 20+

0

2:7

Exmark 116-6017

PIN, CASTER

$40.99

$

In Stock, only 2 left!

0

2:8

Exmark 116-6392

PIN-COTTER, LOCKING

$1.49

$

In Stock, Qty 6

0

3

Exmark 126-1958

ASM, DRAW BAR

$548.99

$

Usually ships in 3-6 days

0

3:2

Exmark 126-1963

BUSHING-PIVOT

$7.49

$

In Stock, Qty 20+

0

3:3

Exmark 126-1411

DECAL-SULKY HAZARD

$5.99

$

Usually ships in 3-6 days

0

3:4

Exmark 126-1964

SPACER, PIVOT

$24.99

$

In Stock, only 1 left!

0

3:5

Exmark 116-6313

COVER, DUST

$2.99

$

In Stock, Qty 5

0

3:6

Exmark 116-8429

WASHER-BELLEVILLE

$10.99

$

Usually ships in 3-6 days

0

3:7

Exmark 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

3:8

Exmark 99-5107

Nut-Lock 1/2-13

$1.99

$

In Stock, Qty 20+

0

3:9

Exmark 126-2125

TRANSPORT LATCH ASM

$67.99

$

Usually ships in 3-6 days

0

3:9:2

Exmark 116-6523

SPRING, COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

3:9:3

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

3:9:4

Exmark 321-37

SCREW-HH

$11.99

$

In Stock, only 1 left!

0

3:9:5

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3:10

Exmark 322-12

SCREW-HH

$1.99

$

In Stock, Qty 12

0

3:11

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

3:12

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 13

0

4

Exmark 126-1955

ASM, MOUNT PLATE

$152.99

$

Usually ships in 3-6 days

0

4:2

Exmark 116-8225

DECAL-BELT DRIVE WARNING

$5.99

$

Usually ships in 3-6 days

0

4:3

Exmark 126-1400

DECAL-WARNING, SULKY

$5.49

$

Usually ships in 3-6 days

0

5

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

6

Exmark 103-6663

PLATE,BACK-UP (PLATED)

$5.49

$

In Stock, only 3 left!

0

7

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 103-6654

PAD,STOP

$1.49

$

In Stock, only 3 left!

0

9

Exmark 126-9101

STOP, ROTATION

$5.49

$

In Stock, only 4 left!

0

10

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 3 left!

0

11

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

12

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-4345

Decal-Patent Ttco.Com

$1.99

$

In Stock, Qty 9

0

16

Exmark 116-6302

PIN, PIVOT

$51.99

$

In Stock, only 2 left!

0

17

Exmark 92-1298

PIN-LYNCH

$3.99

$

In Stock, Qty 20+

0
