116-5000 - Exmark Bagger for 48" & 50" Pioneer Mower (SN: 406294345 - 408644345) (Rev A) (2020) Tube and Baffle Assembly for 116-5000 Parts Diagram

Bagger for 48" & 50" Pioneer Mower

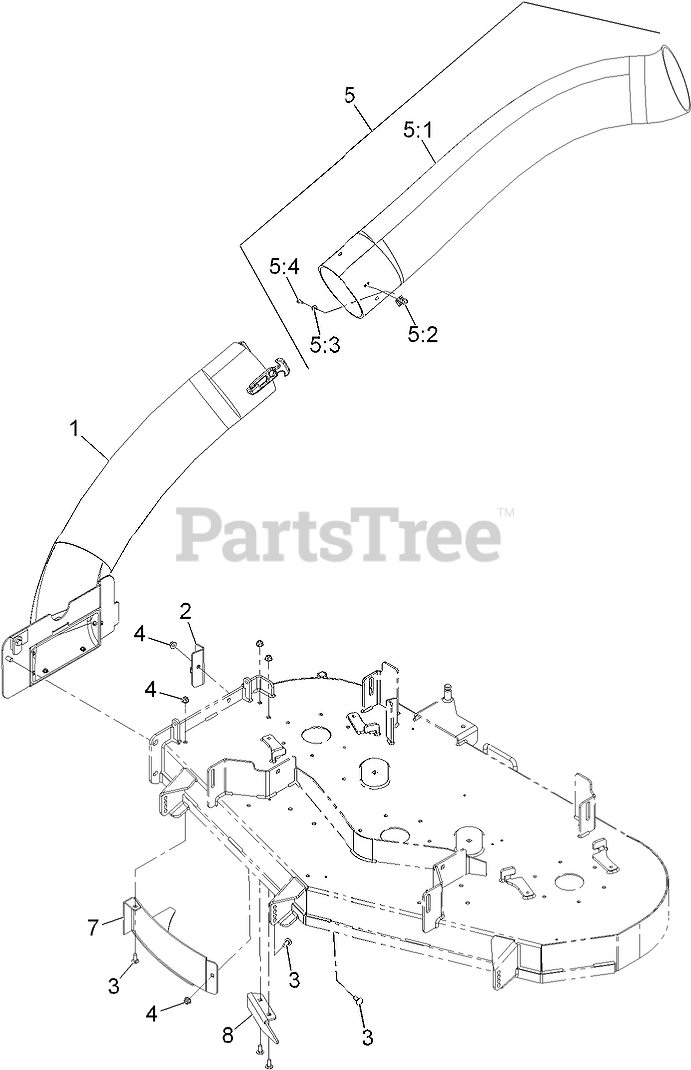

Tube and Baffle Assembly for 116-5000 Parts Diagram

  • Title

1

Exmark 116-5141

TUBE AND FRAME ASM

$503.99

$

In Stock, only 1 left!

0

2

Exmark 109-5387-03

BRACKET-BOOT MOUNT, 52 IN

$28.99

$

Usually ships in 3-6 days

0

2

Exmark 109-6091-03

BRACKET-BOOT MOUNT, 48 IN

$61.99

$

In Stock, only 1 left!

0

3

Exmark 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-5154

UPPER TUBE W/KEEPER ASM

$289.99

$

Usually ships in 3-6 days

0

5:1

Exmark 116-5153

TUBE-UPPER

$325.99

$

Usually ships in 3-6 days

0

5:2

Exmark 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$14.99

$

Usually ships in 3-6 days

0

5:3

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5:4

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Exmark 116-1252-03

WLD,DISCHARGE BAFFLE

$224.99

$

Usually ships in 3-6 days

0

8

Exmark 116-5155-01

BAFFLE-DISCHARGE

$27.99

$

Usually ships in 3-6 days

0
