116-4765 - Exmark Bagger for 50" Quest Mower (SN: 312000000 - 312999999) (2012) 50 Inch Bagger Assembly Parts Diagram

Bagger for 50" Quest Mower

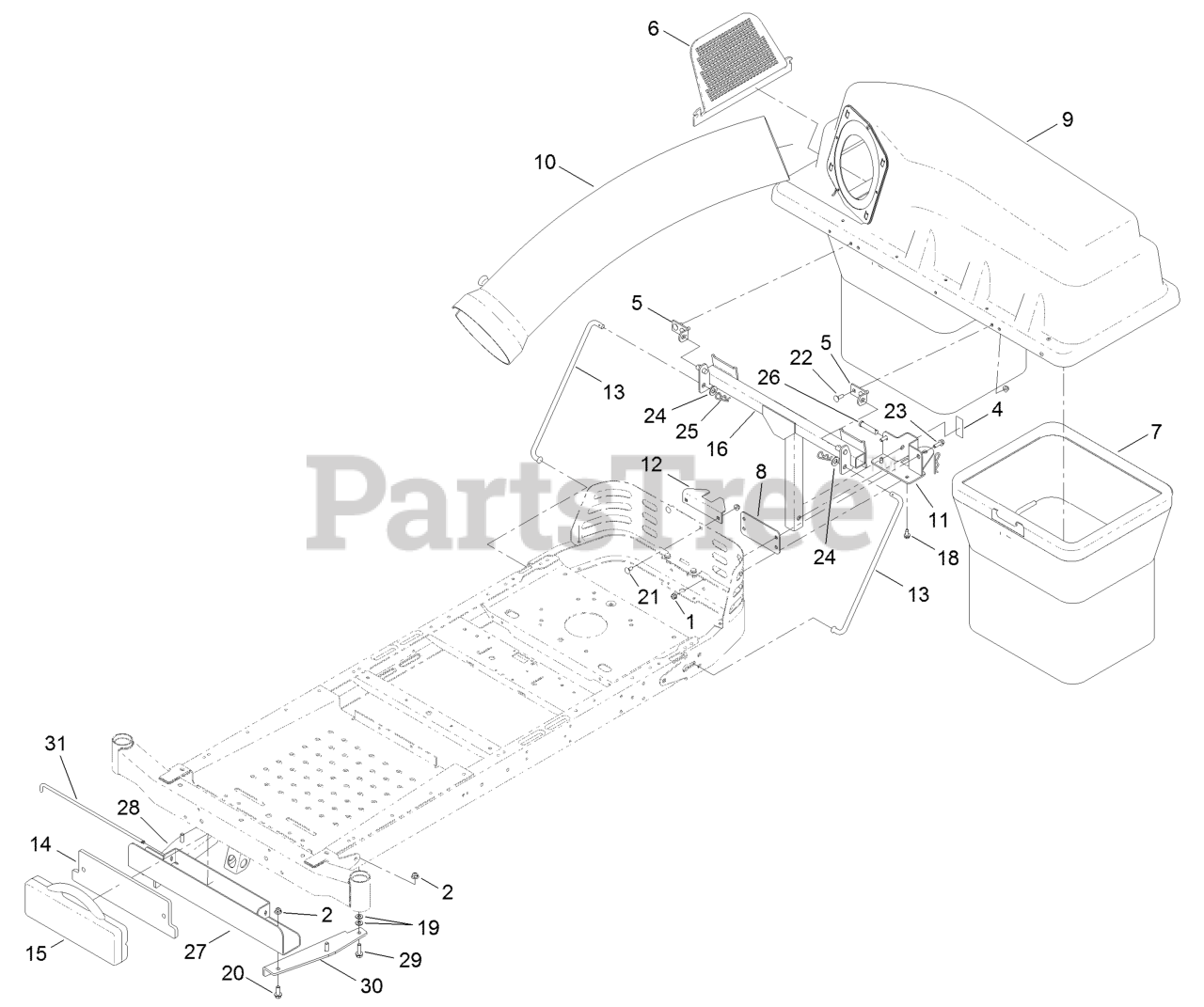

50 Inch Bagger Assembly Parts Diagram

  • Title
1

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

2

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

$9.49

$

Usually ships in 3-6 days

0

5

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$8.49

$

Usually ships in 3-6 days

0

6

Exmark 112-3993

SCREEN-BAGGER

$30.99

$

In Stock, only 1 left!

0

7

Exmark 112-3994

BAG ASM

$181.99

$

In Stock, only 2 left!

0

$22.99

$

Usually ships in 3-6 days

0

9

Exmark 117-5370

BAGGER TOP ASM

$420.99

$

Usually ships in 3-6 days

0

10

Exmark 112-3995

TUBE-BAGGER

$212.99

$

Usually ships in 3-6 days

0

11

Exmark 119-8850-03

SUPPORT-BAGGER

$70.99

$

Usually ships in 3-6 days

0

12

Exmark 119-8852-03

BRACKET-STABILIZER

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 119-8853

ROD-SUPPORT

$23.99

$

In Stock, only 1 left!

0

$75.99

$

Usually ships in 3-6 days

0

15

Exmark 109-9742-03

109-9742-05
(Superseded to 109-9742-05)

$463.99

$

Usually ships in 3-6 days

0

16

Exmark 120-2292-03

FRAME-PIVOT

$

$

Not available

18

Exmark 32144-70

Screw-HWH 5/16-18 X 3/4 Tf

$2.99

$

In Stock, Qty 20+

0

19

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Exmark 3234-42

SCREW-HHF 3/8-16 X 1

$3.49

$

In Stock, Qty 20+

0

21

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

23

Exmark 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Exmark 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

26

Exmark 92-2739

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

27

Exmark 120-5491-03

CHANNEL-WEIGHT, BAGGER

$106.99

$

Usually ships in 3-6 days

0

28

Exmark 120-5502-03

DISCONTINUED

$28.99

$

Usually ships in 3-6 days

0

29

Exmark 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

30

Exmark 120-5497-03

BRACKET-BAGGER WEIGHT, LH

$34.99

$

Usually ships in 3-6 days

0

31

Exmark 109-9759

PIN-WEIGHT

$

$

Not available
