116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 406294345 - 408644345) (Rev A) (2020) Blower Assembly Parts Diagram

Ultra Vac Bagger for Pioneer Mower

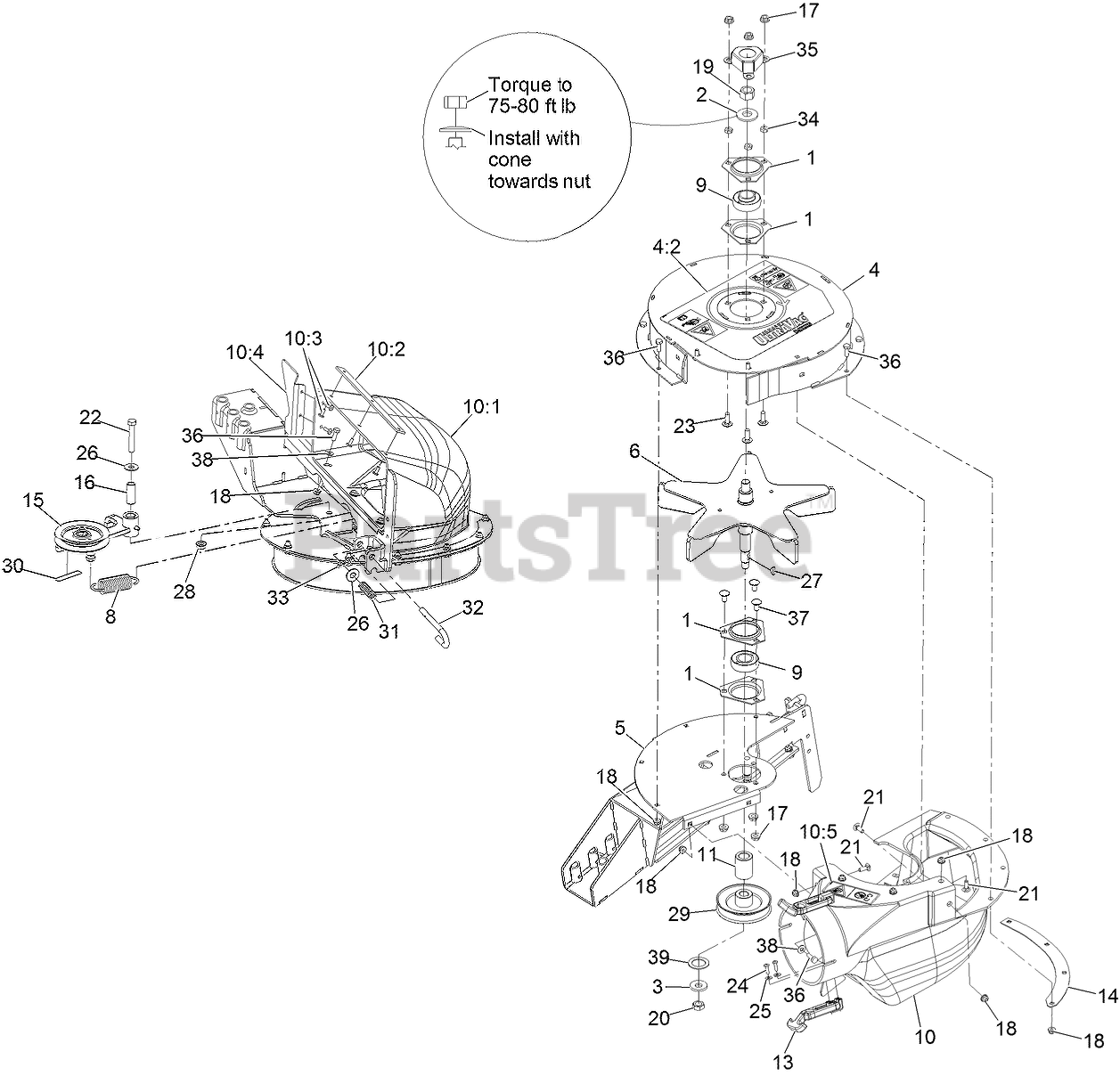

Blower Assembly Parts Diagram

  • Title

1

Exmark 1-513013

HOUSING-FLANGE

$5.49

$

In Stock, Qty 20+

0

2

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, Qty 9

0

3

Exmark 1-513435

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

4

Exmark 116-4446

UPPER HOUSING W/DECAL

$442.99

$

Usually ships in 3-6 days

0

4:2

Exmark 126-4793

Decal-Blower Warning

$

$

Currently unavailable

5

Exmark 116-6484-03

BLOWER FRAME ASM

$526.99

$

Usually ships in 3-6 days

0

6

Exmark 103-3815

IMPELLER

$310.99

$

In Stock, Qty 5

0

8

Exmark 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

9

Exmark 1-653346

BEARING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$71.99

$

In Stock, Qty 20+

0

10

Exmark 116-6487

BLOWER CHUTE ASM

$353.99

$

Usually ships in 3-6 days

0

10:1

Exmark 116-4991

CHUTE-BLOWER, SMALL

$340.99

$

Usually ships in 3-6 days

0

10:2

Exmark 103-4752-03

PLATE-REINFORCEMENT

$13.99

$

Usually ships in 3-6 days

0

10:3

Exmark 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

10:4

Exmark 116-6486-03

PLATE-FILLER

$15.99

$

Usually ships in 3-6 days

0

10:5

Exmark 126-4853

Decal-Blower-Impeller Hazard

$7.49

$

Usually ships in 3-6 days

0

11

Exmark 1-653365

SPACER

$27.99

$

In Stock, only 1 left!

0

13

Exmark 103-4080

LATCH-RUBBER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$33.99

$

In Stock, Qty 5

0

14

Exmark 116-4434-03

PLATE-BACKING

$19.99

$

Usually ships in 3-6 days

0

15

ASM, Idler

Note: Not serviced separately

$

$

Not available

16

Exmark 1-603044

BUSHING

$14.99

$

In Stock, Qty 20+

0

17

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

18

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

20

Exmark 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 19

0

21

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

24

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Exmark 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

29

Exmark 103-1047

SHEAVE-BLOWER

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize). See operator s manual for locations.

$76.99

$

In Stock, Qty 5

0

30

Exmark 126-4659

DECAL-WARNING

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 109-7694

SPRING-COMPRESSION

$6.99

$

In Stock, only 2 left!

0

32

Exmark 116-4356

PIN-LATCH

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

34

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

35

Exmark 116-4776

COVER-NUT

$30.99

$

Usually ships in 3-6 days

0

36

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

38

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 1-523157

WASHER-SPACER

$1.49

$

In Stock, Qty 20+

0
