116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 316000000 - 399999999) (2016) Completing Kit No. 116-4889 Parts Diagram

Ultra Vac Bagger for Pioneer Mower

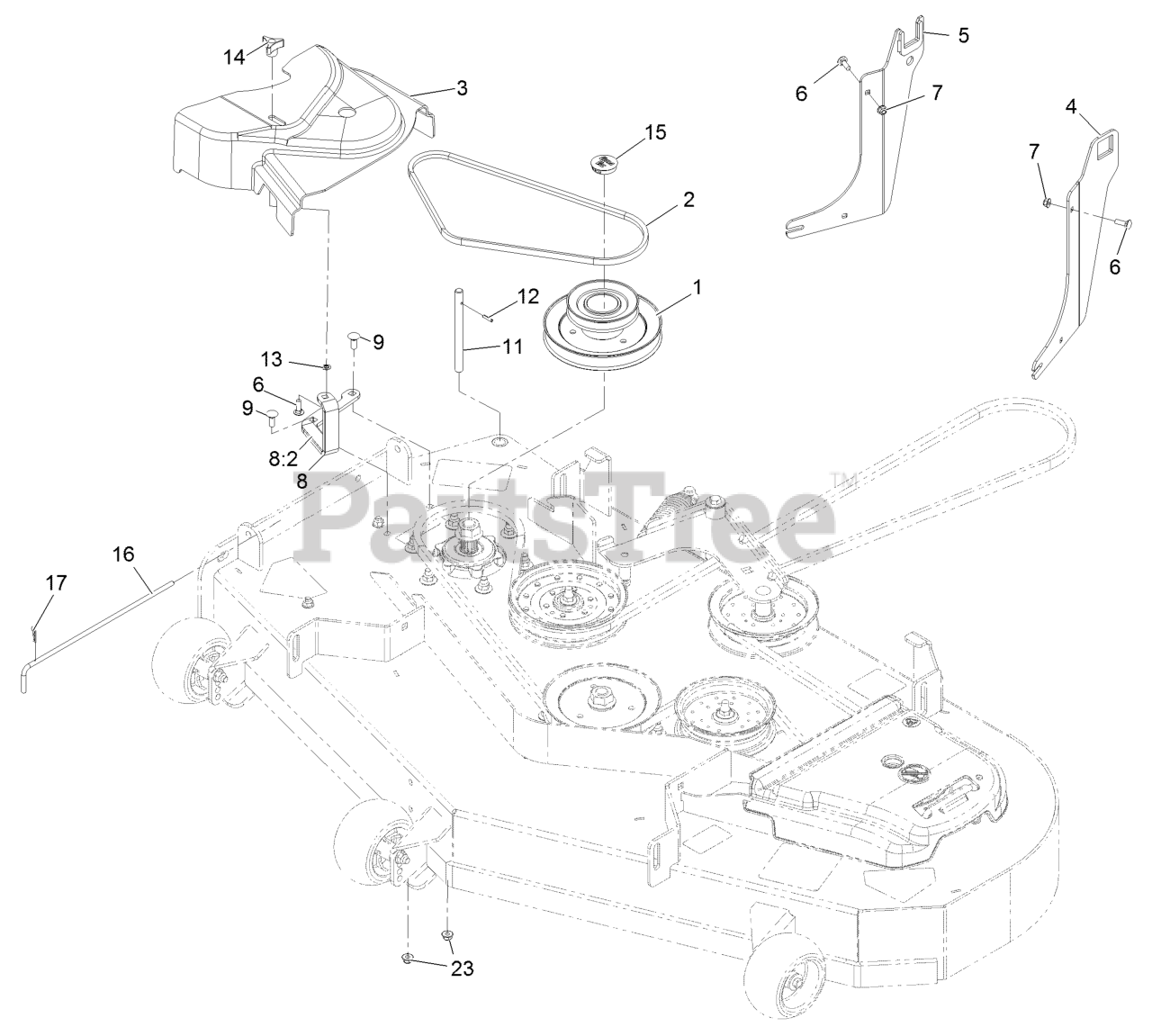

Completing Kit No. 116-4889 Parts Diagram

  • Title

1

Exmark 116-2089

JACKSHAFT,UV DRIVE 524 SP

$271.99

$

In Stock, only 1 left!

0

2

Exmark 1-653333

BELT-BLOWER
(Superseded to 1-653333-SL)

$33.99

$

Usually ships in 3-6 days

0

3

Exmark 116-4685

COVER-BELT, UV 52

$127.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4862-03

BRACKET ASM, LH

$94.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4863-03

BRACKET ASM, RH

$94.99

$

Usually ships in 3-6 days

0

6

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-7036

ASM-CVR BRKT W/DECAL

$76.99

$

Usually ships in 3-6 days

0

8:2

Exmark 119-0217

DECAL-DANGER

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

12

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

13

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

14

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$12.99

$

Usually ships in 3-6 days

0

16

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
