116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 316000000 - 399999999) (2016) Bagger Top and Mounting Assembly Parts Diagram

Ultra Vac Bagger for Pioneer Mower

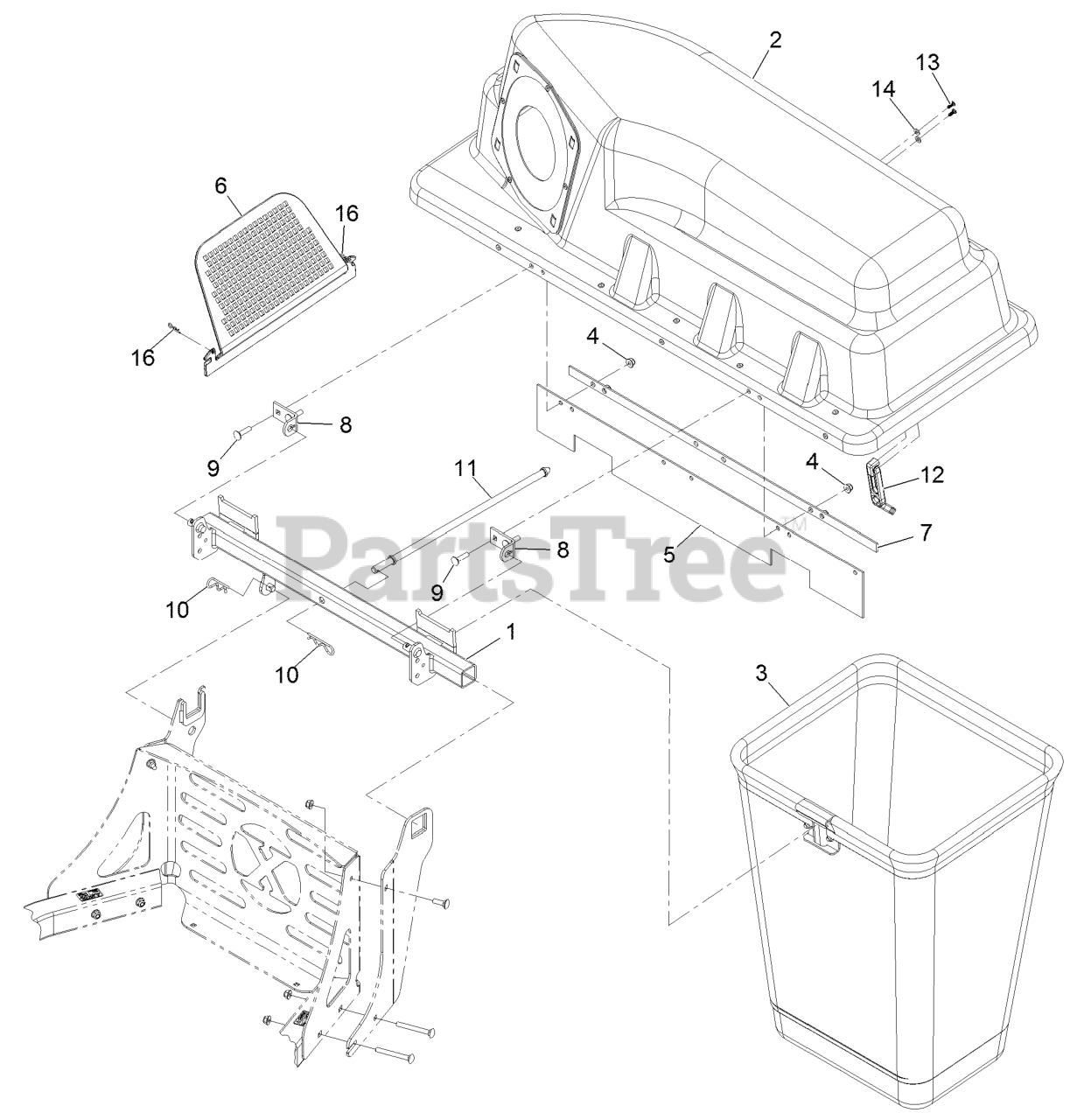

Bagger Top and Mounting Assembly Parts Diagram

  • Title

1

Exmark 116-4783-03

FRAME PIVOT ASM

$174.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4537

BAGGER HOOD ASM

$499.99

$

Usually ships in 3-6 days

0

3

Exmark 116-0754

BAG AND FRAME ASM

$185.99

$

Usually ships in 3-6 days

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 116-4126

SEAL

$31.99

$

Usually ships in 3-6 days

0

6

Exmark 112-3993

SCREEN-BAGGER

$29.99

$

In Stock, only 1 left!

0

7

Exmark 116-4127-03

PLATE-BACKING

$21.99

$

Usually ships in 3-6 days

0

8

Exmark 112-3987

BRACKET-PIVOT, HOPPER

$7.99

$

Usually ships in 3-6 days

0

9

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

10

Exmark 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

11

Exmark 116-6491

ROD-HOLD DOWN, HOOD

$56.99

$

Usually ships in 3-6 days

0

12

Exmark 116-4992

LATCH-RUBBER

$49.99

$

In Stock, only 1 left!

0

13

Exmark 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 9

0

14

Exmark 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

16

Exmark 3290-307

1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0
