116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 314000000 - 314999999) (2014) Completing Kit No. 116-4882 Parts Diagram

Ultra Vac Bagger for Pioneer Mower

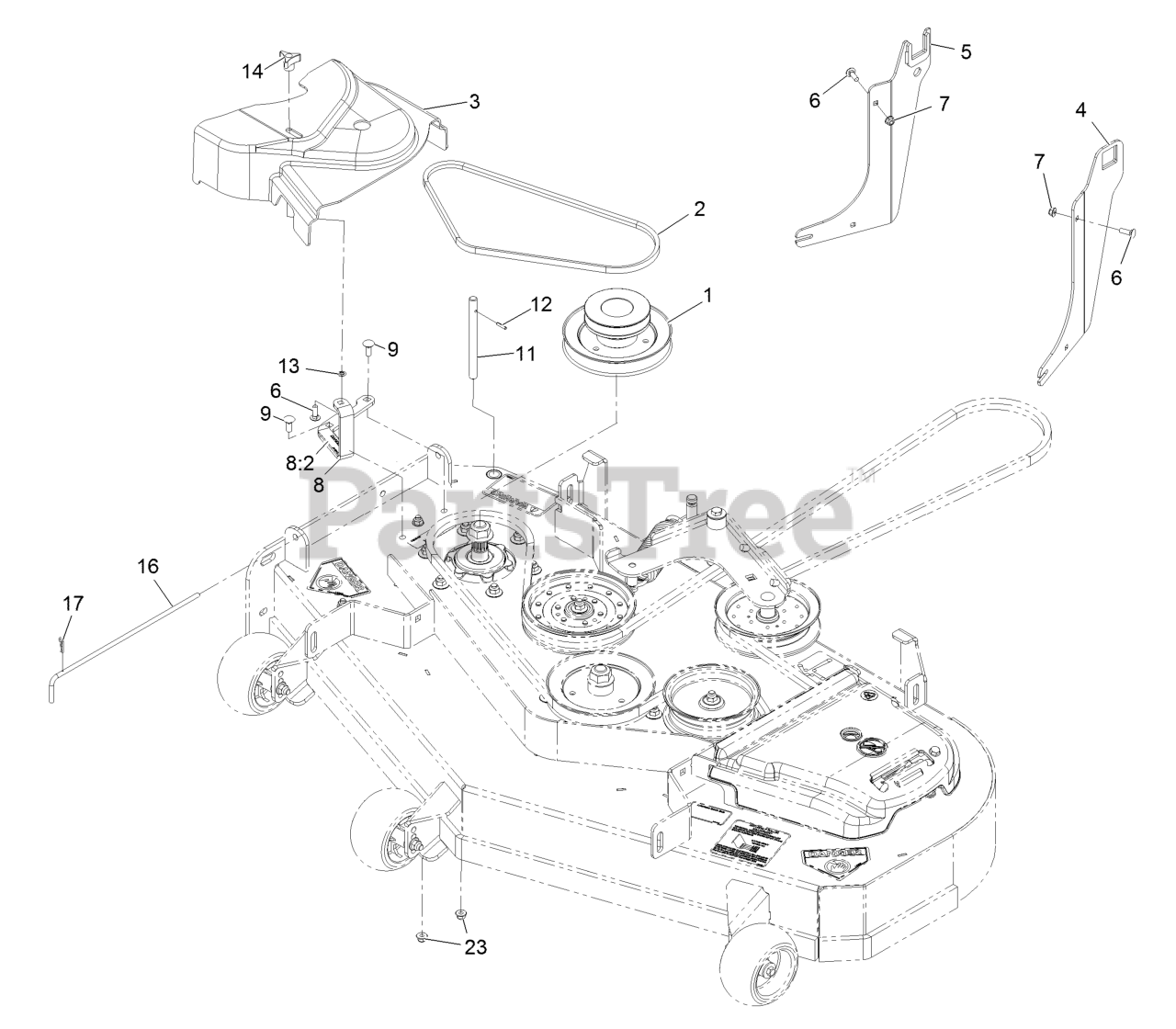

Completing Kit No. 116-4882 Parts Diagram

  • Title

1

Exmark 116-4628

JACKSHAFT-UV DRIVE 48 SPL

$281.99

$

Usually ships in 3-6 days

0

2

Exmark 116-4844

BELT-UV E 48
(Superseded to 116-4844-SL)

$29.99

$

In Stock, only 3 left!

0

3

Exmark 116-4684

COVER-BELT, UV 48

$114.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4862-03

BRACKET ASM, LH

$89.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4863-03

BRACKET ASM, RH

$89.99

$

Usually ships in 3-6 days

0

6

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 116-7036

ASM-CVR BRKT W/DECAL

$72.99

$

Usually ships in 3-6 days

0

8:2

Exmark 98-5954

DECAL-COVER, MISSING

$9.49

$

In Stock, Qty 7

0

9

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

11

Exmark 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

12

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

13

Exmark 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

14

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

16

Exmark 109-3458

PIN,CHUTE PIVOT

$17.99

$

Usually ships in 3-6 days

0

17

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

23

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0
