116-3001 - Exmark Ultra Vac Bagger for Pioneer Mower (SN: 313000000 - 313999999) (2013) Completing Kit No. 116-4885 Parts Diagram

Ultra Vac Bagger for Pioneer Mower

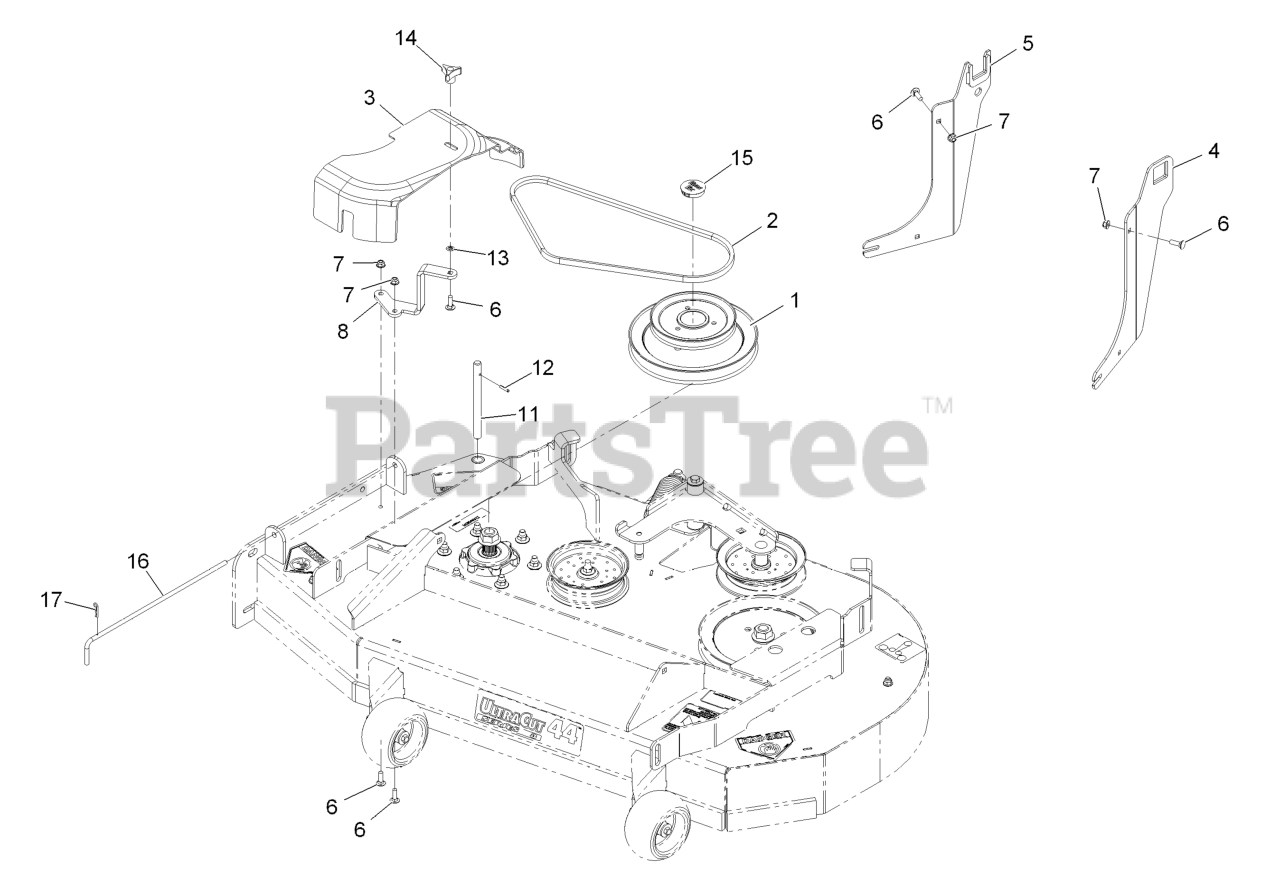

Completing Kit No. 116-4885 Parts Diagram

  • Title

1

Exmark 116-5586

JACKSHAFT-UV DRIVE, 44 SP

$304.99

$

Usually ships in 3-6 days

0

2

Exmark 103-0867

BELT, BLOWER DRIVE 72
(Superseded to 103-0867-SL)

$41.99

$

In Stock, only 2 left!

0

3

Exmark 116-4683

COVER-BELT, UV 44

$134.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4862-03

BRACKET ASM, LH

$100.99

$

Usually ships in 3-6 days

0

5

Exmark 116-4863-03

BRACKET ASM, RH

$100.99

$

Usually ships in 3-6 days

0

6

Exmark 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 116-4686-01

BRACKET-BELT COVER 44

$51.99

$

Usually ships in 3-6 days

0

11

Exmark 1-353050

SHAFT-CATCHER, GRASS

$18.99

$

In Stock, only 2 left!

0

12

Exmark 1-806323

PIN-ROLL

$1.49

$

In Stock, Qty 5

0

13

Exmark 109-5667

RING-RETAINING, BOLT

$6.99

$

In Stock, only 2 left!

0

14

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-1279

PLUG, BLACK NYLON 1.75

$13.99

$

Usually ships in 3-6 days

0

16

Exmark 109-3458

PIN,CHUTE PIVOT

$19.99

$

Usually ships in 3-6 days

0

17

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0
