116-152-000 - MTD Walk-Behind Mower (1986) Parts Parts Diagram

Walk-Behind Mower

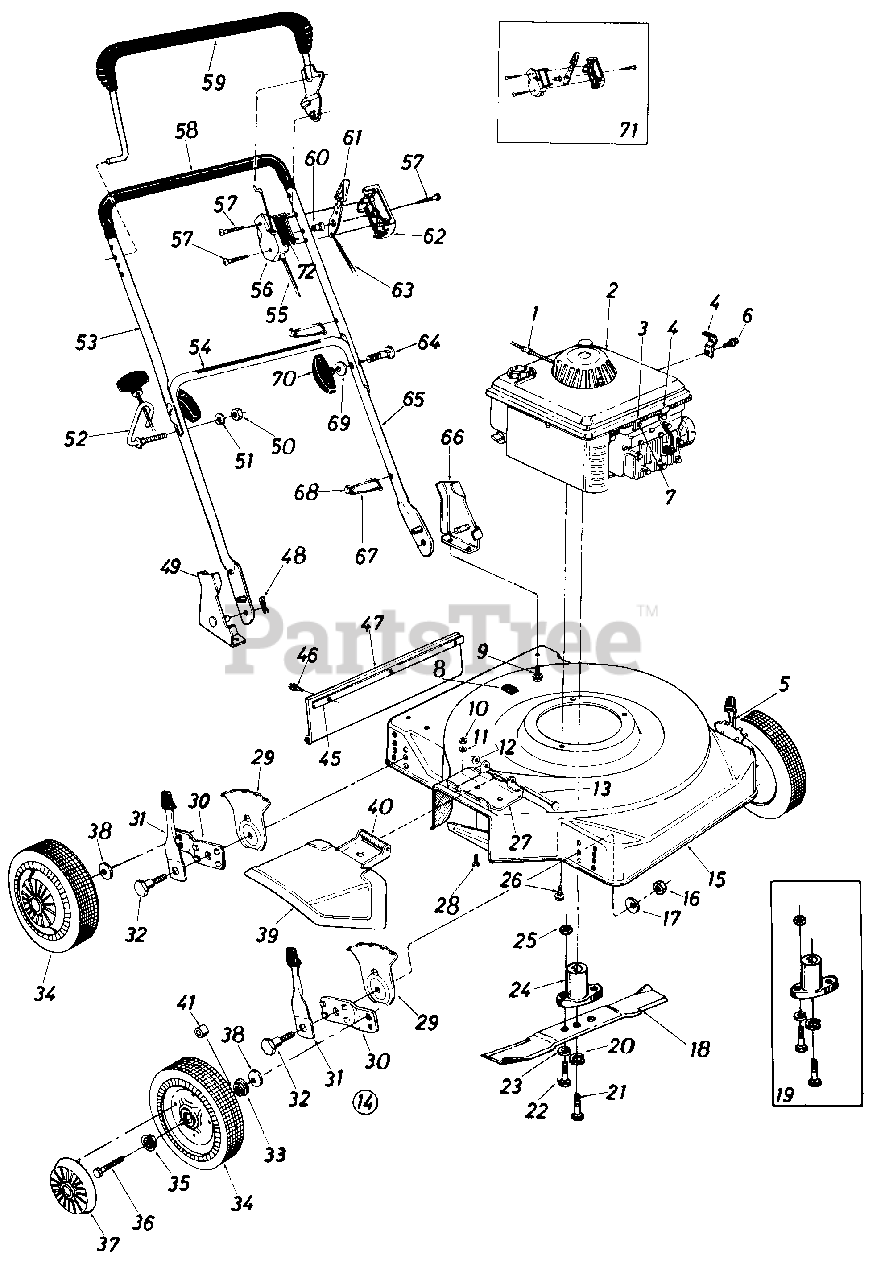

Parts Parts Diagram

  • Title

1

MTD 751-0441

Stop Clip

Note: (For Rope)

$

$

Not available

2

Engine

$

$

Not available

3

MTD 751-0442

Casing Clamp

$

$

Not available

4

MTD 12894

Throttle Control Cable Clip

$

$

Not available

5

MTD 14579

Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

6

MTD 710-0429

Hex "B" Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

7

MTD 710-0436

Hex "B" Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

8

MTD 731-0564

Plastic Plug

$

$

Not available

9

MTD 710-0603

Hex Wash. Hd. "B"-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

10

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

11

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

MTD 726-0106

Push Cap .25" Rod

$3.99

$

Usually ships in 3-6 days

0

13

MTD 711-0555

Hinge Pin 1/4" Dia. x 3.88" Lg.

$

$

Not available

14

MTD 14578

Height Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

15

MTD 14909

20" Deck Ass'y.

Note: (152)

$

$

Currently unavailable

MTD 14918

22" Deck Ass'y.

Note: (162)

Variations

MTD 14918-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14918-0650

No Longer Available DECK ASM - RED METALLIC (0650)

$

$

Not available

$

$

16

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

17

MTD 736-0356

Bell-Wash. .39" I.D. x 1.4" O.D.
(Superseded to 936-0356)

$

$

Not available

18

MTD 742-0123

20" Blade

Note: (152)

$

$

Not available

MTD 742-0125

22" Blade
(Superseded to 942-0125B)

Note: (162)

$

$

Not available

19

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

20

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 9

0

21

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

22

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 5

0

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 719-0262

Blade Adapter

$

$

Currently unavailable

25

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

26

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

27

MTD 11143-462

Deflector Hinge Plate

$

$

Currently unavailable

28

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

29

MTD 15261

Index Plate-Front
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

30

MTD 15262

Wheel Pivot Bar-Front
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

31

MTD 14832

Spring Lever With Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

32

MTD 738-0507

Shoulder Bolt .500" Dia. x .430
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

33

MTD 741-0484

Ball Brg.-1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

34

MTD 734-0645

Wheel Ass'y. Comp. 8.0 x 1.75

$

$

Not available

35

MTD 741-0267

Ball Brg.-3/8" I.D.

$

$

Not available

36

MTD 710-0347

Axle Bolt

$5.49

$

In Stock, Qty 20+

0

37

MTD 731-0354

Hub Cap-Black Plastic

$

$

Not available

38

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

39

MTD 11679

Chute Deflector Ass'y. Comp.

$

$

Not available

40

MTD 732-0253

Torsion Spring

$

$

Not available

41

MTD 750-0484

Spacer

$

$

Currently unavailable

45

MTD 14835

Retainer Strip

$

$

Not available

46

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-0582

Rear Flap Ass'y. 4.65 x 17.2" Lg.

Note: (152)

$

$

Not available

MTD 731-0587

Rear Flap Ass'y. 4.69 x 18.2" Lg.

Note: (162)

$

$

Not available

48

MTD 714-0104

Intern Cotter Pln 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

49

MTD 12936

Handle Mount Brkt. Ass'y.-R.H.

$

$

Not available

50

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

52

MTD 710-0842

Rope Guide Bolt

$

$

Not available

53

MTD 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

54

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

55

MTD 746-0477

43" Control Cable-Yellow
(Superseded to 946-0477A)

$

$

Not available

56

MTD 731-0816

Clutch Panel Half

$

$

Not available

57

MTD 710-0796

Truss Mach. H1-B Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

58

MTD 718-0145

Grip-Handle-22" Lg.

$

$

Currently unavailable

59

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

60

MTD 731-0524

Control Disc Pin

$

$

Not available

61

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

62

MTD 731-0817

Control Panel Half

$

$

Not available

63

MTD 746-0633

Throttle Control Wire 58" Lg.-Black
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

64

MTD 710-0405

Curved Hd. Carr. Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

65

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

66

MTD 12935

Handle Mount Brkt. Ass'y-L.H.

$

$

Not available

67

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

68

MTD 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

69

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

70

MTD 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

71

MTD 753-0360

Throttle Control Housing-Comp.

$

$

Not available

72

MTD 777-5774

Throttle Control-Label

$

$

Currently unavailable
