116-112-063 - MTD Walk-Behind Mower (1986) (Sentry Hardware) Parts Parts Diagram

Walk-Behind Mower

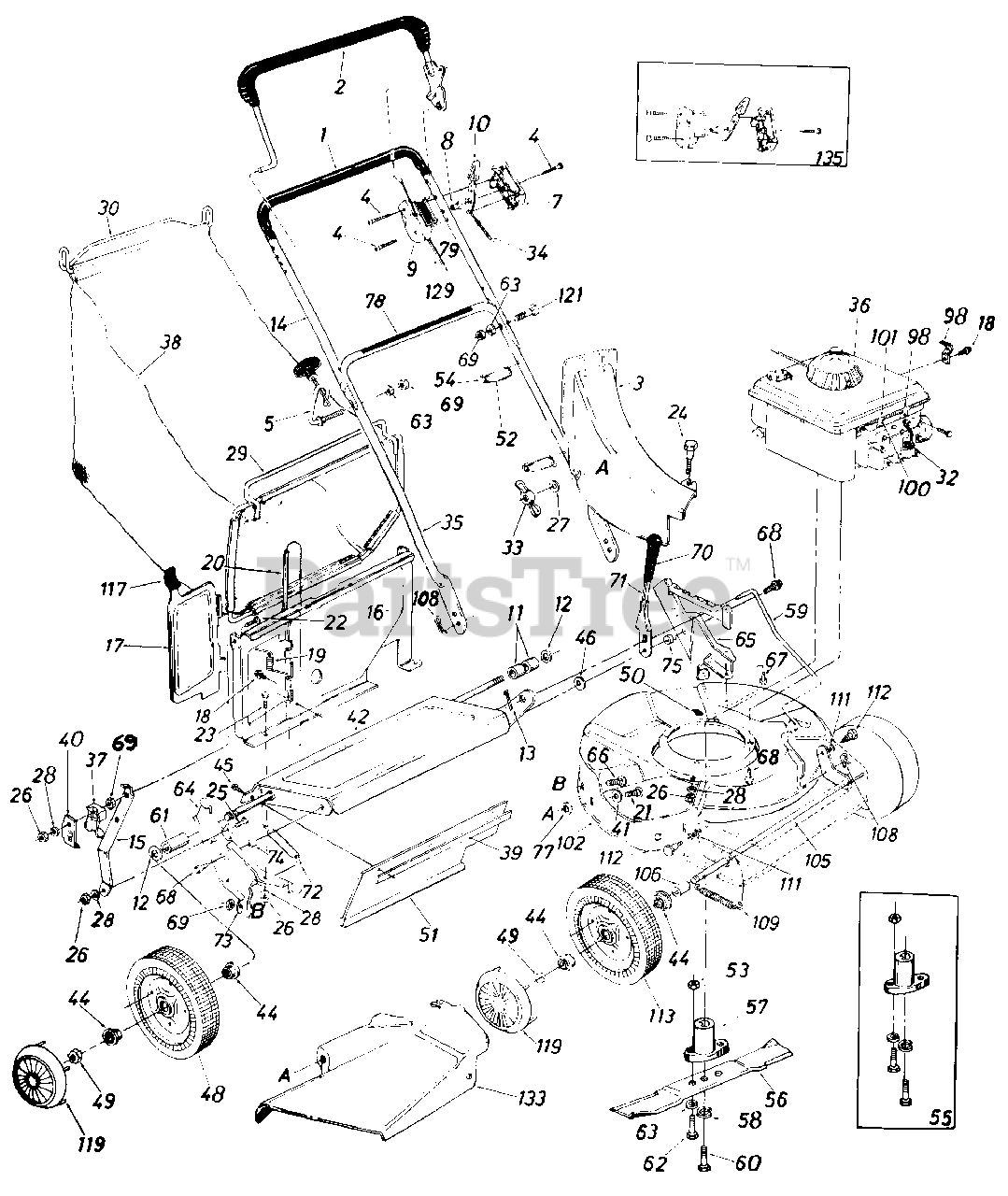

Parts Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 14321

Control Handie Ass'y.-L.H.

$

$

Not available

3

MTD 731-0733

Top Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 710-0842

Rope Guide Bolt

$

$

Not available

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 711-0500

Spacer .526" I.D. x .690" O.D. x . 640 I Lg .

$

$

Not available

12

MTD 736-0108

Fl-Wash. 510 I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

13

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"*

$4.49

$

In Stock, Qty 12

0

14

MTD 749-0436

Upper Handle-Chrome
(Superseded to 749-0438D-0637)

$

$

Not available

15

MTD 16541

Panel Support Brkt.

$

$

Currently unavailable

16

MTD 16140

Top Catcher Panel

$

$

Not available

17

MTD 16145

Top Door

$

$

Currently unavailable

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483

Torsion Spring
(Superseded to 732-0483A)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 736-0463

Fl-Wash. .280" I.D. x .620"

$4.49

$

In Stock, Qty 12

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0494

Front Grass Catcher Frame

$

$

Not available

30

MTD 747-0495

Grass Catcher Handle

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0109

Wing Nut

$

$

Not available

34

MTD 746-0633

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0505

Lower Handle-Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

MTD 751-0434

Rope Guide Half
(Superseded to 719-0279)

$15.99

$

Usually ships in 3-6 days

0

38

MTD 764-0212

21" Top Discharge Grass Bag

$

$

Currently unavailable

39

MTD 14835

Retaining Strip

$

$

Not available

40

MTD 732-0528

Rope Retainer Spring Clip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

MTD 16131

Rear Axle Ass'y.

$

$

Not available

44

MTD 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0258

Fl-Wash. .38" I.D. x 1.0"

$4.49

$

Usually ships in 3-6 days

0

48

MTD 734-0924

Rear Wheel Ass'y.-Comp. 8 x 1 .75

$

$

Not available

49

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0671

Rear Flap 3.75" x 17.30" Lg.

$

$

Currently unavailable

52

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

53

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

54

MTD 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

56

MTD 742-0289

21" Blade

$

$

Not available

57

MTD 719-0262

Blade Adapter

$

$

Currently unavailable

58

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

59

MTD 747-0496

Height Adj. Rod. 19.42" Lg.

$

$

Not available

60

MTD 710-0331

Hex Bolt 3/8-24 x .25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

61

MTD 748-0190

Spacer .513" I.D. x .703" O.D.

$6.49

$

In Stock, Qty 11

0

62

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-1 8

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 4 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0143

Grip

$

$

Not available

71

MTD 732-0473

Height Adj. Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring .50" O.D. x 3.80" Lg.
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Bell-Wash. .344" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

MTD 750-0624

Shld. Spacer .500" Dia. x .100

$

$

Not available

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

78

MTD 777-5776

Instruction Label

$

$

Currently unavailable

79

MTD 777-5773

Control Label

$

$

Currently unavailable

98

MTD 12894

Casing Clamp

$

$

Not available

100

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

MTD 751-0442

Casing Clamp

$

$

Not available

102

MTD 16125

21"-Deck Ass'y.

$

$

Currently unavailable

105

MTD 10662

Front Axle Ass'y.

$

$

Currently unavailable

106

MTD 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.

$

$

Not available

108

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring .50" O.D. x 3.20" Lg.

$

$

Not available

111

MTD 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

MTD 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

MTD 734-0922

Front-Wheel Ass'y. Comp. 7 x 1.50

$

$

Not available

117

MTD 720-0208

Door Grip

$

$

Not available

119

MTD 731-0354

Hub Cap-Plastic-Black

$

$

Not available

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

129

MTD 746-0477

Control Cable-43" Lg.
(Superseded to 946-0477A)

$

$

Not available

133

MTD 16559

Side Chute Deflector Ass'y.

$

$

Not available

135

MTD 753-0430

Kit-Control Housing Comp.

$

$

Not available

MTD 8112-000-6

Hardware Pack

$

$

Currently unavailable
