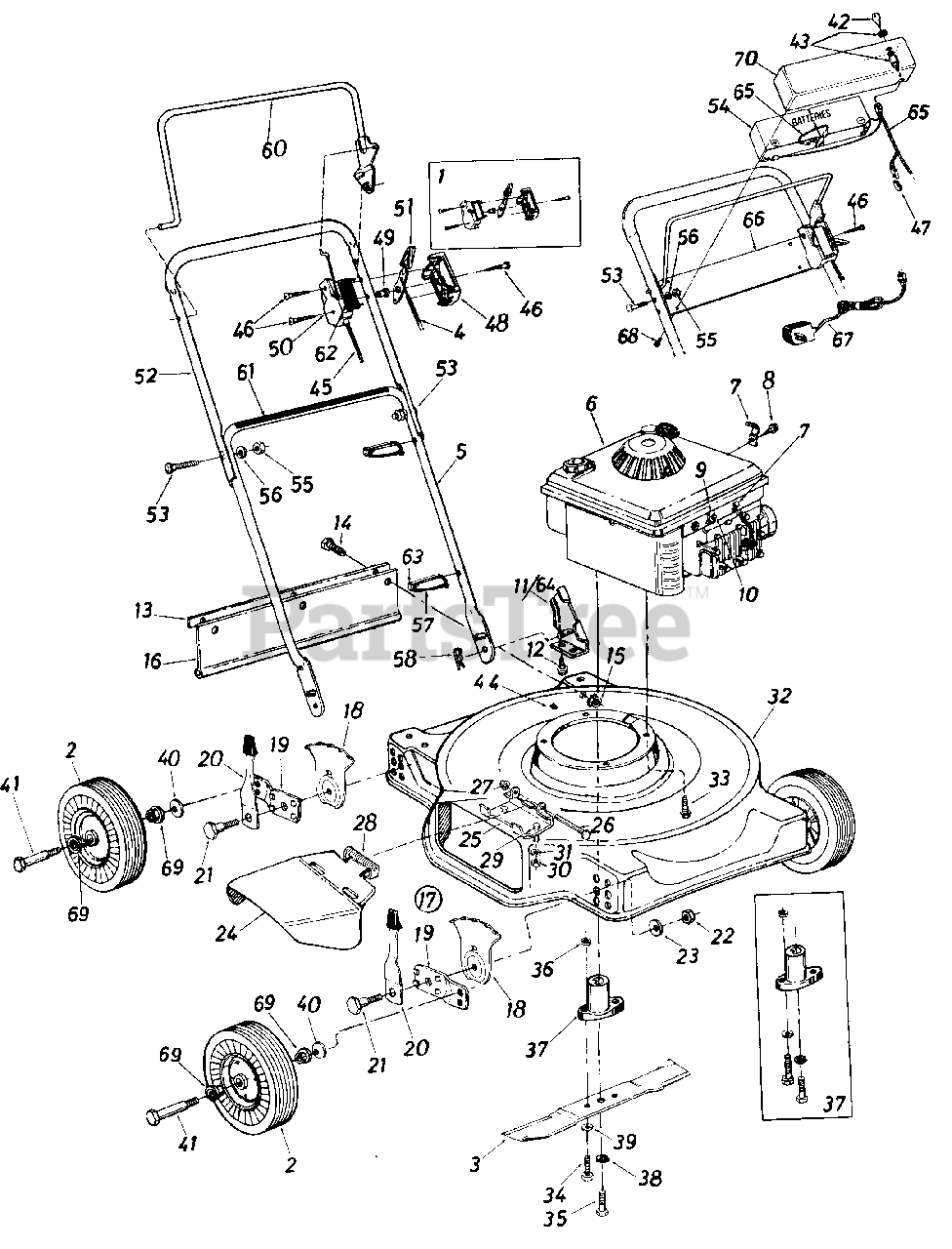

116-076-000 - MTD Walk-Behind Mower (1986) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 753-0430

Kit-Control Housing Comp.

$

$

Not available

2

MTD 734-0924

Wheel Ass'y.

$

$

Not available

3

MTD 742-0123

Blade-20"

$

$

Not available

4

MTD 746-0632

Throttle Control Wire-53"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

5

MTD 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

6

Engine

$

$

Not available

7

MTD 12894

Casing Clamp

$

$

Not available

8

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

9

MTD 751-0442

Casing Clamp

$

$

Not available

10

MTD 710-0436

Hex AB-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

11

MTD 12935

Handle Mount Brkt.-L.H.

$

$

Not available

12

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

MTD 14846

Retaining Strip

$

$

Not available

14

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.*

$4.49

$

In Stock, Qty 20+

0

16

MTD 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

17

MTD 14578

Height Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

18

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

20

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

21

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, only 4 left!

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

23

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 14944

Chute Deflector Ass'y.-Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

25

MTD 11130

Deflector Hinge Plate

$

$

Not available

26

MTD 711-0555

Pivot Pin

$

$

Not available

27

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

28

MTD 732-0253

Torsion Spring

$

$

Not available

29

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd. *
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

31

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

MTD 14995

20" Deck Ass'y.

Variations

MTD 14995-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14995-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 14995-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14995-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

33

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

34

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

36

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

37

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

38

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 8

0

39

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

41

MTD 738-0102

Shld. Bolt .498" Dia. x 1.450" Lg.

$9.99

$

In Stock, Qty 10

0

42

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

43

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

44

MTD 731-0564

Plug

$

$

Not available

45

MTD 746-0476

Control Cable-39"
(Superseded to 946-0476A)

$

$

Not available

46

MTD 710-0796

Truss. Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

47

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

48

MTD 731-0817

Control Panel Half

$

$

Not available

49

MTD 731-0524

Control Disc Pin

$

$

Not available

50

MTD 731-0816

Clutch Panel Half

$

$

Not available

51

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

MTD 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

53

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

54

MTD 725-1105

Battery Pack

$

$

Not available

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

58

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

MTD 14579

Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

60

MTD 731-0609

Control Handle-L.H.

$

$

Not available

61

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

62

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

63

MTD 726-0241

Cable Anchor
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

64

MTD 12936

Handle Mount Brkt.-R.H.

Note: (Not Shown)

$

$

Not available

65

MTD 725-1230

Wire Harness

$

$

Currently unavailable

66

MTD 16542

Lower Battery Tray

$

$

Currently unavailable

67

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

68

MTD 710-0969

Truss Mach. Hi-Riser Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

69

MTD 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

70

MTD 731-0809

Battery Tray

$

$

Currently unavailable
