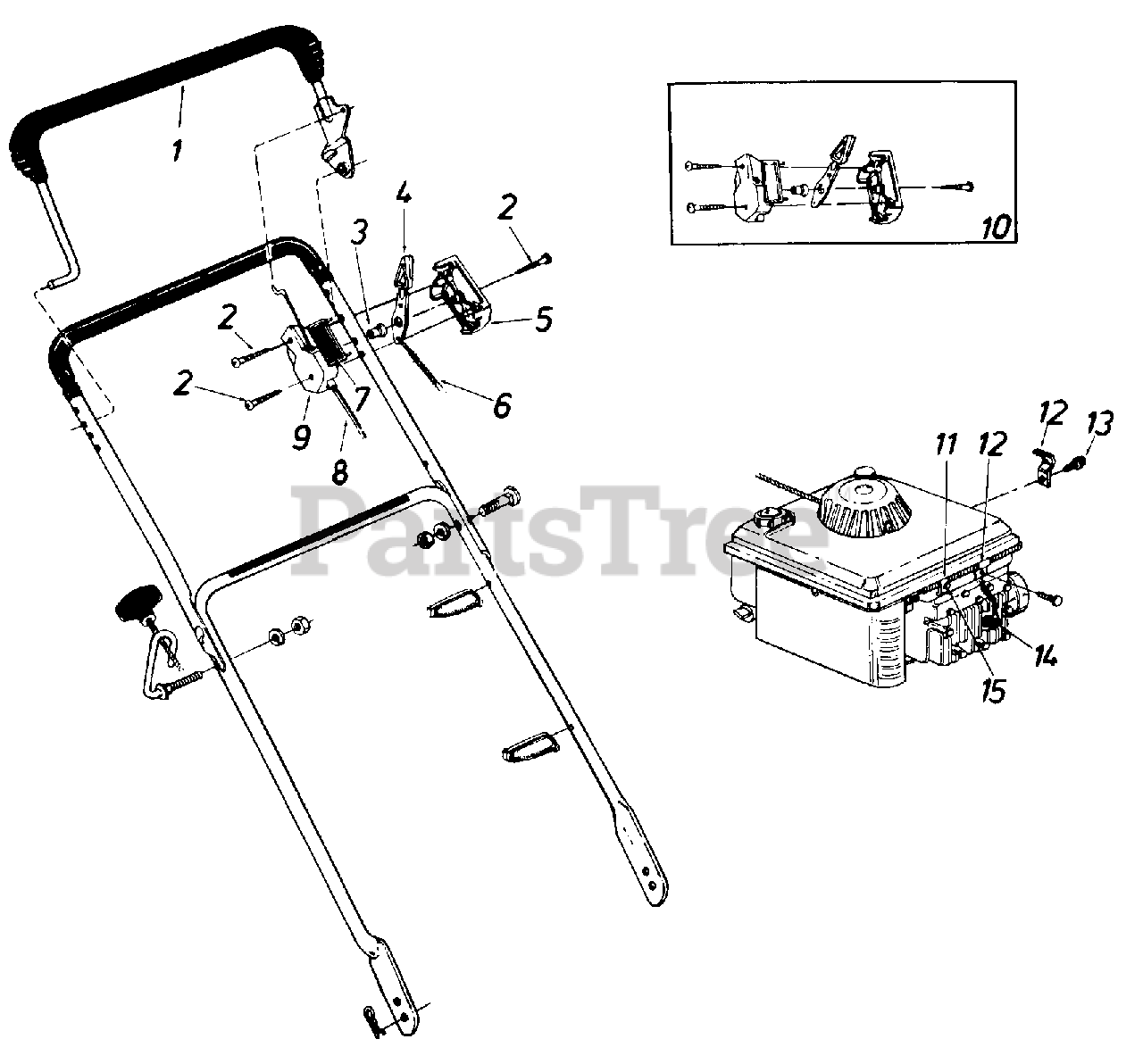

116-062-314 - Power Tech Walk-Behind Mower (1986) Changes Parts Diagram

Walk-Behind Mower

Changes Parts Diagram

  • Title

1

MTD 14321

Control Handle Ass'y.

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0524

Control Disc Pin

$

$

Not available

4

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0817

Control Panel Half

$

$

Not available

6

MTD 746-0632

Throttle Control Wire-53"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

7

MTD 777-5774

Control Label

$

$

Currently unavailable

8

MTD 746-0477

Control Cable-43"
(Superseded to 946-0477A)

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 753-0430

Control Housing Comp.

$

$

Not available

11

MTD 751-0442

Casing Clamp

$

$

Not available

12

MTD 12894

Casing Clamp

$

$

Not available

13

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

14

MTD 735-0639

Spark Plug Insulator

$

$

Not available

15

MTD 710-0436

Hex B-TaP Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0
