116-030A190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1996) Main Assembly Parts Diagram

Lawn Boss 20" Walk-Behind Mower

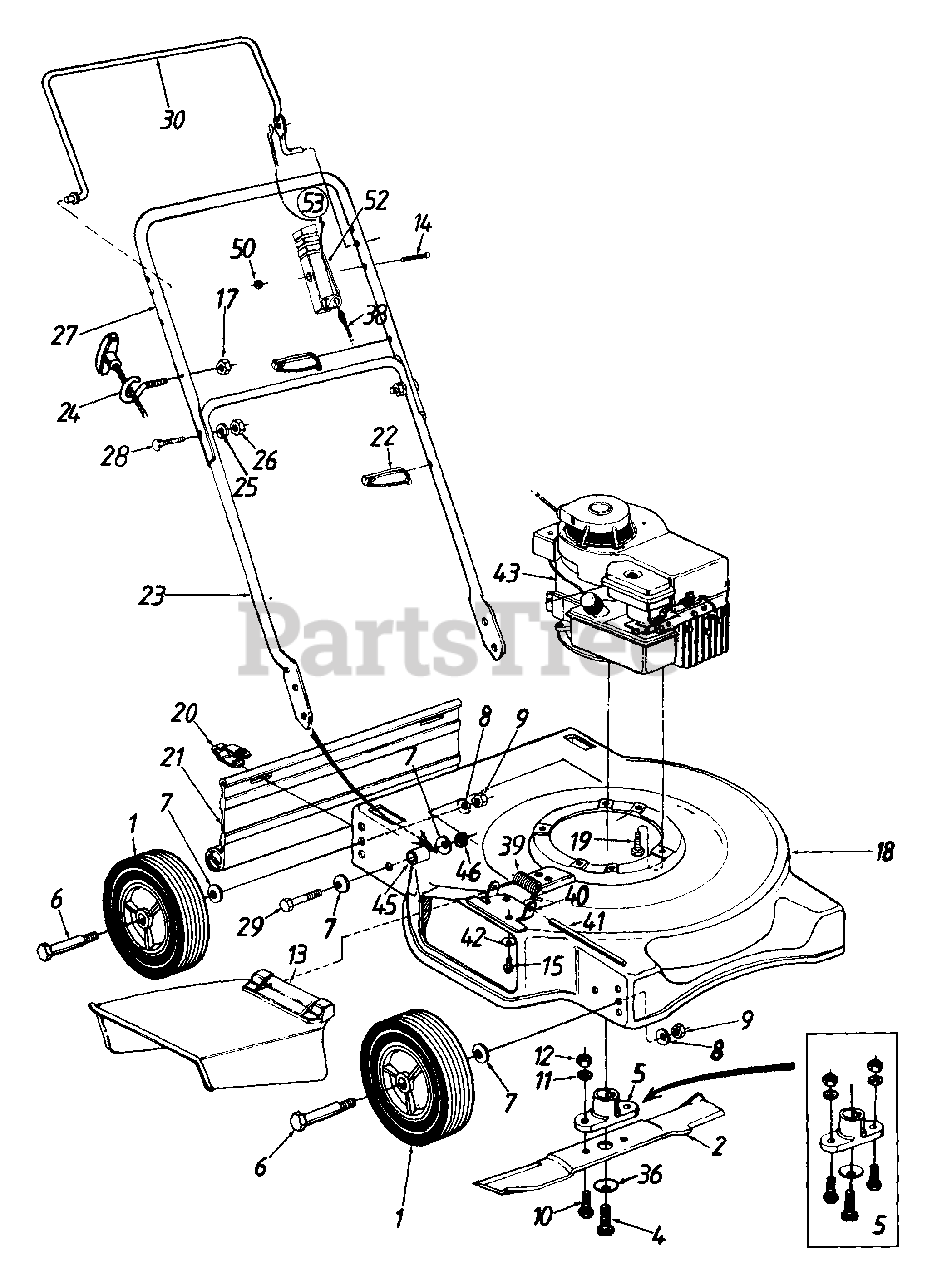

Main Assembly Parts Diagram

  • Title

1

White Outdoor 734-1799

Wheel Ass'y. Complete
(Superseded to 734-04062A)

$23.99

$

Usually ships in 3-6 days

0

2

White Outdoor 742-0620

20" Blade
(Superseded to 942-0620)

$

$

Not available

4

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 7

0

5

White Outdoor 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

6

White Outdoor 738-0533

Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

7

White Outdoor 736-0105

Bell-Wash. .380" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 16

0

9

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

11

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

13

White Outdoor 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

14

White Outdoor 710-1270

Oval C-Sunk Scr.

$4.49

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0599

Self-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

?16

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

18

White Outdoor 782-0030

20" Deck Ass'y.

Variations

White Outdoor 782-0030-0480

No Longer Available DECK ASSEMBLY-20IN - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 782-0030-0498

No Longer Available DECK ASSEMBLY-20IN - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-0030-0638

No Longer Available DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0030-0648

No Longer Available DECK ASSEMBLY-20IN - TECH GRAY (0648)

$

$

Not available

White Outdoor 782-0030-0650

No Longer Available DECK ASSEMBLY-20IN - RED METALLIC (0650)

$

$

Not available

White Outdoor 782-0030-0665

No Longer Available DECK ASSEMBLY-20IN - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0030-0674

No Longer Available DECK ASSEMBLY-20IN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

19

White Outdoor 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

20

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

21

White Outdoor 731-0872A

Rear Flap 16.69" Lg.
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

22

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

White Outdoor 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

24

White Outdoor 747-1205

Rope Guide
(Superseded to 710-1205)

$3.99

$

In Stock, only 2 left!

0

25

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

27

White Outdoor 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

White Outdoor 749-0538C-0637

UPPER HANDLE BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-1250

Curved Carriage Bolt 5/16-18 x 1" Lg.

$4.99

$

In Stock, Qty 5

0

29

White Outdoor 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

30

White Outdoor 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

White Outdoor 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

36

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

38

White Outdoor 746-0553

Control Cable - 36"
(Superseded to 946-0553)

$24.99

$

Usually ships in 3-6 days

0

39

White Outdoor 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

40

White Outdoor 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

41

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

43

Engine

$

$

Not available

45

White Outdoor 750-0910

Spacer
(Superseded to 950-0910)

$

$

Not available

46

White Outdoor 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

50

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

52

White Outdoor 746-0883

Control Cable Box

$16.99

$

In Stock, only 4 left!

0

53

UNKNOWN

$

$

Not available
