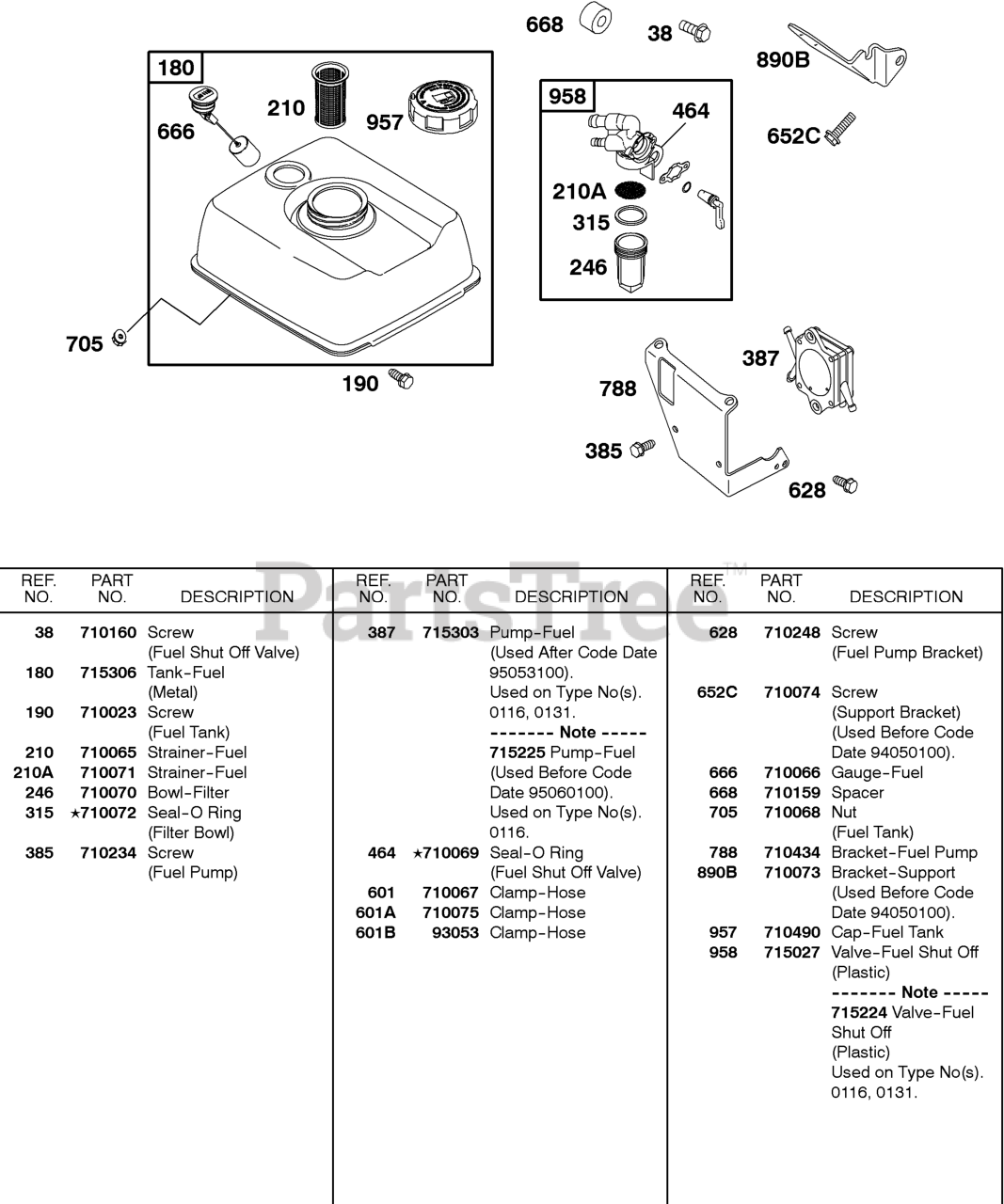

115432-0131-01 - Briggs & Stratton Horizontal Engine Fuel Supply Parts Diagram

Horizontal Engine

Fuel Supply Parts Diagram

  • Title

38

Briggs & Stratton 710160

Screw

Note: (Shut Off Valve)

$3.99

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 715306

Tank-Fuel
(Superseded to 716147)

Note: (Metal)

$265.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 710023

Screw

Note: (Fuel Tank)

$3.99

$

In Stock, Qty 14

0

210

Briggs & Stratton 710065

Strainer-Fuel

$16.99

$

Usually ships in 2-12 days

0

210A

Briggs & Stratton 710071

Strainer-Fuel

$5.99

$

Usually ships in 2-12 days

0

246

Briggs & Stratton 710070

Bowl-Fuel Filter

$

$

Not available

315

Briggs & Stratton 710072

Seal-O Ring

Note: (Filter Bowl)

$6.99

$

In Stock, only 1 left!

0

385

Briggs & Stratton 710234

Screw

Note: (Fuel Pump)

$4.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 715303

Pump-Fuel

Note: Used After Code Date 95053100

$90.99

$

Usually ships in 2-12 days

0

464

Briggs & Stratton 710069

Seal-O Ring

Note: (Fuel Shut-off Valve)

$

$

Not available

628

Briggs & Stratton 710248

Screw

Note: (Fuel Pump Bracket)

$3.99

$

Usually ships in 2-12 days

0

652C

Briggs & Stratton 710074

Screw

Note: (Support Bracket) Used Before Code Date 94050100

$3.99

$

Usually ships in 2-12 days

0

666

Briggs & Stratton 710066

Gauge-Fuel

$33.99

$

In Stock, only 1 left!

0

668

Briggs & Stratton 710159

Spacer

$5.49

$

In Stock, only 2 left!

0

705

Briggs & Stratton 710068

Nut

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 710434

Bracket-Fuel Pump

$22.99

$

Usually ships in 2-12 days

0

890B

Briggs & Stratton 710073

Bracket-Support

Note: Used Before Code Date 94050100

$11.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 710490

Cap-Fuel Tank

Note: (Plastic)

$21.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 715224

Valve-Fuel Shut Off

Note: (Plastic)

$71.99

$

Usually ships in 2-12 days

0
