11530 PC (31AH55K5897) - Columbia 30" Snow Thrower (2011) Handle & Panel Assembly Parts Diagram

30" Snow Thrower

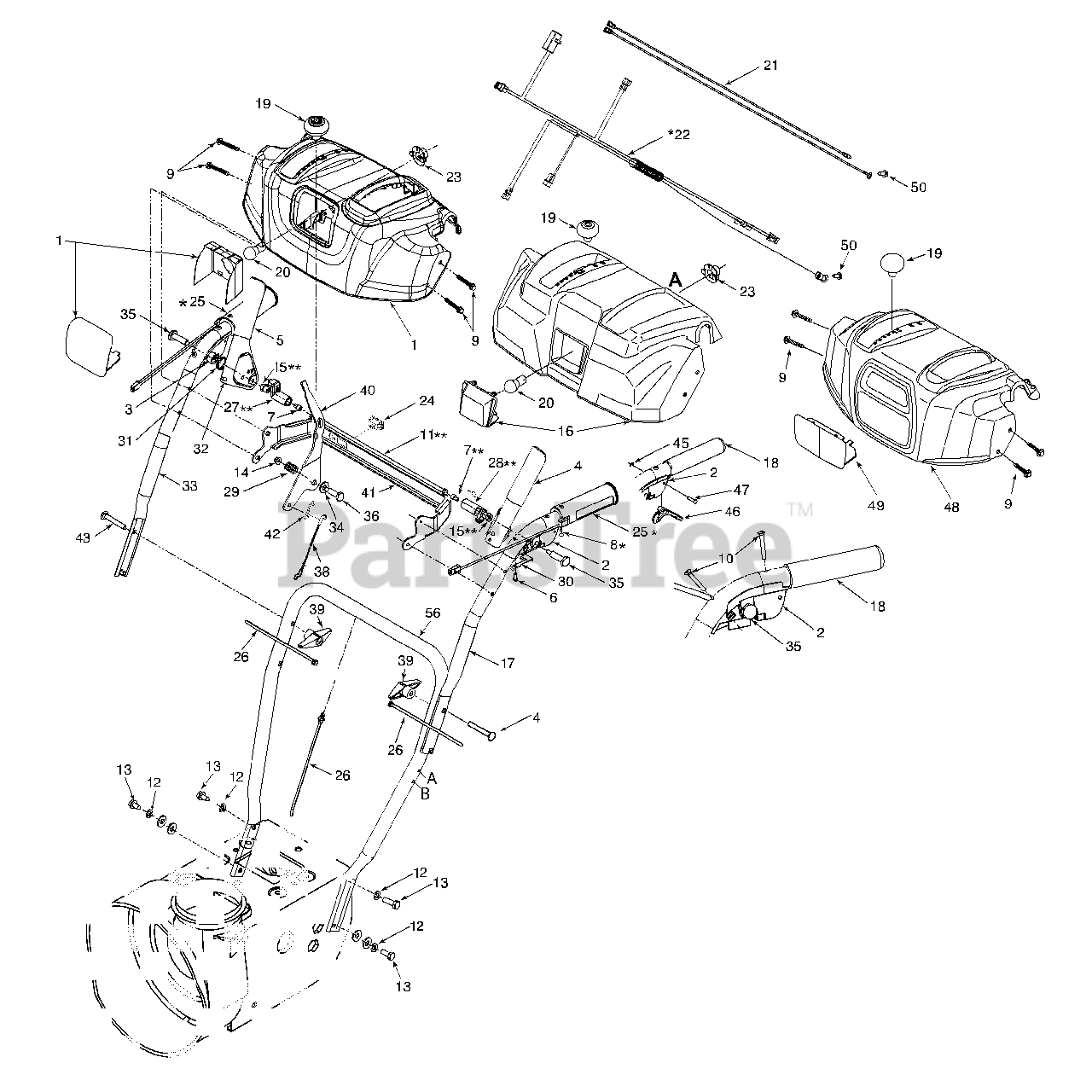

Handle & Panel Assembly Parts Diagram

  • Title

1

MTD 631-04180

Handle Panel Ass’y - Yellow

$83.99

$

Usually ships in 3-6 days

0

1

MTD 631-04185

Handle Panel Ass’y - Black

$84.99

$

Usually ships in 3-6 days

0

1

MTD 931-04183

Handle Panel Ass’y-Black w/Chute Control

$108.99

$

Usually ships in 3-6 days

0

1

MTD 931-05348A

Handle Panel Ass’y-Grey w/Chute Control

$68.99

$

Usually ships in 3-6 days

0

2

MTD 631-04133A

LH Clutch Lock Handle Ass’y

$15.99

$

In Stock, Qty 7

0

3

MTD 631-04134B

RH Clutch Lock Handle Ass’y

$15.99

$

Usually ships in 3-6 days

0

4

MTD 684-04105B

Engagement Handle Assembly LH - Black
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

4

MTD 684-04111B

Engagement Handle Assembly LH - Red
(Superseded to 684-04111D)

$22.99

$

Usually ships in 3-6 days

0

5

MTD 684-04106B

Engagement Handle Assembly RH - Black
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

MTD 684-04112B

Engagement Handle Assembly RH - Red
(Superseded to 684-04112D)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 710-04326

Screw #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-3069

Hex Cap Socket Screw 1/4-20 x .5

$4.99

$

In Stock, Qty 10

0

8

MTD 710-0837

Oval HD C-Sunk Scr #10 x 5/8

$4.49

$

In Stock, Qty 5

0

9

MTD 710-04586

Hex TT-Tap Scr 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

10

MTD 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 684-04250

Pivot Rod

$12.99

$

In Stock, only 2 left!

0

12

MTD 936-0119

Lockwasher 5/16 ID

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-1880

Hex TT Screw 5/16-18 x .75 Gr. 5 Patch

$4.99

$

In Stock, Qty 11

0

14

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04081A

Hex Shoulder Nut 1/4-20

Note: Models with auger control lock

$7.49

$

In Stock, Qty 20+

0

15

MTD 712-04064

Hex L-Flg Nut 1/4-20 Gr. F Nylon

Note: Models without auger control lock

$3.99

$

In Stock, Qty 20+

0

16

MTD 931-05332A

Handle Panel Ass’y - Troy-Bilt
(Superseded to 931-04181A)

$59.99

$

Usually ships in 3-6 days

0

17

MTD 749-04191A-0637

Upper Handle LH - Powder Black

$45.99

$

Usually ships in 3-6 days

0

18

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

19

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

19

MTD 720-04045

Shift Knob - Yellow

$

$

Not available

20

MTD 725-1629

Lamp (179 cc/208 cc engines)
(Superseded to 925-1629)

Note: 370-SUB-11 Engine

$11.99

$

In Stock, Qty 11

0

20

MTD 725-05326

Lamp (277 cc/347 cc & 420 cc engines)

Note: 478-SUA & 483-SUA Engine

$4.49

$

In Stock, Qty 9

0

21

MTD 925-04137

Wire Harness

$20.99

$

Usually ships in 3-6 days

0

22

MTD 725-05148

Wire Harness Heated Grip

$69.99

$

Usually ships in 3-6 days

0

23

MTD 925-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

24

MTD 725-04393

Switch

$16.99

$

Usually ships in 3-6 days

0

25

MTD 725-05149

Heated Grip

$80.99

$

Usually ships in 3-6 days

0

26

MTD 926-0154

Cable Tie (w/plug)

$6.49

$

Usually ships in 3-6 days

0

26

MTD 725-0157

Cable Tie (w/heated grips)

$3.99

$

In Stock, Qty 20+

0

27

MTD 731-04894D

Lock Plate

Note: Models with auger control lock

$5.49

$

In Stock, Qty 9

0

28

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

Note: Models with auger control lock

$4.49

$

In Stock, Qty 20+

0

29

MTD 732-0193

Compression Spring .38 ID x .88 Lg

$4.99

$

In Stock, Qty 6

0

30

MTD 732-04219C

Spring: Clutch Lock

$4.49

$

In Stock, Qty 20+

0

31

MTD 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

32

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

33

MTD 749-04190A-0637

Upper Handle RH - Powder Black

$45.99

$

Usually ships in 3-6 days

0

34

MTD 936-0267

Flat Washer .38 ID x .87 OD x .09
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

35

MTD 738-04348

Shoulder Screw .437 x 1.345: 1/4-20

$3.99

$

In Stock, Qty 20+

0

36

MTD 738-04125

Shoulder Screw .374 Dia. x 1.05 Lg.

$4.99

$

In Stock, only 3 left!

0

37

MTD 936-0275

Flat Washer .344 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

38

MTD 946-04396A

Selector Speed Cable

$20.99

$

In Stock, Qty 20+

0

39

MTD 920-0284

Handle Knob Assembly
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

40

MTD 790-00311A

Shift Lever

Variations

MTD 790-00311A-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 5

0

$22.99

$

Usually ships in 3-6 days

0

41

MTD 790-00248B-0637

Panel Support
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

42

MTD 914-0145

Cotter Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

43

MTD 710-0572

Carriage Bolt 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0

44

MTD 749-04138A-0637

Lower Handle - Powder Black
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

45

MTD 716-04036

E Ring

$6.49

$

In Stock, Qty 20+

0

46

MTD 731-04913

Steering Control - Black

$5.49

$

Usually ships in 3-6 days

0

46

MTD 731-04954

Steering Control - Yellow

$5.99

$

In Stock, Qty 20+

0

47

MTD 738-04126

Pin 3/16

$3.99

$

In Stock, Qty 20+

0

48

MTD 931-04187A

Handle Panel Ass’y - Red (w/lens)

$71.99

$

Usually ships in 3-6 days

0

49

MTD 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

50

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0
