11530 GC (31AH9775897) - Columbia 30" Snow Thrower (2014) Handle Panel Parts Diagram

30" Snow Thrower

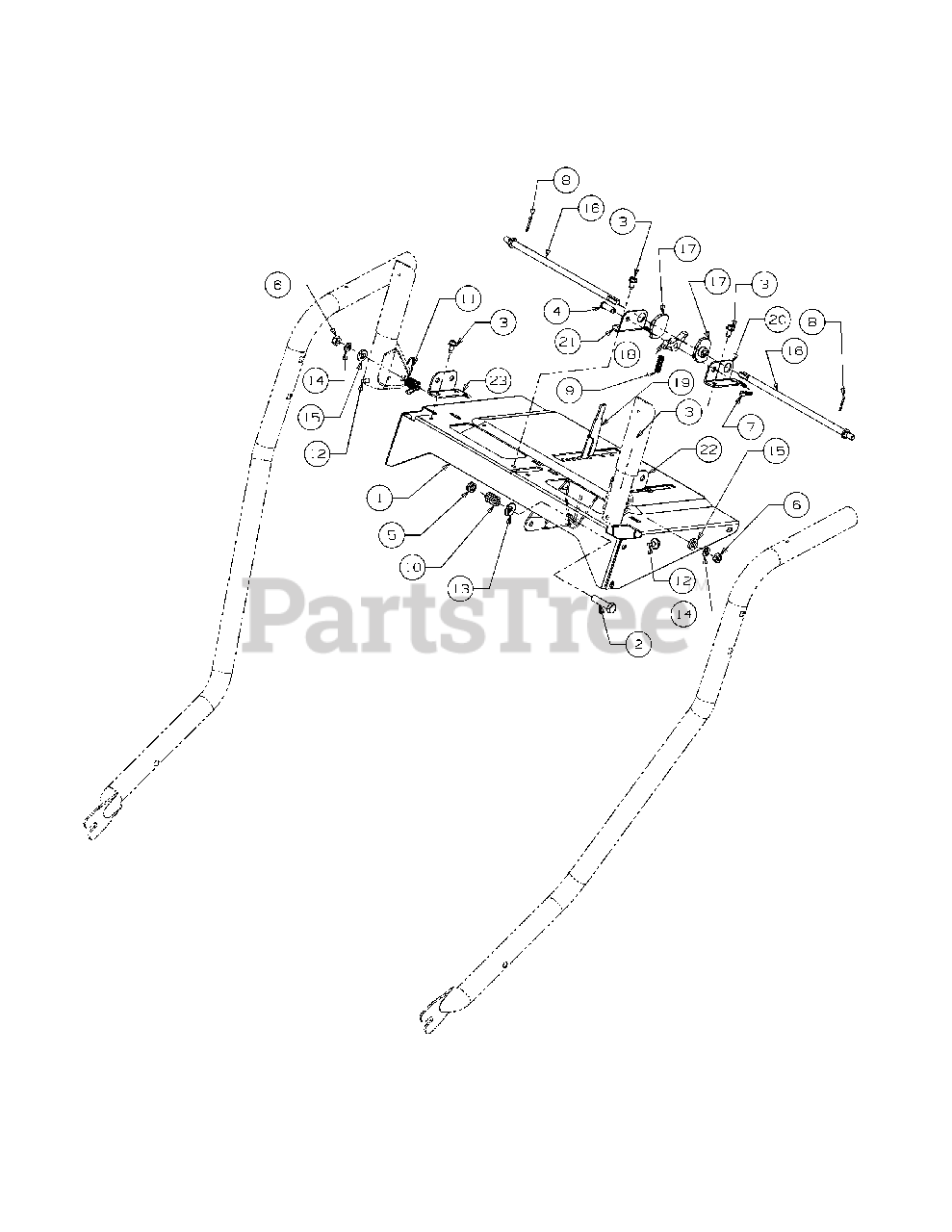

Handle Panel Parts Diagram

  • Title

1

MTD 684-0102A-0637

Handle Panel Support Ass’y
(Superseded to 684-0102A)

$133.99

$

Usually ships in 3-6 days

0

2

MTD 710-0520

Screw-Hex 3/8-16 X

$4.49

$

In Stock, Qty 5

0

3

MTD 710-0599

Scr:Tt:L/4-20:0.500:Hxindwsh

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

5

MTD 912-3020

Nut-Top Lock

$6.49

$

In Stock, Qty 10

0

6

MTD 912-3009

Nut-Hex Center L
(Superseded to 712-3009)

$

$

Not available

7

MTD 914-0104

Pin:Cot:.072 Dia
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

8

MTD 914-0507

Pin-Cotter-3/32

$4.49

$

In Stock, Qty 17

0

9

MTD 732-0145

Spring-Compression

$4.49

$

Usually ships in 3-6 days

0

10

MTD 732-0193

Spring-Compression

$4.99

$

In Stock, Qty 6

0

11

MTD 732-0746

Spring-Return

$4.49

$

In Stock, Qty 13

0

12

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

13

MTD 736-0105

Wash1Spr1 .401 X .870 X .083

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0119

Washer-Lock 5/16

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0509

Washer-Spec

$6.99

$

In Stock, only 1 left!

0

16

MTD 747-0877

Cam-Rod

$22.99

$

Usually ships in 3-6 days

0

17

MTD 748-0362

Handle-Lockcam

$7.99

$

Usually ships in 3-6 days

0

18

MTD 948-0363

Pawl-Handle Lock

$16.99

$

Usually ships in 3-6 days

0

19

MTD 784-5619B-0637

Hndl:Shft:S/T

$28.99

$

Usually ships in 3-6 days

0

20

MTD 784-5679-0637

Brkt:Hndl Supt:S/B:Lh

$8.99

$

Usually ships in 3-6 days

0

21

MTD 784-5680-0637

Bracket-Handle

$12.99

$

Usually ships in 3-6 days

0

22

MTD 784-5681

Bracket-Handle Sup

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

23

MTD 784-5682-0637

Bracket-Handle

$28.99

$

Usually ships in 3-6 days

0
