11530 GC (31AH9775897) - Columbia 30" Snow Thrower (2012) Handles, Panel & Discharge Chute Parts Diagram

30" Snow Thrower

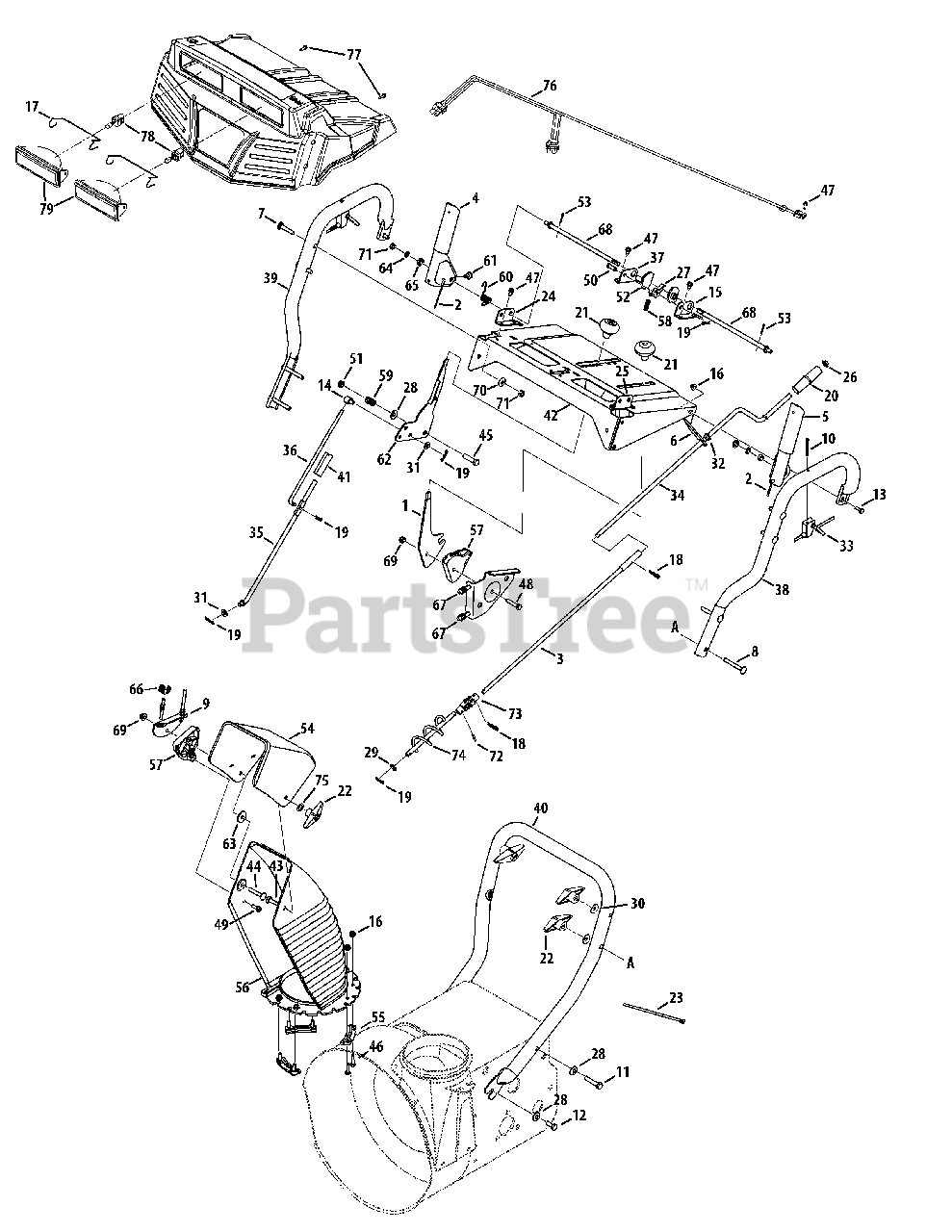

Handles, Panel & Discharge Chute Parts Diagram

  • Title

1

MTD 784-5604A-0637

Chute Tilt Handle

$25.99

$

Usually ships in 3-6 days

0

2

MTD 646-0012

Cable Ass’y (Auger/Drive)

$36.99

$

In Stock, only 1 left!

0

3

MTD 684-04309A

Lower Chute Crank Assembly

Variations

MTD 684-04309A-0637

ROD ASM-CHUTE CRAN - POWDER BLACK (0637)

$59.99

$

Usually ships in 3-6 days

0

$47.99

$

In Stock, only 1 left!

0

4

MTD 705-5218

Engage Handle RH Black

$37.99

$

Usually ships in 3-6 days

0

5

MTD 705-5219

Engagement Handle LH Black

$37.99

$

Usually ships in 3-6 days

0

6

MTD 705-5266-0637

Upper Chute Crank Support

$15.99

$

Usually ships in 3-6 days

0

7

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

8

MTD 710-0572

Carriage Bolt 5/16-18 X 2.50

$4.49

$

In Stock, Qty 20+

0

9

MTD 784-5594

Cable Bracket Chute Tilt

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

10

MTD 710-1625

Screw, #10-24 x 1.75

$6.99

$

Usually ships in 3-6 days

0

11

MTD 710-04682

Hex Screw 3/8-16 x 2.0

$5.99

$

Usually ships in 3-6 days

0

12

MTD 710-3118

Hex TT Screw 3/8-16 x .75

$5.49

$

Usually ships in 3-6 days

0

13

MTD 710-3015

Hex Cap Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

14

MTD 911-0677

Adjustment Ferrule

$17.99

$

In Stock, only 4 left!

0

15

MTD 784-5679-0637

LH Handle Support Brkt. 5/8"

$8.99

$

Usually ships in 3-6 days

0

16

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

MTD 747-1136

Retainer

$11.99

$

Usually ships in 3-6 days

0

18

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

19

MTD 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

MTD 720-0201A

Knob 1.0 x 3.2

$10.99

$

In Stock, Qty 5

0

21

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

22

MTD 920-0284

Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

23

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

24

MTD 784-5682-0637

RH Handle Support Brkt. 3/8"

$28.99

$

Usually ships in 3-6 days

0

25

MTD 784-5681

LH Handle Support Brkt. 3/8"

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

26

MTD 926-0100

Push Nut 3/8" Rod
(Superseded to 726-0100)

$

$

Not available

27

MTD 948-0363

Cam Lock Pawl

$16.99

$

Usually ships in 3-6 days

0

28

MTD 736-0105

Cupped Washer .375 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

29

MTD 936-0185

Flat Washer .406" I.D. x .75" O.D.
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0275

Flat Washer .34 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

32

MTD 941-0475

Plastic Bushing .380 ID

$4.49

$

In Stock, Qty 20+

0

33

MTD 746-0950A

Steering Trigger

$22.99

$

Usually ships in 3-6 days

0

34

MTD 747-0624-0637

Upper Chute Crank Assembly

$24.99

$

Usually ships in 3-6 days

0

35

MTD 747-0983A

Lower Shift Rod

$45.99

$

Usually ships in 3-6 days

0

36

MTD 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

37

MTD 784-5680-0637

RH Handle Support Brkt. 5/8"

$12.99

$

Usually ships in 3-6 days

0

38

MTD 749-0989A-0637

Upper Handle LH

$91.99

$

Usually ships in 3-6 days

0

39

MTD 749-0990A-0637

Upper Handle RH

$94.99

$

Usually ships in 3-6 days

0

40

MTD 749-0991-0637

Lower Handle

$79.99

$

Usually ships in 3-6 days

0

41

MTD 950-0963

Connector - Shift Rod

$34.99

$

In Stock, only 3 left!

0

42

MTD 684-0102A-0637

Handle Panel Support Ass’y
(Superseded to 684-0102A)

$133.99

$

Usually ships in 3-6 days

0

43

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 10

0

44

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

45

MTD 710-0459A

Hex Scr 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

46

MTD 710-0597

Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

47

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0805

Hex Bolt 5/16-18 x 1,50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.49

$

Usually ships in 3-6 days

0

50

MTD 711-0653

Clevis Pin .31 Dia. x 1.0" Lg.

$3.99

$

Usually ships in 3-6 days

0

51

MTD 912-3020

Hex Nut 3/8-16 Gr. 5 Nylon

$6.49

$

In Stock, Qty 10

0

52

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

53

MTD 914-0507

Cotter Pin 3/32 x .75

$4.49

$

In Stock, Qty 17

0

54

MTD 731-0846C

Upper Chute

$52.99

$

In Stock, only 4 left!

0

55

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

56

MTD 731-0903E

Lower Chute

$43.99

$

In Stock, Qty 20+

0

57

MTD 731-1313C

Cable Guide

$11.99

$

In Stock, Qty 20+

0

58

MTD 732-0145

Compression Spring .62 OD x 6.12" Lg.

$4.49

$

Usually ships in 3-6 days

0

59

MTD 732-0193

Compression Spring .38 ID x .88 Lg

$4.99

$

In Stock, Qty 6

0

60

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

61

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

62

MTD 784-5619B-0637

Shift Lever

$28.99

$

Usually ships in 3-6 days

0

63

MTD 936-0231

Flat Washer .344 ID x 1.125 OD x .125
(Superseded to 736-0231)

$

$

Not available

64

MTD 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

65

MTD 736-0509

Flat Washer (special) .350 sq. x .72 x .134

$6.99

$

In Stock, only 1 left!

0

66

MTD 731-07868

Cable Clip

$3.49

$

In Stock, Qty 13

0

67

MTD 946-0903

Chute Control Cable w/clip

$53.99

$

In Stock, only 1 left!

0

68

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

69

MTD 712-04063

Hex L-Flanged Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 5

0

70

MTD 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

71

MTD 912-3009

Hex Patch L-Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

72

MTD 715-04095

Spiral Pin .156 Diam x .80" Lg.

$5.49

$

In Stock, Qty 20+

0

73

MTD 684-04350

Joint Block Ass’y

$29.99

$

In Stock, Qty 5

0

74

MTD 684-04308A

Chute Crank Assembly

$39.99

$

Usually ships in 3-6 days

0

75

MTD 936-0159

Flat Washer .349 ID x .879 OD x .063
(Superseded to 736-0159)

$

$

Not available

76

MTD 725-05151

Wire Harness

$40.99

$

Usually ships in 3-6 days

0

77

MTD 710-1003

Hex Tapp Wash Hd. Scr. #10 x 5/8
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

78

MTD 925-1658

Bulb #890, 12 V, 27 Watt

$60.99

$

In Stock, only 4 left!

0

79

MTD 925-1672

Headlight Housing

$89.99

$

Usually ships in 3-6 days

0

80

MTD 731-04069

Black Handle Panel

$70.99

$

Usually ships in 3-6 days

0
