11530 GC (31AH9575897) - Columbia 30" Snow Thrower (2011) Drive Assembly Parts Diagram

30" Snow Thrower

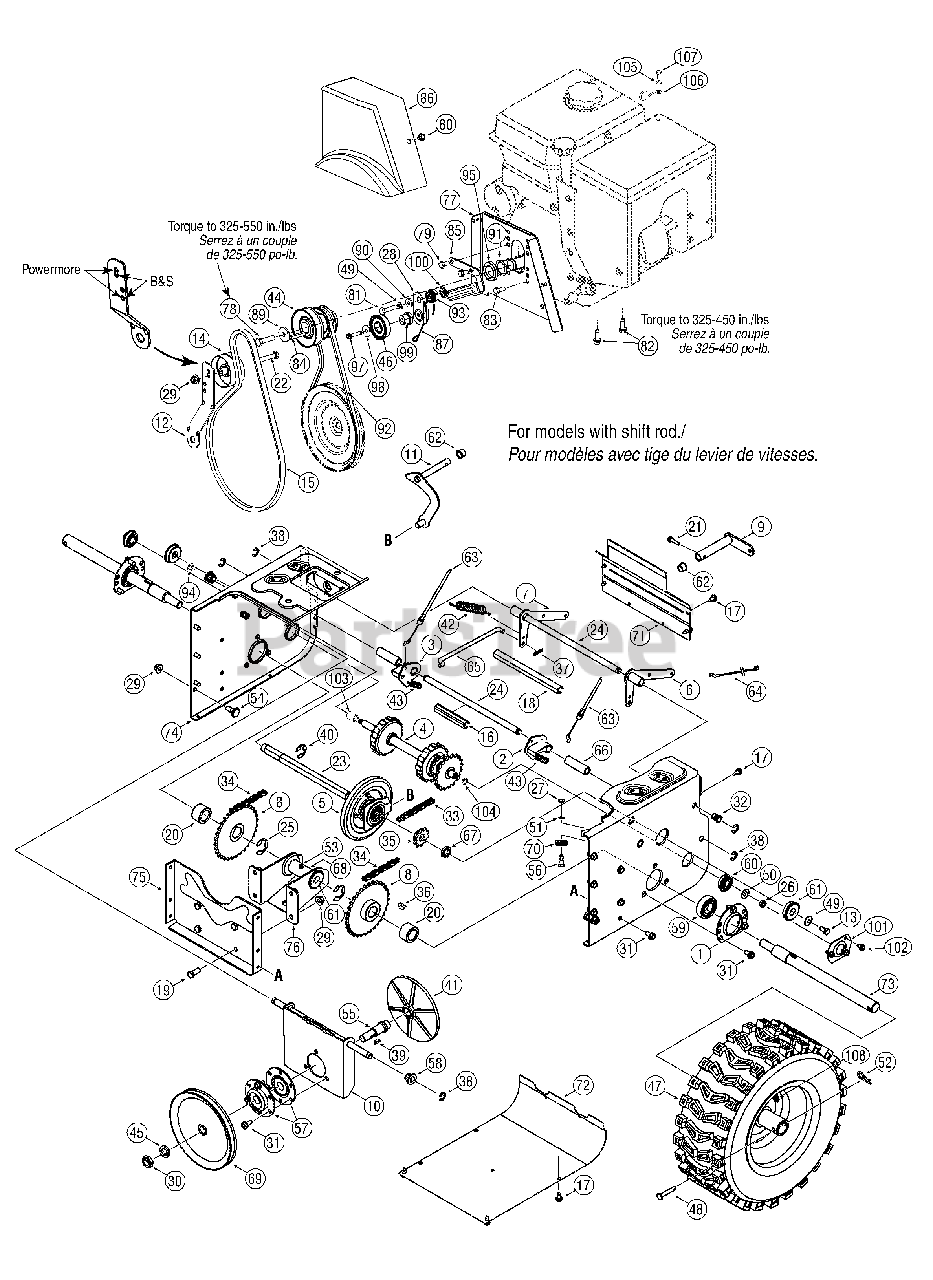

Drive Assembly Parts Diagram

  • Title

1

MTD 05244B

Bearing Housing

$23.99

$

In Stock, only 2 left!

0

2

MTD 618-0279P

LH Dog Assembly
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

MTD 618-0280P

RH Dog Assembly
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

MTD 918-0282E

Steering Shaft Assembly

$559.99

$

Usually ships in 3-6 days

0

5

MTD 918-04178

Wheel Ass’y Bearing 6.0" OD
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 7

0

5

MTD 718-04034

Friction Wheel Bonded

$

$

Not available

5

MTD 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 684-0118B-0637

Actuator Auger Bracket Ass’y

$

$

Not available

7

MTD 684-0119B-0637

Actuator Drive Bracket Ass’y

$

$

Not available

8

MTD 684-04235

32T Sprocket Ass’y

$124.99

$

Usually ships in 3-6 days

0

9

MTD 684-0161-0637

Shift Arm Ass’y

$70.99

$

Usually ships in 3-6 days

0

10

MTD 684-04212-0637

Friction Drive Support

$52.99

$

Usually ships in 3-6 days

0

11

MTD 984-04103

Shift Ass’y Rod

$74.99

$

Usually ships in 3-6 days

0

12

MTD 784-0385D

Auger Idler Bracket

$29.99

$

In Stock, only 1 left!

0

13

MTD 710-0538

Hex L-Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

14

MTD 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

15

MTD 954-04194A

V-Belt 4L x 44.6" Lg.

$22.99

$

In Stock, Qty 20+

0

16

MTD 750-04718

Spacer .51 ID x 3.66" Lg.

$5.49

$

Usually ships in 3-6 days

0

17

MTD 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 750-04717

Spacer .51 ID x 7.895" Lg.

$8.49

$

Usually ships in 3-6 days

0

19

MTD 710-3001

Hex Hd. C-Sunk Scr. 3/8-16 x .880 Gr. 5

$7.49

$

In Stock, Qty 9

0

20

MTD 750-04703

Spacer 1.0 ID x 1.5" Lg.

$12.99

$

Usually ships in 3-6 days

0

21

MTD 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

22

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

23

MTD 911-04279

Hex Drive Shaft

$

$

Not available

24

MTD 711-04605

Actuator Shaft

$

$

Not available

25

MTD 716-04048

Retaining Ring

$

$

Not available

26

MTD 912-0116

Hex Nut 3/8-24
(Superseded to 712-0116)

$

$

Not available

27

MTD 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

28

MTD 790-00208C

Drive Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 12

0

29

MTD 712-04065

Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

30

MTD 912-0413

Hex Jam Locknut 5/8-18 Gr. 5 Nylon
(Superseded to 712-0413)

$

$

Not available

31

MTD 710-04484

TT Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-0717

Nut Insert 3/8-16 UNC

$8.99

$

Usually ships in 3-6 days

0

33

MTD 713-0284

#41 Chain 1/2" pitch x 36 links- Endless

$24.99

$

Usually ships in 3-6 days

0

34

MTD 713-0286

#420 Chain 1/2" pitch x 40 links-Endless

$66.99

$

Usually ships in 3-6 days

0

35

MTD 913-04015

10T Sprocket #41 x .500

$12.99

$

Usually ships in 3-6 days

0

36

MTD 914-0135

Woodruff Key
(Superseded to 714-0135)

$

$

Not available

37

MTD 914-0104

Int. Cotter Pin 5/16 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

38

MTD 916-0104

E-ring

$3.99

$

In Stock, Qty 20+

0

39

MTD 914-0388

No. 61 Hi-Pro Key 3/16 x 5/8

$7.99

$

In Stock, Qty 20+

0

40

MTD 716-0136

Retaining Ring E-Type .875 dia.

$8.99

$

In Stock, only 2 left!

0

41

MTD 917-0302

Aluminum Drive Plate

$82.99

$

In Stock, only 1 left!

0

42

MTD 932-0121

Idler Extension Spring

$14.99

$

Usually ships in 3-6 days

0

43

MTD 932-0209

Extension Spring .47 OD x 2.03 Lg.

$7.99

$

In Stock, only 2 left!

0

44

MTD 756-04351

Pulley, Dbl (w/357 cc Powermore engine)

$47.99

$

Usually ships in 3-6 days

0

44

MTD 756-0241B

Pulley, Dbl (w/420 cc Powermore engine)

$99.99

$

In Stock, Qty 5

0

45

MTD 936-0158

Lockwasher 5/16 ID

$4.49

$

In Stock, Qty 11

0

46

MTD 684-04169

Idler Pulley Ass'y

$34.99

$

In Stock, Qty 13

0

47

MTD 634-0225A-0911

LH Wheel Ass'y Comp. 16 x 6.5 x 8 X-Trac Gray

$252.99

$

Usually ships in 3-6 days

0

47

MTD 634-0226A-0911

RH Wheel Ass'y Comp. 16 x 6.5 x 8 X-Trac Gray

$308.99

$

Usually ships in 3-6 days

0

47

MTD 734-2031

Tire Only

$166.99

$

Usually ships in 3-6 days

0

47

MTD 734-1124A-0662

Rim Only Gray

$132.99

$

Usually ships in 3-6 days

0

47

MTD 741-0246A

Bearing

$14.99

$

In Stock, only 4 left!

0

48

MTD 711-04615

Clevis Pin

$5.99

$

Usually ships in 3-6 days

0

49

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

50

MTD 936-0864

Flat Washer .375 ID x .812 OD x .060

$4.49

$

Usually ships in 3-6 days

0

51

MTD 936-0329

L-Wash 1/4 ID

$4.49

$

In Stock, Qty 11

0

52

MTD 914-0149B

Int. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

53

MTD 937-3000

Grease

$4.99

$

In Stock, Qty 20+

0

54

MTD 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

55

MTD 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

56

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

57

MTD 741-0163A

Bearing Hsg. Ass’y.

$48.99

$

Usually ships in 3-6 days

0

58

MTD 741-04108

Hex Flange Bearing

$5.99

$

In Stock, Qty 12

0

59

MTD 941-04025

Self aligning brg. 1.0 ID

$36.99

$

Usually ships in 3-6 days

0

60

MTD 741-0747

Ball Bearing .5625 ID x 1.3750 x .4375

$18.99

$

In Stock, only 2 left!

0

61

MTD 941-0563

Ball Bearing w/snap ring

$36.99

$

In Stock, Qty 11

0

62

MTD 741-0748

Flange Bushing .500 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

63

MTD 746-0949A

Steering Cable

$52.99

$

In Stock, only 1 left!

0

64

MTD 946-0951A

Auger Idler Cable

$45.99

$

In Stock, only 4 left!

0

65

MTD 747-0973

Drive Clutch Rod

$48.99

$

Usually ships in 3-6 days

0

66

MTD 750-0903B

Split Spacer 1/2 x 5/8 x 2.69

$10.99

$

Usually ships in 3-6 days

0

67

MTD 950-0997

Spacer .625 ID x 1.0 OD x .23

$6.99

$

In Stock, only 4 left!

0

68

MTD 750-1302B

Spacer .6725ID x 1.125OD x 2.485

$47.99

$

In Stock, only 1 left!

0

69

MTD 756-0344

1/2" "V" Pulley .625 ID x 7.50 OD

$81.99

$

Usually ships in 3-6 days

0

70

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

71

MTD 790-00257

Upper Frame Cover

Variations

MTD 790-00257-0691

Frame Cover, Upper Black - BLACK JACK (0691)

$14.99

$

Usually ships in 3-6 days

0

MTD 790-00257-0606

COVER:UPPER FRAME: - MAJESTIC ORANGE (0606)

$12.99

$

Usually ships in 3-6 days

0

MTD 790-00257-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

MTD 790-00257-0716

COVER:UPPER FRAME: - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

MTD 790-00257-0721

COVER:UPPER FRAME: - SEARS RED (0721)

$12.99

$

Usually ships in 3-6 days

0

MTD 790-00257-4021

COVER:UPPER FRAME: - CUB YELLOW 2 (4021)

$15.99

$

Usually ships in 3-6 days

0

MTD 790-00257-4033

COVER:UPPER FRAME: - FLINT MICA (4033)

$14.99

$

Usually ships in 3-6 days

0

MTD 790-00257-4044

COVER:UPPER FRAME: - CRAFTSMAN RED (4044)

$12.99

$

Usually ships in 3-6 days

0

MTD 790-00257-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

72

MTD 790-00259

Lower Frame Cover

Variations

MTD 790-00259-0606

Frame Cover, Lower Orange - MAJESTIC ORANGE (0606)

$33.99

$

Usually ships in 3-6 days

0

MTD 790-00259-0638

COVER:FRAME:LOWER - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

MTD 790-00259-0650

COVER:FRAME:LOWER - RED METALLIC (0650)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-0691

COVER:FRAME:LOWER - BLACK JACK (0691)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-0716

COVER:FRAME:LOWER - CUB YELLOW-99 (0716)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-0721

COVER:FRAME:LOWER - SEARS RED (0721)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-4021

COVER:FRAME:LOWER - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-4033

COVER:FRAME:LOWER - FLINT MICA (4033)

$27.99

$

Usually ships in 3-6 days

0

MTD 790-00259-4044

COVER:FRAME:LOWER - CRAFTSMAN RED (4044)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

73

MTD 711-04608A

Axle .995 x 12.6" Lg. (28")

$110.99

$

In Stock, only 1 left!

0

73

MTD 711-04607A

Axle.995 x 14.10" Lg (30" & 33")

$112.99

$

In Stock, only 1 left!

0

73

MTD 711-04606A

Axle .995 x 20.4" Lg. (45")

$149.99

$

Usually ships in 3-6 days

0

74

MTD 790-00349-0606

Transmission Frame Ass’y Orange
(Superseded to 790-00349A-0606)

$144.99

$

Usually ships in 3-6 days

0

75

MTD 784-0406A-0637

Frame Support Bracket

$37.99

$

Usually ships in 3-6 days

0

76

MTD 784-0407-0637

Axle Brg. Support Bracket

$37.99

$

Usually ships in 3-6 days

0

77

MTD 790-00254A-0637

Belt Cover Bracket

$27.99

$

Usually ships in 3-6 days

0

78

MTD 710-0191

Hex Screw 3/8-24 x 1.25 Gr. 8 (Powermore)

$4.99

$

In Stock, Qty 9

0

79

MTD 710-0627

Hex Screw 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

80

MTD 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

81

MTD 710-0624

Hex HD. Cap Scr. 5/16-24 x 1.5 Lg. Gr. 5

$5.99

$

Usually ships in 3-6 days

0

82

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

83

MTD 738-04439

Shoulder Screw .50 x .145: 5/16-24

$3.99

$

In Stock, Qty 6

0

84

MTD 714-0118

Square Key 1/4 x 1/4 x 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

85

MTD 790-00167A-0637

Belt Keeper Bracket

$36.99

$

Usually ships in 3-6 days

0

86

MTD 931-2531

Belt Cover

$51.99

$

In Stock, only 1 left!

0

87

MTD 732-04308A

Torsion Spring .850 x 3.33" Lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

89

MTD 736-0247

Flat Washer .406 ID x 1.25 OD x .160

$9.49

$

In Stock, Qty 14

0

90

MTD 748-04112B

Shoulder Spacer .3175 x .5 x .094

$4.49

$

In Stock, Qty 11

0

91

MTD 750-05316

Spacer 1.155 ID x 1.5 OD x 0.150 (w/Powermore)

$5.49

$

Usually ships in 3-6 days

0

92

MTD 954-04202

V-Belt 3/8 x 36.68" Lg. (Powermore)

$18.99

$

In Stock, Qty 20+

0

93

MTD 750-04821

Shoulder Spacer .340 x 1.0

$6.49

$

Usually ships in 3-6 days

0

94

MTD 726-0221

Speed Nut .50

$6.49

$

In Stock, only 2 left!

0

95

MTD 750-05318

Spacer 1.004 x 1.375 x .25 (w/357 cc Powermore)

$6.99

$

Usually ships in 3-6 days

0

97

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

98

MTD 736-3092

Flat Washer .265 ID x 1.0 OD x 0.030 HT

$3.99

$

In Stock, Qty 9

0

99

MTD 750-04571

Shoulder Spacer

$6.99

$

In Stock, only 3 left!

0

100

MTD 926-04012

Push on Nut
(Superseded to 726-04012)

$

$

Not available

101

MTD 784-0404

Bearing Retaining Bracket

$8.49

$

In Stock, only 2 left!

0

102

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

103

MTD 750-05343

Spacer .566 ID x .87 OD x 1.25

$4.49

$

Usually ships in 3-6 days

0

104

MTD 750-05342

Spacer .566 ID x .87 OD x 0,190

$3.49

$

Usually ships in 3-6 days

0

105

MTD 936-0264

Flat Washer .330 ID x .630 OD x .0635

$6.99

$

In Stock, only 3 left!

0

106

MTD 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

107

MTD 710-04022

Hex Hd. Cap Scr. MB-1.25:20 Gr. 8
(Superseded to 710-1681)

$5.99

$

Usually ships in 3-6 days

0

108

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0
