11530 GC (31AH9575897) - Columbia 30" Snow Thrower (2009) Engine Assembly 483-SU Parts Diagram

30" Snow Thrower

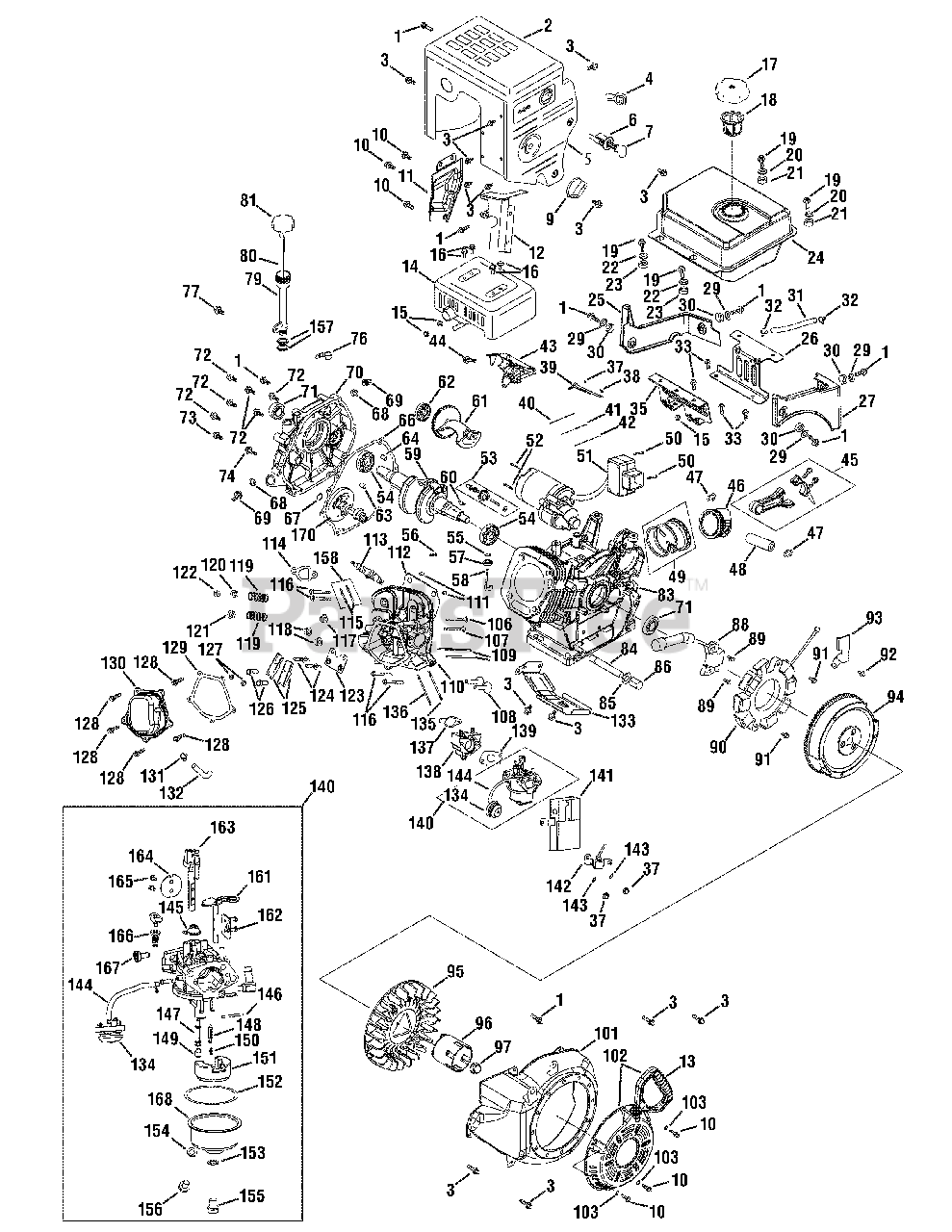

Engine Assembly 483-SU Parts Diagram

  • Title

1

MTD 951-11012

Bolt, M6 X 16
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11339

Muffler Shield

$80.99

$

Usually ships in 3-6 days

0

3

MTD 710-04915

Bolt, M6×12, Zinc Coating

$4.49

$

In Stock, Qty 20+

0

4

MTD 951-11224

Throttle Control Knob

$7.99

$

In Stock, only 4 left!

0

5

MTD 951-11595

Control Panel

$54.99

$

Usually ships in 3-6 days

0

6

MTD 951-10637

Ignition Switch Assembly

$14.99

$

In Stock, Qty 8

0

7

MTD 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 951-11302

Choke Knob

$6.99

$

In Stock, Qty 8

0

10

MTD 710-04914

Bolt, Flange, M6×10

$4.49

$

In Stock, only 3 left!

0

11

MTD 951-11181

Muffler Baffle

$30.99

$

Usually ships in 3-6 days

0

12

MTD 951-11321

Carburetor Heat Shield

$28.99

$

Usually ships in 3-6 days

0

13

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

14

MTD 951-11338

Muffler Assembly

$139.99

$

Usually ships in 3-6 days

0

15

MTD 712-04219

Nut, M8 - 1.25

$6.49

$

In Stock, only 2 left!

0

16

MTD 710-05051

Bolt

$6.49

$

In Stock, only 1 left!

0

17

MTD 951-10649

Fuel Cap
(Superseded to 951-12533)

$23.99

$

In Stock, only 2 left!

0

18

MTD 951-10652

Fuel Filter

$9.49

$

In Stock, only 3 left!

0

19

MTD 710-04970

Flange Bolt, M8 X 20

$6.49

$

Usually ships in 3-6 days

0

20

MTD 736-04450

Flat Washer

$6.49

$

Usually ships in 3-6 days

0

21

MTD 750-05312

Bushing

$4.49

$

Usually ships in 3-6 days

0

22

MTD 736-04451

Flat Washer

$5.99

$

Usually ships in 3-6 days

0

23

MTD 750-05313

Bushing

$3.99

$

Usually ships in 3-6 days

0

24

MTD 951-11201

Fuel Tank

$144.99

$

In Stock, only 3 left!

0

25

MTD 951-11319

Fuel Tank Shroud

$22.99

$

Usually ships in 3-6 days

0

26

MTD 951-11318

Fuel Tank Mounting Bracket

$43.99

$

Usually ships in 3-6 days

0

27

MTD 951-11189

Engine Shroud
(Superseded to 951-11419)

$22.99

$

Usually ships in 3-6 days

0

29

MTD 736-04452

Flat Washer

$6.49

$

In Stock, only 1 left!

0

30

MTD 750-05314

Bushing

$3.99

$

Usually ships in 3-6 days

0

31

N/A

Fuel Line

Note: Furnish 951-11336, Fuel Line Kit

$

$

Not available

32

N/A

Fuel Line Clamp

Note: Furnish 951-11336, Fuel Line Kit

$

$

Not available

33

MTD 710-04921

Bolt, Flange, M8×14

$5.49

$

Usually ships in 3-6 days

0

35

MTD 951-11182

Fuel Tank Mounting Bracket

$38.99

$

Usually ships in 3-6 days

0

37

MTD 712-04211

Nut, Flange, M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

38

MTD 710-04908

Bolt, M6×21, Governor Arm

$6.49

$

Usually ships in 3-6 days

0

39

MTD 951-11307

Governor Arm Bracket

$23.99

$

Usually ships in 3-6 days

0

40

MTD 951-11306

Governor Spring

$4.49

$

In Stock, only 3 left!

0

41

MTD 951-11203

Throttle Return Spring

$4.49

$

In Stock, only 2 left!

0

42

MTD 951-11309

Governor Rod

$3.99

$

Usually ships in 3-6 days

0

43

MTD 951-11311

Throttle Control Assembly

$47.99

$

Usually ships in 3-6 days

0

44

MTD 710-04916

Bolt, Flange, M6 × 14

$4.49

$

In Stock, Qty 12

0

45

N/A

Connecting Rod Ass’y Complete

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

46

N/A

Piston

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

47

N/A

Piston Pin Clip

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

48

N/A

Piston Pin

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

49

N/A

Piston Ring Set - Complete

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

50

MTD 710-04965

Screw, M4 X 55

$6.99

$

In Stock, only 1 left!

0

51

MTD 951-11196

Electric Starter

$407.99

$

Usually ships in 3-6 days

0

52

MTD 710-04967

Flange Bolt, M8 X 55

$6.49

$

Usually ships in 3-6 days

0

53

N/A

Governor Assembly

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

54

MTD 951-11373

Bearing

$34.99

$

Usually ships in 3-6 days

0

54

MTD 951-11373

Bearing

Note: Furnish 951-11340, Crankcase Cover Kit

$34.99

$

Usually ships in 3-6 days

0

54

MTD 951-11373

Bearing

Note: Furnish 951-11342, Crankshaft Assembly

$34.99

$

Usually ships in 3-6 days

0

54

MTD 951-11373

Bearing

Note: Furnish 951-11328, Shortblock Assembly

$34.99

$

Usually ships in 3-6 days

0

54

MTD 951-11373

Bearing

Note: Furnish 951-11341, Crankcase Kit

$34.99

$

Usually ships in 3-6 days

0

55

MTD 736-04453

Governor Shaft Washer

$6.49

$

Usually ships in 3-6 days

0

55

MTD 736-04453

Governor Shaft Washer

Note: Furnish 951-11328, Shortblock Assembly

$6.49

$

Usually ships in 3-6 days

0

56

MTD 714-04077

Governor Shaft Clip

$6.49

$

In Stock, only 1 left!

0

56

MTD 714-04077

Governor Shaft Clip

Note: Furnish 951-11328, Shortblock Assembly

$6.49

$

In Stock, only 1 left!

0

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11341, Crankcase Kit

$

$

Not available

57

N/A

Oil Seal - Governor Shaft

Note: Furnish 951-11330, Complete Gasket Kit

$

$

Not available

58

MTD 951-11365

Governor Arm Shaft

$5.99

$

Usually ships in 3-6 days

0

58

MTD 951-11365

Governor Arm Shaft

Note: Furnish 951-11328, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

59

N/A

Crankshaft Assembly

Note: Furnish 951-11342, Crankshaft Assembly

$

$

Not available

59

N/A

Crankshaft Assembly

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

60

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

60

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11373, Crankshaft Assembly

$2.49

$

In Stock, Qty 10

0

60

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11328, Shortblock Assembly

$2.49

$

In Stock, Qty 10

0

61

N/A

Balance Shaft

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

62

N/A

Bearing

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

63

MTD 715-04102

Dowel Pin

$5.99

$

Usually ships in 3-6 days

0

63

MTD 715-04102

Dowel Pin

Note: Furnish 951-11328, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

64

MTD 715-04096

Dowel Pin, 7 X 14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

64

MTD 715-04096

Dowel Pin, 7 x 14
(Superseded to 715-04096A)

Note: Furnish 951-11328, Shortblock Assembly

$4.49

$

Usually ships in 3-6 days

0

66

MTD 951-11376

Crankcase Cover Gasket

$18.99

$

Usually ships in 3-6 days

0

66

MTD 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11340, Crankcase Cover Kit

$18.99

$

Usually ships in 3-6 days

0

66

MTD 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11328, Shortblock Assembly

$18.99

$

Usually ships in 3-6 days

0

66

MTD 951-11376

Crankcase Cover Gasket

Note: Furnish 951-11330, Complete Gasket Kit

$18.99

$

Usually ships in 3-6 days

0

67

MTD 736-04476

Washer

$5.99

$

Usually ships in 3-6 days

0

67

MTD 736-04476

Washer

Note: Furnish 951-11340, Crankcase Cover Kit

$5.99

$

Usually ships in 3-6 days

0

67

MTD 736-04476

Washer

Note: Furnish 951-11328, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

68

N/A

O-Ring

Note: Furnish 951-11345, Oil Filler Plug Assembly

$

$

Not available

69

N/A

Oil Fill Plug

Note: Furnish 951-11345, Oil Filler Plug Assembly

$

$

Not available

70

N/A

Crankcase Cover

Note: Furnish 951-11340, Crankcase Cover Kit

$

$

Not available

70

N/A

Crankcase Cover

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

71

MTD 751-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

$15.99

$

In Stock, Qty 20+

0

71

MTD 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11340, Crankcase Cover Kit

$15.99

$

In Stock, Qty 20+

0

71

MTD 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11373, Crankshaft Assembly

$15.99

$

In Stock, Qty 20+

0

71

MTD 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11328, Shortblock Assembly

$15.99

$

In Stock, Qty 20+

0

71

MTD 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11341, Crankcase Kit

$15.99

$

In Stock, Qty 20+

0

71

MTD 951-11375

Oil Seal - PTO Side
(Superseded to 951-11375A)

Note: Furnish 951-11330, Complete Gasket Kit

$15.99

$

In Stock, Qty 20+

0

72

MTD 710-04971

Flange Bolt, M8 X 38
(Superseded to 710-06061)

$6.49

$

Usually ships in 3-6 days

0

72

MTD 710-04971

Flange Bolt, M8 X 38
(Superseded to 710-06061)

Note: Furnish 951-11340, Crankcase Cover Kit

$6.49

$

Usually ships in 3-6 days

0

72

MTD 710-04971

Flange Bolt, M8 X 38
(Superseded to 710-06061)

Note: Furnish 951-11328, Shortblock Assembly

$6.49

$

Usually ships in 3-6 days

0

73

MTD 710-04972

Bolt, M8 X 45
(Superseded to 710-06062)

$5.99

$

Usually ships in 3-6 days

0

73

MTD 710-04972

Bolt, M8 X 45
(Superseded to 710-06062)

Note: Furnish 951-11340, Crankcase Cover Kit

$5.99

$

Usually ships in 3-6 days

0

73

MTD 710-04972

Bolt, M8 X 45
(Superseded to 710-06062)

Note: Furnish 951-11328, Shortblock Assembly

$5.99

$

Usually ships in 3-6 days

0

74

MTD 710-05052

Bolt, M8 X 35
(Superseded to 710-06063)

$6.49

$

Usually ships in 3-6 days

0

74

MTD 710-05052

Bolt, M8 X 35
(Superseded to 710-06063)

Note: Furnish 951-11328, Shortblock Assembly

$6.49

$

Usually ships in 3-6 days

0

76

MTD 951-11320

Oil Tube Support Bracket

$7.99

$

Usually ships in 3-6 days

0

77

MTD 710-04968

Flange Bolt M6 X 16

$6.99

$

In Stock, only 3 left!

0

79

MTD 951-11206

Dipstick Tube

$18.99

$

Usually ships in 3-6 days

0

80

N/A

Dipstick

Note: Furnish 951-11205, Dipstick Assembly

$

$

Not available

81

N/A

Oil Cap

Note: Furnish 951-11205, Dipstick Assembly

$

$

Not available

83

N/A

Crankcase

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

83

N/A

Crankcase

Note: Furnish 951-11341, Crankcase Kit

$

$

Not available

84

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

84

MTD 951-11350

Oil Drain Pipe

Note: Furnish 951-10641, Oil Drain Assembly

$9.49

$

Usually ships in 3-6 days

0

84

MTD 951-11350

Oil Drain Pipe

Note: Furnish 951-11328, Shortblock Assembly

$9.49

$

Usually ships in 3-6 days

0

85

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

85

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-10641, Oil Drain Assembly

$6.99

$

In Stock, only 2 left!

0

85

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11328, Shortblock Assembly

$6.99

$

In Stock, only 2 left!

0

85

MTD 736-04440

Oil Drain Washer
(Superseded to 736-04440A)

Note: Furnish 951-11330, Complete Gasket Kit

$6.99

$

In Stock, only 2 left!

0

85

N/A

Oil Drain Washer

Note: Furnish 951-11331, External Gasket Kit

$

$

Not available

86

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 13

0

86

MTD 710-04906

Oil Drain Plug

Note: Furnish 951-10641, Oil Drain Assembly

$6.99

$

In Stock, Qty 13

0

86

MTD 710-04906

Oil Drain Plug

Note: Furnish 951-11328, Shortblock Assembly

$6.99

$

In Stock, Qty 13

0

88

MTD 951-11305

Ignition Coil
(Superseded to 951-11305A)

$77.99

$

In Stock, only 1 left!

0

89

MTD 710-04920

Bolt, Flange, M6×28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

90

MTD 951-11216

Stator

$

$

Not available

91

MTD 710-04969

Flange Bolt, M6 X 30

$4.49

$

In Stock, Qty 13

0

92

MTD 710-04966

Flange Bolt, M6 X 8

$6.49

$

Usually ships in 3-6 days

0

93

MTD 951-11186

Alternator Wire Clamp Bracket

$4.99

$

Usually ships in 3-6 days

0

94

MTD 951-11312

Flywheel

$235.99

$

Usually ships in 3-6 days

0

95

MTD 951-11313

Cooling Fan
(Superseded to 951-11313A)

$50.99

$

Usually ships in 3-6 days

0

96

MTD 951-11314

Starter Cup

$18.99

$

Usually ships in 3-6 days

0

97

MTD 712-04220

Nut, M16 - 1.5

$6.49

$

Usually ships in 3-6 days

0

101

MTD 951-11211

Blower Housing

$86.99

$

Usually ships in 3-6 days

0

102

MTD 951-11310

Recoil Starter Assembly
(Superseded to 951-14223)

$88.99

$

In Stock, Qty 13

0

103

MTD 736-04455

Flat Washer Recoil
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

106

N/A

Exhaust Valve

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

106

N/A

Exhaust Valve

Note: Furnish 951-11337, Valve Kit

$

$

Not available

107

N/A

Intake Valve

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

107

N/A

Intake Valve

Note: Furnish 951-11337, Valve Kit

$

$

Not available

108

N/A

Valve Lifter (Tappet)

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

109

N/A

Push Rod

Note: Furnish 951-11335, Push Rod Kit

$

$

Not available

110

N/A

Cylinder Head

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

111

MTD 715-04097

Dowel Pin, 12 X 20

$6.49

$

Usually ships in 3-6 days

0

111

MTD 715-04097

Dowel Pin, 12 x 20

Note: Furnish 951-11328, Shortblock Assembly

$6.49

$

Usually ships in 3-6 days

0

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11330, Complete Gasket Kit

$

$

Not available

112

N/A

Cylinder Head Gasket

Note: Furnish 951-11334, Cylinder Head Kit

$

$

Not available

113

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

114

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

$5.49

$

In Stock, only 2 left!

0

114

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11328, Shortblock Assembly

$5.49

$

In Stock, only 2 left!

0

114

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11329, Cylinder Head Assembly

$5.49

$

In Stock, only 2 left!

0

114

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11330, Complete Gasket Kit

$5.49

$

In Stock, only 2 left!

0

114

MTD 951-11212

Muffler Gasket
(Superseded to 951-11212A)

Note: Furnish 951-11331, External Gasket Kit

$5.49

$

In Stock, only 2 left!

0

115

MTD 710-04964

Muffler Stud

$6.49

$

In Stock, only 1 left!

0

115

MTD 710-04964

Exhaust Stud

Note: Furnish 951-11207, Muffler Stud Assembly

$6.49

$

In Stock, only 1 left!

0

115

MTD 710-04964

Exhaust Stud

Note: Furnish 951-11329, Cylinder Head Assembly

$6.49

$

In Stock, only 1 left!

0

116

MTD 710-05053

Flange Bolt, M10-1.25 X 87

$

$

Not available

116

MTD 710-05053

Flange Bolt, M10-1.25 X 87

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

116

MTD 710-05053

Flange Bolt, M10-1.25 X 87

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

116

MTD 710-05053

Flange Bolt, M10-1.25 X 87

Note: Furnish 951-11334, Cylinder Head Kit

$

$

Not available

117

N/A

Intake Valve Seal

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

117

N/A

Intake Valve Seal

Note: Furnish 951-11334, Cylinder Head Kit

$

$

Not available

118

N/A

Valve Spring Retainer

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

119

N/A

Valve Spring

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

120

N/A

Valve Spring Retainers -Exhaust

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

121

N/A

Valve Spring Retainer-Intake

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

122

N/A

Exhaust Valve Cap

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

123

N/A

Push Rod Guide

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

124

MTD 710-04962

Rocker Stud Bolt

$6.49

$

In Stock, only 1 left!

0

124

MTD 710-04962

Rocker Stud Bolt

Note: Furnish 951-11329, Cylinder Head Assembly

$6.49

$

In Stock, only 1 left!

0

125

N/A

Rocker Arm

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

126

MTD 751-11123

Pivot Adjusting Nut

$10.99

$

In Stock, only 4 left!

0

126

MTD 751-11123

Pivot Adjusting Nut

Note: Furnish 951-11329, Cylinder Head Assembly

$10.99

$

In Stock, only 4 left!

0

127

MTD 751-11124

Pivot Locking Nut

$9.49

$

In Stock, only 2 left!

0

127

MTD 751-11124

Pivot Locking Nut

Note: Furnish 951-11329, Cylinder Head Assembly

$9.49

$

In Stock, only 2 left!

0

128

MTD 710-05054

Bolt -Valve Cover, M6 X 16

$6.49

$

In Stock, only 2 left!

0

129

N/A

Valve Cover Gasket

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

129

N/A

Valve Cover Gasket

Note: Furnish 951-11329, Cylinder Head Assembly

$

$

Not available

129

N/A

Valve Cover Gasket

Note: Furnish 951-11330, Complete Gasket Kit

$

$

Not available

129

N/A

Valve Cover Gasket

Note: Furnish 951-11331, External Gasket Kit

$

$

Not available

129

N/A

Valve Cover Gasket

Note: Furnish 951-11334, Cylinder Head Kit

$

$

Not available

129

N/A

Valve Cover Gasket

Note: Furnish 951-11333, Valve Cover Kit

$

$

Not available

130

MTD 951-11220

Valve Cover

$35.99

$

Usually ships in 3-6 days

0

130

MTD 951-11220

Valve Cover

Note: Furnish 951-11333, Valve Cover Kit

$35.99

$

Usually ships in 3-6 days

0

131

MTD 726-04101

Breather Hose Clip

$4.49

$

Usually ships in 3-6 days

0

132

MTD 951-11221

Breather Hose

$6.99

$

In Stock, only 1 left!

0

133

MTD 951-11317

Cylinder Baffle

$27.99

$

Usually ships in 3-6 days

0

134

MTD 951-10639

Primer
(Superseded to 951-10639A)

$15.99

$

In Stock, Qty 20+

0

134

MTD 951-10639

Primer
(Superseded to 951-10639A)

Note: Furnish 951-11303, Carburetor Assembly

$15.99

$

In Stock, Qty 20+

0

135

MTD 710-05055

Carburetor Stud, M6 X 8 X 98

$5.99

$

Usually ships in 3-6 days

0

135

MTD 710-05055

Carburetor Stud, M6 X 8 X 98

Note: Furnish 951-11329, Cylinder Head Assembly

$5.99

$

Usually ships in 3-6 days

0

136

MTD 710-05056

Carburetor Stud, M6 X 8 X 118

$6.99

$

Usually ships in 3-6 days

0

136

MTD 710-05056

Carburetor Stud, M6 X 8 X 118

Note: Furnish 951-11329, Cylinder Head Assembly

$6.99

$

Usually ships in 3-6 days

0

137

MTD 951-11315

Intake Gasket

$4.49

$

In Stock, only 4 left!

0

137

MTD 951-11315

Intake Gasket

Note: Furnish 951-11328, Shortblock Assembly

$4.49

$

In Stock, only 4 left!

0

137

MTD 951-11315

Intake Gasket

Note: Furnish 951-11329, Cylinder Head Assembly

$4.49

$

In Stock, only 4 left!

0

137

MTD 951-11315

Intake Gasket

Note: Furnish 951-11330, Complete Gasket Kit

$4.49

$

In Stock, only 4 left!

0

137

MTD 951-11315

Intake Gasket

Note: Furnish 951-11331, External Gasket Kit

$4.49

$

In Stock, only 4 left!

0

138

MTD 951-11316

Carburetor Insulator
(Superseded to 751P11316A)

$8.99

$

Usually ships in 3-6 days

0

138

MTD 951-11316

Carburetor Insulator
(Superseded to 751P11316A)

Note: Furnish 951-11328, Shortblock Assembly

$8.99

$

Usually ships in 3-6 days

0

138

MTD 951-11316

Carburetor Insulator
(Superseded to 751P11316A)

Note: Furnish 951-11329, Cylinder Head Assembly

$8.99

$

Usually ships in 3-6 days

0

138

MTD 951-11316

Carburetor Insulator
(Superseded to 751P11316A)

Note: Furnish 951-11330, Complete Gasket Kit

$8.99

$

Usually ships in 3-6 days

0

138

MTD 951-11316

Carburetor Insulator
(Superseded to 751P11316A)

Note: Furnish 951-11331, External Gasket Kit

$8.99

$

Usually ships in 3-6 days

0

139

MTD 951-11223

Carburetor Gasket

$5.49

$

In Stock, Qty 20+

0

139

MTD 951-11223

Carburetor Gasket

Note: Furnish 951-11330, Complete Gasket Kit

$5.49

$

In Stock, Qty 20+

0

139

MTD 951-11223

Carburetor Gasket

Note: Furnish 951-11331, External Gasket Kit

$5.49

$

In Stock, Qty 20+

0

140

MTD 951-11303

Carburetor Assembly
(Superseded to 951-14023A)

$99.99

$

In Stock, Qty 9

0

140

MTD 951-11303

Carburetor Assembly
(Superseded to 951-14023A)

Note: (Incl. Ref. No. 134, 145-156, 161-168)

$99.99

$

In Stock, Qty 9

0

141

MTD 951-11304

Heater Box

$23.99

$

Usually ships in 3-6 days

0

142

MTD 951-11192

Choke Assembly

$9.49

$

Usually ships in 3-6 days

0

143

MTD 736-04477

Lock Washer

$6.49

$

Usually ships in 3-6 days

0

144

MTD 951-11324

Primer Hose

$11.99

$

Usually ships in 3-6 days

0

145

N/A

Throttle Pressure Plate

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

145

N/A

Throttle Pressure Plate

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

146

N/A

Float Pin

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

146

N/A

Float Pin

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

147

N/A

Main Nozzle

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

147

N/A

Main Nozzle

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

148

N/A

Needle Valve

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

148

N/A

Needle Valve

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

149

N/A

Main Jet

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

149

N/A

Main Jet

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

150

N/A

Needle Valve Spring

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

150

N/A

Needle Valve Spring

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

151

N/A

Float

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

151

N/A

Float

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

152

N/A

Bowl Gasket

Note: Furnish 951-11332, Carburetor Kit Major

$

$

Not available

152

N/A

Bowl Gasket

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

153

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

153

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-11332, Carburetor Kit Major

$5.99

$

In Stock, Qty 20+

0

153

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Furnish 951-11303, Carburetor Assembly

$5.99

$

In Stock, Qty 20+

0

154

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

154

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-11332, Carburetor Kit Major

$4.49

$

In Stock, Qty 20+

0

154

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Furnish 951-11303, Carburetor Assembly

$4.49

$

In Stock, Qty 20+

0

155

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

155

MTD 710-04945

Fuel Bowl Mounting Bolt

Note: Furnish 951-11303, Carburetor Assembly

$4.49

$

In Stock, Qty 13

0

156

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

$4.49

$

In Stock, Qty 10

0

156

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

Note: Furnish 951-11303, Carburetor Assembly

$4.49

$

In Stock, Qty 10

0

157

MTD 951-11381

O-Ring

$5.49

$

In Stock, Qty 11

0

158

MTD 951-11207

Muffler Stud Assembly

Note: (Incl. Ref. No. 115)

$8.49

$

Usually ships in 3-6 days

0

161

N/A

Choke Shaft

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

162

N/A

Choke Plate

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

163

N/A

Throttle Shaft

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

164

N/A

Throttle Plate

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

165

N/A

Screw

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

166

N/A

Idle Jet Assembly

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

167

N/A

Idle Speed Adjusting Screw

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

168

N/A

Fuel Bowl

Note: Furnish 951-11303, Carburetor Assembly

$

$

Not available

170

N/A

Camshaft Assembly

Note: Furnish 951-11328, Shortblock Assembly

$

$

Not available

MTD 951-10641

Oil Drain Assembly

Note: Not Shown (Incl. Ref. No. 84-86)

$12.99

$

In Stock, only 2 left!

0

MTD 951-10651

Fuel Tank Nipple

Note: Not Shown

$15.99

$

In Stock, Qty 16

0

MTD 951-11205

Dipstick Assembly

Note: Not Shown (Incl. Ref. No. 80-81)

$26.99

$

Usually ships in 3-6 days

0

MTD 951-11328

Shortblock Assembly
(Superseded to 951-11328B)

Note: Not Shown (Incl. Ref. No. 45-49, 53-67, 70-74, 83-86, 108, 111-112, 114, 116, 129, 137, 138, 170

$900.99

$

Usually ships in 3-6 days

0

MTD 951-11329

Cylinder Head Assembly
(Superseded to 951-11329B)

Note: Not Shown (Incl. Ref. No. 106, 107, 110, 112, 114-127, 129, 135-138)

$332.99

$

Usually ships in 3-6 days

0

MTD 951-11330

Gasket Kit - Complete
(Superseded to 951-11330A)

Note: Not Shown (Incl. Ref. No. 57, 66, 71, 85, 112, 114, 129, 137-139)

$69.99

$

Usually ships in 3-6 days

0

MTD 951-11331

Gasket Kit - External

Note: Not Shown (Incl. Ref. No. 85, 114, 129, 137-139)

$37.99

$

Usually ships in 3-6 days

0

MTD 951-11332

Carburetor Kit -Major
(Superseded to 951-12760A)

Note: Not Shown (Incl. Ref. No. 145-154)

$54.99

$

In Stock, Qty 6

0

MTD 951-11333

Valve Cover Kit

Note: Not Shown (Incl. Ref. No. 129-130)

$40.99

$

Usually ships in 3-6 days

0

MTD 951-11334

Cylinder Head Kit
(Superseded to 951-12555)

Note: Not Shown (Incl. Ref. No. 112, 116-117, 129

$50.99

$

Usually ships in 3-6 days

0

MTD 951-11335

Push Rod Kit

Note: Not Shown (Incl. Ref. No. 109)

$24.99

$

In Stock, Qty 9

0

MTD 951-11336

Fuel Line Kit

Note: Not Shown (Incl. Ref. No. 31-32)

$33.99

$

In Stock, only 1 left!

0

MTD 951-11337

Valve Kit

Note: Not Shown (Incl. Ref. No. 106-107)

$50.99

$

Usually ships in 3-6 days

0

MTD 951-11340

Crankcase Cover Kit
(Superseded to 951-11340A)

Note: Not Shown (Incl. Ref. No. 54, 66, 67, 70, 71, 72 & 73)

$75.99

$

Usually ships in 3-6 days

0

MTD 951-11341

Crankcase Kit
(Superseded to 951-11341A)

Note: Not Shown (Incl. Ref. No. 54, 57, 71 & 83)

$368.99

$

Usually ships in 3-6 days

0

MTD 951-11342

Crankshaft Kit

Note: Not Shown (Incl. Ref. No. 54, 59, 60 & 71)

$257.99

$

Usually ships in 3-6 days

0

MTD 951-11345

Oil Filler Plug Assembly

Note: Not Shown (Incl. Ref. No. 68-69)

$10.99

$

Usually ships in 3-6 days

0

MTD 752Z483-SU

Engine Complete
(Superseded to 952Z683-WUB)

Note: Not Shown

$1500.99

$

Usually ships in 3-6 days

0

$

$

Not available
