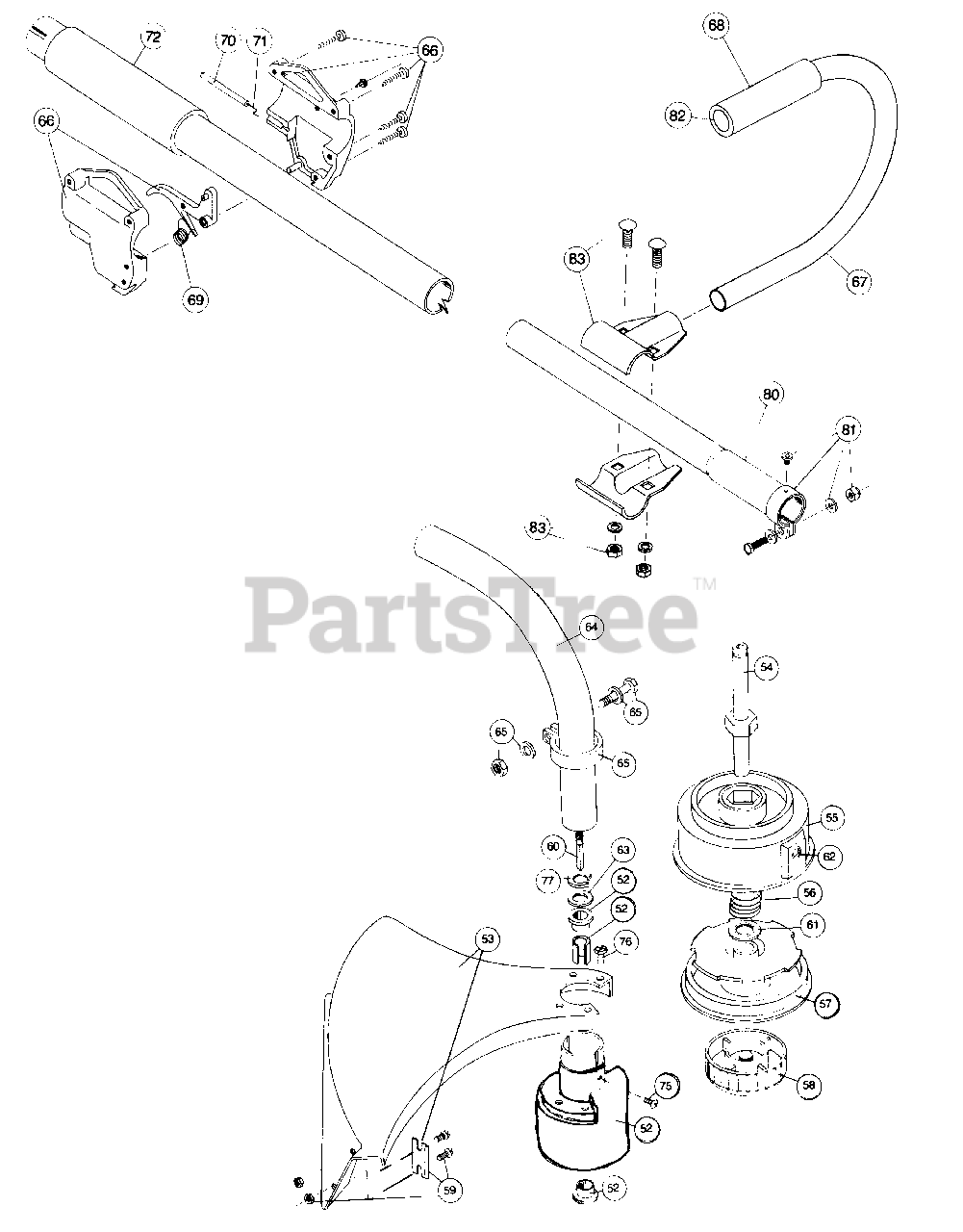

1150 - Lawn-Boy 15" String Trimmer (SN: 700000001 - 711999999) (1987) PARTS MODEL 1150 Parts Diagram

15" String Trimmer

PARTS MODEL 1150 Parts Diagram

  • Title
52

Lawn-Boy 153312

Bushing housing assembly

$

$

Not available

53

Lawn-Boy 683274

Guard and blade assembly

$

$

Not available

54

Lawn-Boy 153313

Spool shaft
(Superseded to 181784)

$

$

Not available

55

Lawn-Boy 611901

Outer spool and eyelet assembly
(Superseded to 153647)

$

$

Not available

56

$12.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 610318

Inner reel

$41.99

$

In Stock, only 1 left!

0

58

Lawn-Boy 682069

Bump head knob assembly
(Superseded to 153066)

$

$

Not available

59

Lawn-Boy 682061

Blade assembly

$23.99

$

In Stock, only 1 left!

0

60

Lawn-Boy 682064

Flexible drive shaft
(Superseded to 92-3236)

$

$

Not available

61

Lawn-Boy 610660

Retainer (10 pack)

$4.49

$

In Stock, Qty 19

0

62

$16.99

$

Usually ships in 3-6 days

0

63

$

$

Not available

64

Lawn-Boy 683289

Lower drive shaft housing assembly

$

$

Not available

65

Lawn-Boy 682060

Lower clamp assembly
(Superseded to 153597)

$

$

Not available

66

Lawn-Boy 153316

Throttle trigger assembly

$

$

Not available

67

Lawn-Boy 683815

J-handle assembly (Includes 68 & 82)

$

$

Not available

68

$

$

Not available

69

Lawn-Boy 610314

Throttle trigger spring

$10.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 682062

Throttle cable housing assembly

$

$

Not available

71

Lawn-Boy 610315

Throttle cable

$

$

Not available

72

Lawn-Boy 612832

Main handle grip

$

$

Not available

73

Lawn-Boy 610375

Monoflail cutting line 50 ft. (2 fills)

Note: Not Shown

$

$

Not available

74

Lawn-Boy 610997

Monoflail cutting line 1 lb. (16 fills)

Note: Not Shown

$

$

Currently unavailable

75

Lawn-Boy 145569

Anti-rotation screw

$

$

Not available

76

Lawn-Boy 153318

Guard mounting screw assembly

$

$

Not available

77

Lawn-Boy 145570

Retaining ring

$11.99

$

Usually ships in 3-6 days

0

78

Lawn-Boy 683223

Cutting head complete
(Superseded to 683059)

Note: Not Shown

$

$

Not available

79

Lawn-Boy 683061

Spool and 30 ft. line assembly

Note: Not Shown

$

$

Not available

80

Lawn-Boy 683293

Upper drive shaft housing assembly

$

$

Not available

81

Lawn-Boy 683290

Split boom clamp assembly

$

$

Not available

82

Lawn-Boy 612021

Tube closure

$

$

Not available

83

Lawn-Boy 683816

Bracket assembly

$

$

Not available
