115-808C054 - Mastercraft Walk-Behind Mower (1995) General Assembly Parts Diagram

Walk-Behind Mower

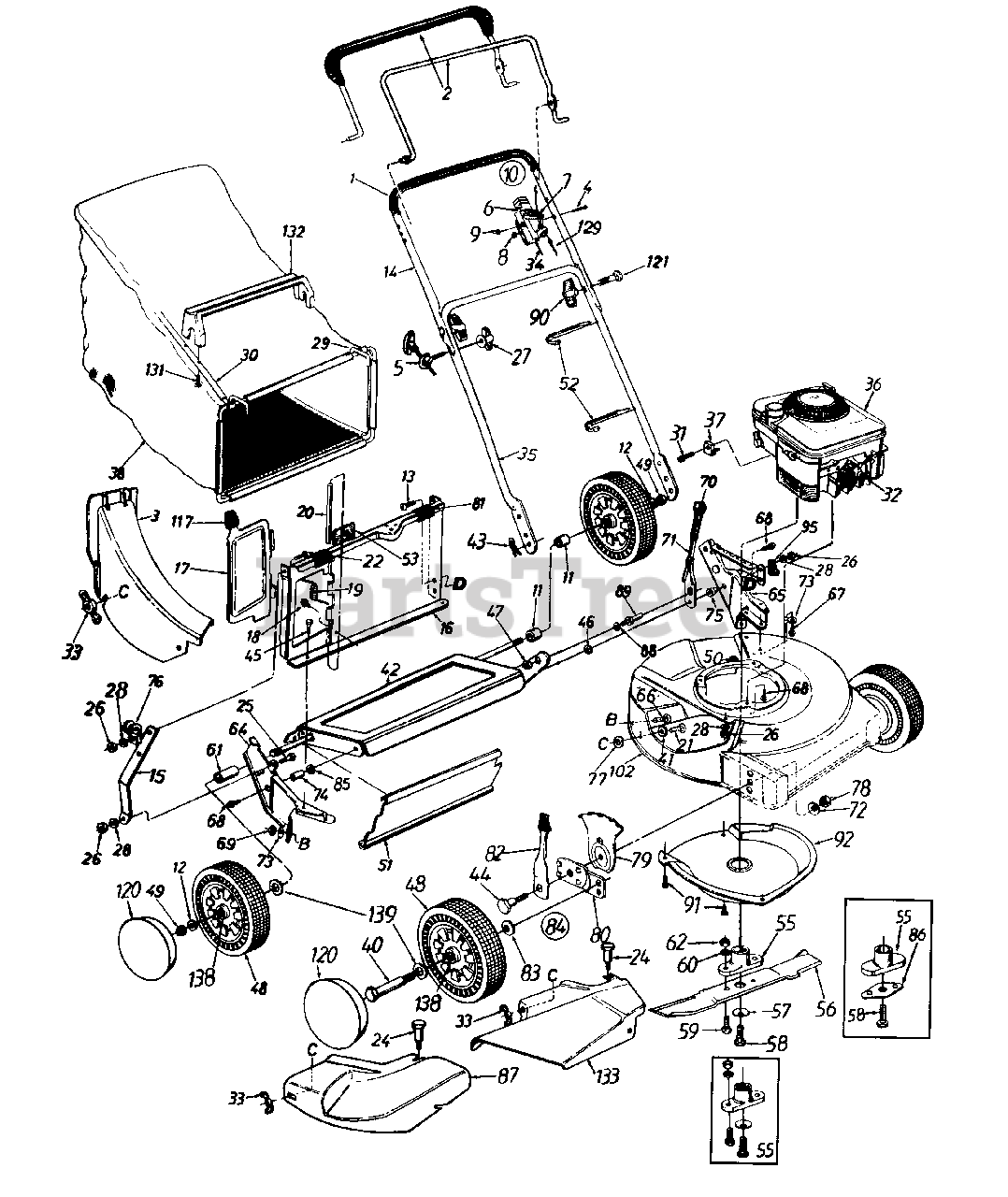

General Assembly Parts Diagram

  • Title

1

MTD 720-0226

Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

2

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

3

MTD 731-1023

Top Discharge Chute Ass'y.

$

$

Not available

4

MTD 710-0605

Oval C-Sunk Scr.

$4.49

$

In Stock, only 3 left!

0

5

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 4 left!

0

7

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

8

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

10

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 4, 6, 7, 8, 9)

$36.99

$

In Stock, only 1 left!

0

11

MTD 711-0500

Spacer .526" I.D. x .690" O.D. x .640" Lg.

$

$

Not available

12

MTD 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

13

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62"

$3.99

$

Usually ships in 3-6 days

0

14

MTD 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 16129A

Panel Support Brkt.
(Superseded to 16129A-0637)

Variations

MTD 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

MTD 16862

Top Catcher Panel Ass'y.

Variations

MTD 16862-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)

$

$

Not available

MTD 16862-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862-0662

No Longer Available PANEL ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 16862-0665

No Longer Available PANEL ASM - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 17095A

Top Discharge Door

Variations

MTD 17095A-0637

Top Discharge Door - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

19

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0225

Truss Mach. Scr. 1/4-20 x .75"

$

$

Currently unavailable

?23

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shoulder Bolt .312" Dia. x .18" Lg. Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

MTD 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

MTD 749-0764A

Upper Bag Support
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

31

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62"

$4.49

$

Usually ships in 3-6 days

0

32

MTD 735-0639

Spark Plug lnsulator

$

$

Not available

33

MTD 712-0397

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

37

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

38

MTD 764-0257

21" Top Discharge Grass Bag
(Superseded to 964-0082)

$

$

Not available

MTD 764-0264

21" Top Discharge Grass Bag (w/Logo)
(Superseded to 964-0082)

$

$

Not available

?39

MTD 14835

Retaining Strip

$

$

Not available

40

MTD 738-0102

Shld. Bolt .498" Dia. x 1.45"

$9.99

$

In Stock, Qty 10

0

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 8

0

42

MTD 16131B

Rear Axle Ass'y.

Variations

MTD 16131B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16131B-0498

No Longer Available Axle ASM- - OLD CUB YELLOW (0498)

$

$

Not available

MTD 16131B-0629

No Longer Available Axle ASM- - SILVER FLAKE (0629)

$

$

Not available

MTD 16131B-0637

No Longer Available AXLE ASM- - POWDER BLACK (0637)

$

$

Not available

MTD 16131B-0638

No Longer Available axle - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16131B-0662

No Longer Available Axle ASM- - OYSTER GRAY (0662)

$

$

Not available

MTD 16131B-0665

No Longer Available Axle ASM- - YARDMAN GREEN (0665)

$

$

Not available

$

$

43

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

44

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0258

Fl-Wash. .38" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

47

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

48

MTD 734-1512A

Wheel Ass'y. Comp. (w/o Ball Bearings)
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

MTD 734-1790

Wheel Ass'y. Comp. (w/Ball Bearings)

$

$

Not available

49

MTD 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 9

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-1484

Rear Flap

$

$

Not available

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

53

MTD 722-0139

Foam Strip 1" Lg.

$

$

Not available

55

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: (For model 115-808L401 Only)

$16.99

$

In Stock, only 1 left!

0

56

MTD 742-0621

21" Blade
(Superseded to 942-0621)

Note: (Optional)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

Note: (For model 115-808L401 Only)

$29.99

$

In Stock, Qty 20+

0

57

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

58

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

59

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

60

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

61

MTD 711-0313

Sleeve .526" I.D. x .69"

$

$

Not available

62

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

?63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 16136C

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

Note: New Part

Variations

MTD 16136C-0637

R.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 16137C

L.H. Handle Wheel Brkt. Ass'y.

Note: New Part

Variations

MTD 16137C-0637

L.H. Handle Wheel Brkt. Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16

$4.49

$

In Stock, only 3 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

71

MTD 732-0606

Height Adj. Lever

$

$

Not available

72

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer.383" I.D. x .503" O.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

MTD 750-0624

Shld. Spacer .500" Dia.

$

$

Not available

76

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

78

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

79

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

80

MTD 152628

Pivot Bar

$

$

Currently unavailable

81

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

82

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

83

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

84

MTD 14578

Height Adj. Ass'y. Comp.- R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp.- L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

85

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1" O.D.

$4.49

$

In Stock, only 4 left!

0

86

MTD 736-0524

Blade Bell Support
(Superseded to 736-0524B-1)

Note: (For model 115-808L401 Only)

$5.99

$

In Stock, Qty 20+

0

87

MTD 731-1343

Mulching Plug
(Superseded to 731-1343A)

Note: (Optional)

$

$

Not available

88

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

89

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

90

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

91

MTD 710-0352

Hex Wash. Hd. Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

92

MTD 782-7555

Mulching Baffle

Variations

MTD 782-7555-0637

No Longer Available BAFFLE-MUL - POWDER BLACK (0637)

$

$

Not available

$

$

95

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

102

MTD 682-0022

21" Deck Ass'y.

Variations

MTD 682-0022-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0022-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0022-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0022-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

120

Hub Cap

Note: (Optional)

$

$

Not available

MTD 720-0249

3-1/2" Dia. (Gray)
(Superseded to 920-0249)

$

$

Not available

MTD 731-0981A

5-1/2" Dia. (Gray)
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

5-1/2" Dia. (Yellow)
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

121

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

129

MTD 746-0912

Control Cable - 44" Lg.
(Superseded to 946-0912)

$26.99

$

In Stock, only 1 left!

0

131

MTD 710-0969

Hex AB-Tap Scr. #12 x 1.0"

$4.49

$

In Stock, only 2 left!

0

132

MTD 731-0801

Bag Handle

$

$

Not available

133

MTD 731-0884

Side Chute Deflector Ass'y.

$

$

Not available

?136

MTD 736-0300

Fl-Wash. .385" l.O. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

?137

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

138

MTD 741-0484

Ball Bearings 2 Req'd. Per Wheel
(Superseded to 941-0484)

Note: Optional

$7.49

$

In Stock, only 1 left!

0

139

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: (Used w/Ball Brg. Wheels)

$4.49

$

In Stock, Qty 10

0

MTD 720-0249

Hub Cap, Gray (3-1/2" Dia.)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Cap, Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

Hub Cap, Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

Note: Optional

$8.99

$

Usually ships in 3-6 days

0
