115-7490 - Toro Dual Fuel Pump Kit for Z500 Z Master Mower with 29hp DFI Kawasaki Engine DUAL FUEL PUMP KIT NO. 115-7490 Parts Diagram

Dual Fuel Pump Kit for Z500 Z Master Mower with 29hp DFI Kawasaki Engine

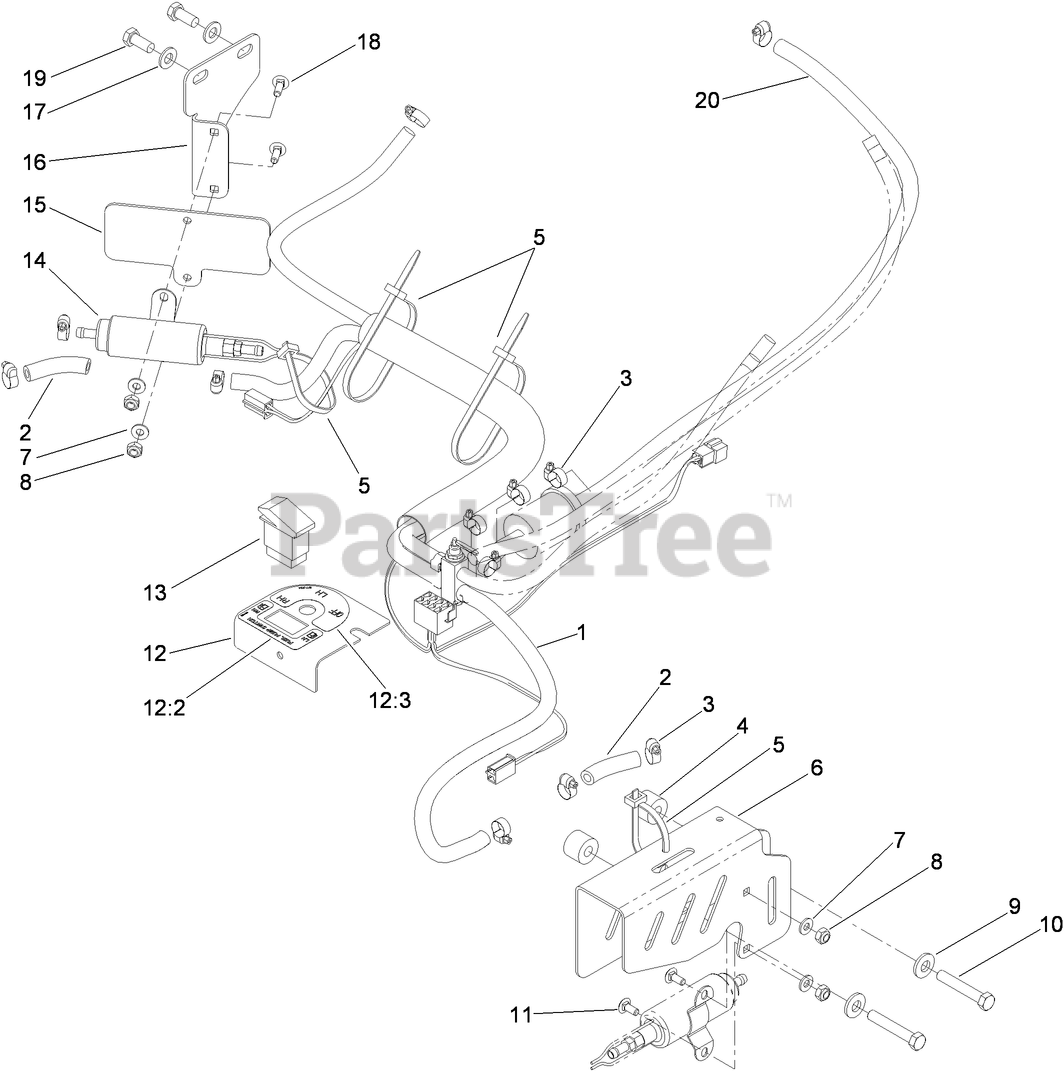

DUAL FUEL PUMP KIT NO. 115-7490 Parts Diagram

  • Title

1

FUEL VALVE AND HOSE ASM

Note: Not serviced separately

$

$

Not available

2

Toro 117-8558

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

3

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

4

Toro 99-3440

SPACER

$7.99

$

Usually ships in 3-6 days

0

5

Toro 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

6

Toro 117-8551-01

BRACKET-FUEL PUMP, LH

$56.99

$

Usually ships in 3-6 days

0

7

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

8

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

9

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

10

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

11

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-8555

FUEL VALVE BRACKET ASM

$62.99

$

Usually ships in 3-6 days

0

12:2

Toro 115-7485

DECAL-SWITCH, FUEL

$18.99

$

Usually ships in 3-6 days

0

12:3

Toro 107-2114

DECAL-VALVE, FUEL

$34.99

$

Usually ships in 3-6 days

0

13

Toro 95-8999

SWITCH

$44.99

$

In Stock, only 1 left!

0

14

Toro 109-0928

PUMP-FUEL

$

$

Not available

15

Toro 117-8553-03

PLATE-COVER, FUEL PUMP

$9.49

$

Usually ships in 3-6 days

0

16

Toro 117-8552-03

BRACKET-FUEL PUMP, RH

$26.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

19

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 110-4171

HOSE-FUEL

$

$

Not available
