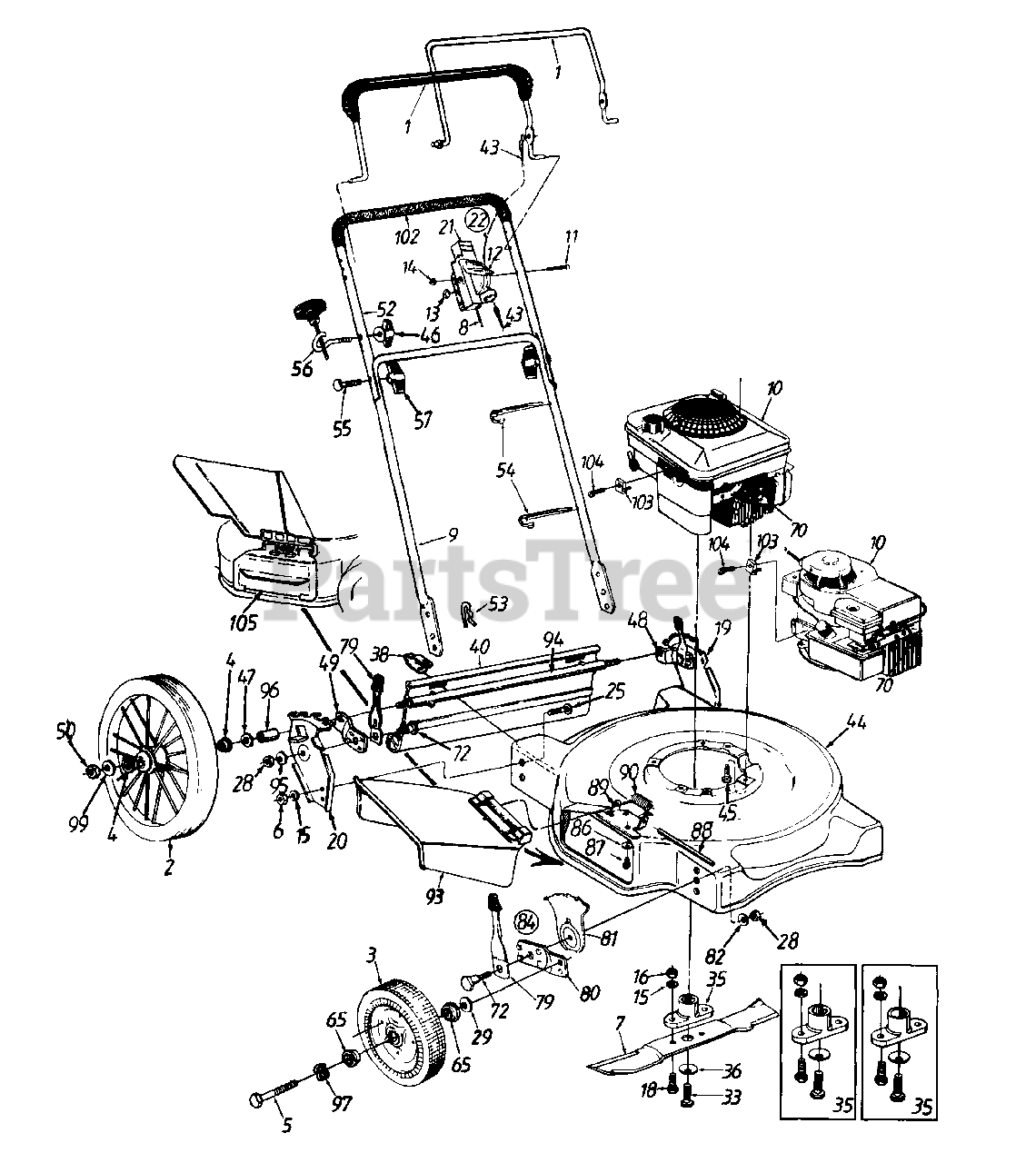

115-508C054 - Mastercraft Walk-Behind Mower (1995) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 734-1661

16" Wheel Ass'y.

$

$

Not available

3

MTD 734-1566

Front Wheel Ass'y. w/ Plastic Brgs.
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1268

Front Wheel Ass'y with Ball Brgs.

$71.99

$

Usually ships in 3-6 days

0

4

MTD 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

6

MTD 712-0328

Hex Nut 3/8-24 Thd. (Gr. 8)
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

7

MTD 742-0622

22" Blade
(Superseded to 942-0622)

$

$

Not available

MTD 742-0722

22" Mulching Blade
(Superseded to 942-0722)

Note: (Optional)

$31.99

$

Usually ships in 3-6 days

0

8

MTD 746-0842

Throttle Control Wire - 51"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

9

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

10

Engine

$

$

Not available

11

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

12

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

13

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

14

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

15

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

?17

MTD 712-0431

Flange L-Nut 3/8-18 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

19

MTD 682-0517

Handle Brkt. Ass'y. - L.H.
(Superseded to 682-0517-0637)

Variations

MTD 682-0517-0637

BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 682-0518

Handle Brkt. Ass'y. - R.H.

Variations

MTD 682-0518-0637

Handle Brkt. Ass'y. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

21

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

22

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 11, 12, 13, 14, 21)

$36.99

$

In Stock, only 1 left!

0

25

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .80"

$

$

Not available

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

35

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

36

MTD 736-0452

Bell-Wash. .39" I.D.

$4.99

$

In Stock, Qty 7

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

MTD 731-1026

Rear Flap Ass'y.

$

$

Not available

43

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

Note: For models 504, 508

$21.99

$

In Stock, only 3 left!

0

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

Note: For models 507

$28.99

$

In Stock, only 4 left!

0

44

MTD 682-0221

22" Deck Ass'y.

Variations

MTD 682-0221-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0221-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0221-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0221-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0221-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0221-0667

No Longer Available DECK ASM - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-0221-0691

No Longer Available DECK ASM - BLACK JACK (0691)

$

$

Not available

MTD 682-0221-0692

No Longer Available DECK ASM - AGWAY BLUE (0692)

$

$

Not available

$

$

45

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

46

MTD 720-0279

Handle Knob 1/4-20 Thd.

Note: New Part

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0504

Wave Wash. .51" I.D.
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

48

MTD 782-0519

Small Pivot Bar - L.H.
(Superseded to 782-0519A)

$

$

Not available

49

MTD 782-0520

Small Pivot Bar - R.H.
(Superseded to 782-0520A)

$

$

Not available

50

MTD 712-3020

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

52

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

56

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

57

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

65

Bearing

$

$

Not available

MTD 734-1781

Wheels w/o Bearings, Bar Tread, (Gray-No Hub Cap)

$32.99

$

In Stock, Qty 7

0

MTD 634-0020

Wheels w/o Bearings, Bar Tread, (Gray-Uses Hub Cap)

$39.99

$

In Stock, Qty 6

0

MTD 734-1782

Wheels w/o Bearings, Bar Tread, (Beige)
(Superseded to 734-1781)

$32.99

$

In Stock, Qty 7

0

MTD 734-1512A

Wheels w/o Bearings, Gray, "S" Wave Tread
(Superseded to 734-1826)

$33.99

$

In Stock, Qty 9

0

MTD 734-1566

Wheels w/ Plastic Bearings, "T" Tread, Brg. Part No. 741-0262
(Superseded to 734-1268)

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1268

Wheels w/ Ball Brgs., "T" Tread, Brg. Part No. 741-0484

Note: Requires Wave Washer 736-0504

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1513B

Wheels w/ Ball Brgs., Gray, "S" Wave Tread, Brg. Part No. 741-0484
(Superseded to 753-08093)

Note: Requires Wave Washer 736-0504

$45.99

$

In Stock, Qty 5

0

70

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

72

MTD 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, only 4 left!

0

79

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

81

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

MTD 14578

Front Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

86

MTD 736-0270

Bell-Wash. .285" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

87

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

93

MTD 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

94

MTD 738-0878

Rear Axle

$

$

Not available

95

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

96

MTD 750-0151

Spacer .55" I.D. x .75"
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

97

MTD 736-0504

Wave Washer .51" I.D. (Used w/Ball Brg. Wheels)
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

99

MTD 736-3050

Fl-Wash. .406" I.D. x .81"

$4.49

$

In Stock, Qty 16

0

?100

MTD 736-0182

Spr. Wash. .5" I.D. x 1.0"

$4.49

$

In Stock, Qty 7

0

102

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

103

MTD 751B213146

Casing Clamp
(Superseded to BS-690798)

Note: For models 504, 508

$5.49

$

In Stock, only 1 left!

0

MTD 7510007755

Casing Clamp

Note: For models 507

$

$

Not available

104

MTD 710-1237

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

Note: For models 504, 508

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sems Scr. #10-32 x .3" Lg.

Note: For models 507

$

$

Not available

105

MTD 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: Optional

$

$

Not available
