115-4463 - Toro BBC Bail Kit for 21" Heavy-Duty Hi-Vac Mower BBC BAIL ASSEMBLY Parts Diagram

BBC Bail Kit for 21" Heavy-Duty Hi-Vac Mower

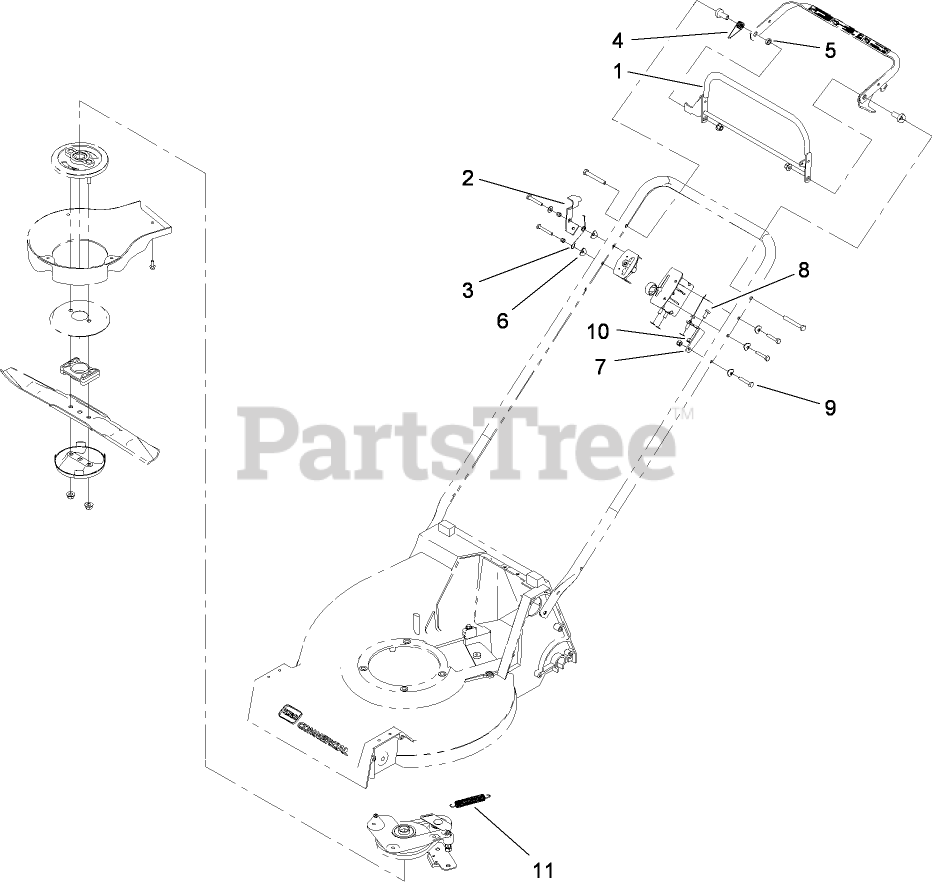

BBC BAIL ASSEMBLY Parts Diagram

  • Title
1

Toro 115-4452-03

BBC BAIL ASM

$

$

Not available

2

Toro 115-0999-01

LATCH-LEVER, BBC

$47.99

$

Usually ships in 3-6 days

0

3

Toro 115-0996

SPRING-TORSION, LATCH

$5.99

$

Usually ships in 3-6 days

0

4

Toro 115-0993

Spring-Torsion

$

$

Not available

5

Toro 59-4310

SPACER

$0.99

$

Usually ships in 3-6 days

0

6

Toro 115-0995

WASHER

$6.99

$

In Stock, only 3 left!

0

7

Toro 115-4455

BRACKET-CABLE, BBC

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 4 left!

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

11

Toro 115-4471

SPRING-EXTENSION

$21.99

$

Usually ships in 3-6 days

0
