115-102-190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1985) 21" Rotary Mower Assembly Parts Diagram

Lawn Boss 21" Walk-Behind Mower

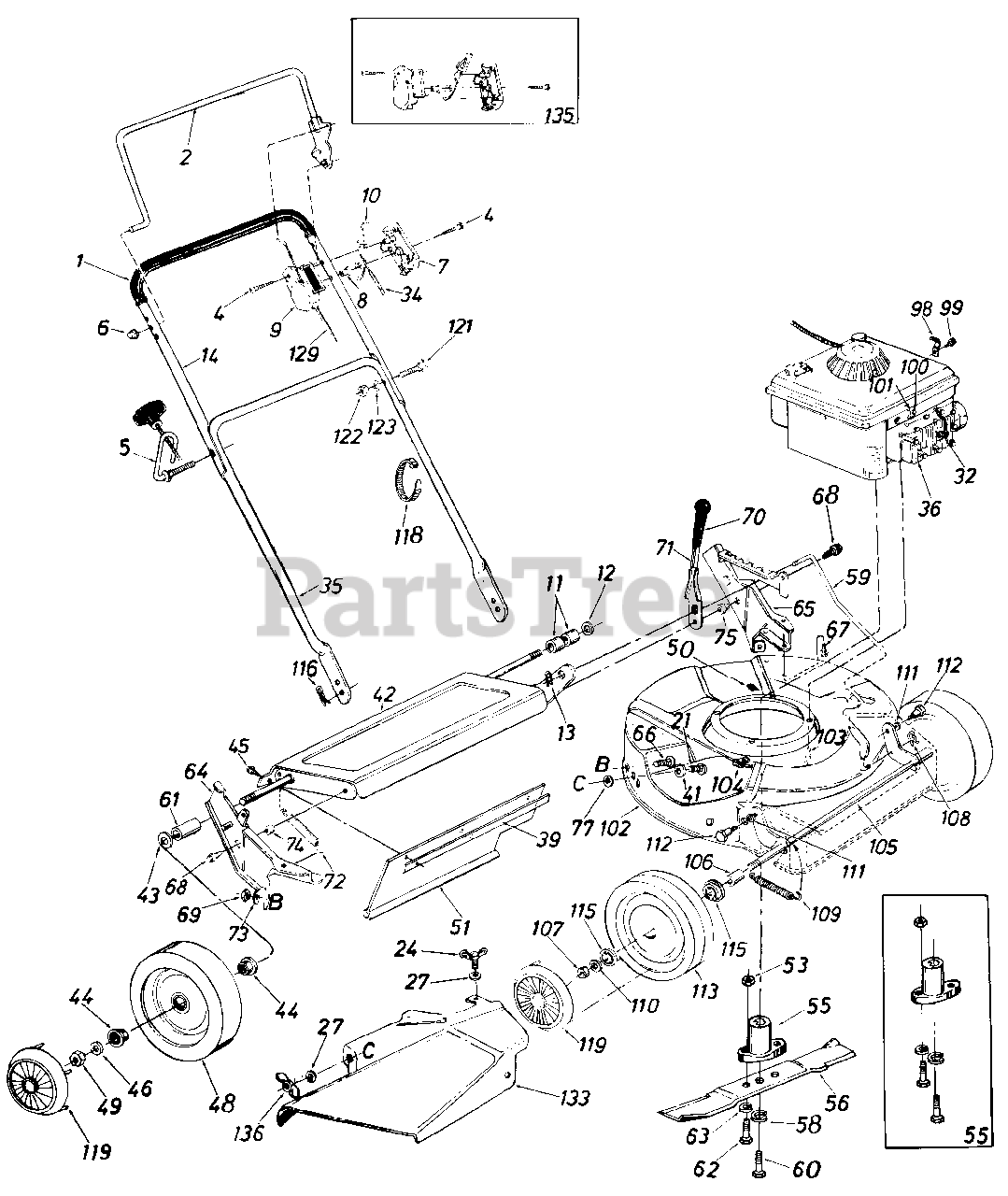

21" Rotary Mower Assembly Parts Diagram

  • Title

1

718-0145

Grip

$

$

Not available

2

White Outdoor 14321

Control Handle Ass'y. L.H.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

6

White Outdoor 726-0135

Cap Speed Nut .31 Dia.

$6.99

$

In Stock, only 1 left!

0

7

White Outdoor 731-0523

Control Panel Half

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0526

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 711-0500

Spacer .526" I.D. x .690" O.D. x .640" Lg
(Superseded to 911-0500)

$

$

Not available

12

White Outdoor 736-0160

Fl-Wash. .531 " I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

13

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

14

749-0437

Upper Handle Chrome

$

$

Not available

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62" Lg.*

$4.49

$

In Stock, Qty 20+

0

24

710-0934

Wing Bolt 1/4-20 x .62" Lg.

$

$

Not available

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 736-0463

Fl-Wash. .280" I.D. x .620" O.D.

$4.49

$

In Stock, only 2 left!

0

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

34

White Outdoor 746-0472

Throttle Control Wire 58.0"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0505

Lower Handle Chrome
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

41

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 8

0

42

White Outdoor 16131

Rear Axle Ass'y

$

$

Not available

43

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

44

White Outdoor 741-0262

Flange Bearing 1/2" I.D.

$8.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 736-0160

Fl-Wash. .531 " I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

48

White Outdoor 734-0894

Rear Wheel Ass'y. Comp.

$

$

Not available

49

White Outdoor 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

50

White Outdoor 731-0564

Plug

$

$

Not available

51

White Outdoor 731-0672

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

53

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

55

753-0348

Blade Adapter Kit

$

$

Not available

56

White Outdoor 742-0289

21" Blade

$

$

Not available

58

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 9

0

59

White Outdoor 747-0510

Height Adj. Rod 1.50" x 19.42" Lg

$

$

Not available

60

White Outdoor 710-0331

Hex Bolt 3/8-24 x 2.25" Lg (Grade 5)

$6.99

$

In Stock, Qty 7

0

61

White Outdoor 748-0191

Spacer .51" I.D. x .69" O.D x .690" Lg
(Superseded to 750-0190)

$

$

Not available

62

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg (Grade 5)

$4.49

$

In Stock, Qty 5

0

63

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 16136

R.H. Handle Wheel Brkt Ass'y
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137

L.H. Handle Wheel Brkt Ass'y
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62" Lg.*
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0143

Grip

$

$

Not available

71

White Outdoor 732-0473

Height Adj. Lever 1.25 x 8.5" Lg
(Superseded to 732-0473B)

$

$

Not available

72

White Outdoor 732-0481

Extension Spring .50" O.D. x 3.80" Lg
(Superseded to 932-0481)

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0526

Spacer .385" I.D. x .502" O.D. x .270" Lg.

$4.99

$

In Stock, only 1 left!

0

75

White Outdoor 750-0624

Shld. Spacer .500" Dia. x .100

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, only 3 left!

0

98

White Outdoor 12894

Throttle Control Cable Clip

$

$

Not available

99

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

100

White Outdoor 710-0899

Hex Sems Bolt #10-32 x .62" Lg.
(Superseded to 710-0899A)

$6.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0333

Casing Clamp

$

$

Not available

102

16125

21" Deck Ass'y

$

$

Not available

103

White Outdoor 710-0654

Hex Wash Hd. TT-Tap Scr. 3/8-16
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

104

White Outdoor 712-0185

Speed Nut 1/4-20 U-Type

$

$

Not available

105

10662

Front Axle Ass'y.

$

$

Not available

106

White Outdoor 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

107

White Outdoor 712-0200

Hex L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

108

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

109

White Outdoor 732-0482

Extension Spring .50" O.D x 3.20" Lg.

$

$

Not available

110

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .930" O.D.

$4.49

$

In Stock, only 2 left!

0

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 x .56" O.D.

$

$

Not available

112

White Outdoor 738-0615

Shld. Bolt .623" Dia. x .425

$

$

Not available

113

White Outdoor 734-0892

Front-Wheel Ass'y. Comp.

$

$

Not available

115

White Outdoor 741-0262

Flange Bearing 1/2" I.D.

$8.49

$

Usually ships in 3-6 days

0

116

White Outdoor 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

118

White Outdoor 726-0192

Cable Tie

$

$

Not available

119

White Outdoor 731-0124

Hub Cap Plastic

$

$

Not available

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

123

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

129

White Outdoor 746-0477

Control Cable 43" Lg.
(Superseded to 946-0477A)

$

$

Not available

133

White Outdoor 16148

Side Chute Deflector

$

$

Not available

135

White Outdoor 753-0360

Kit Control Housing Comp.

$

$

Not available

136

White Outdoor 712-0109

Wing Nut

$

$

Not available
