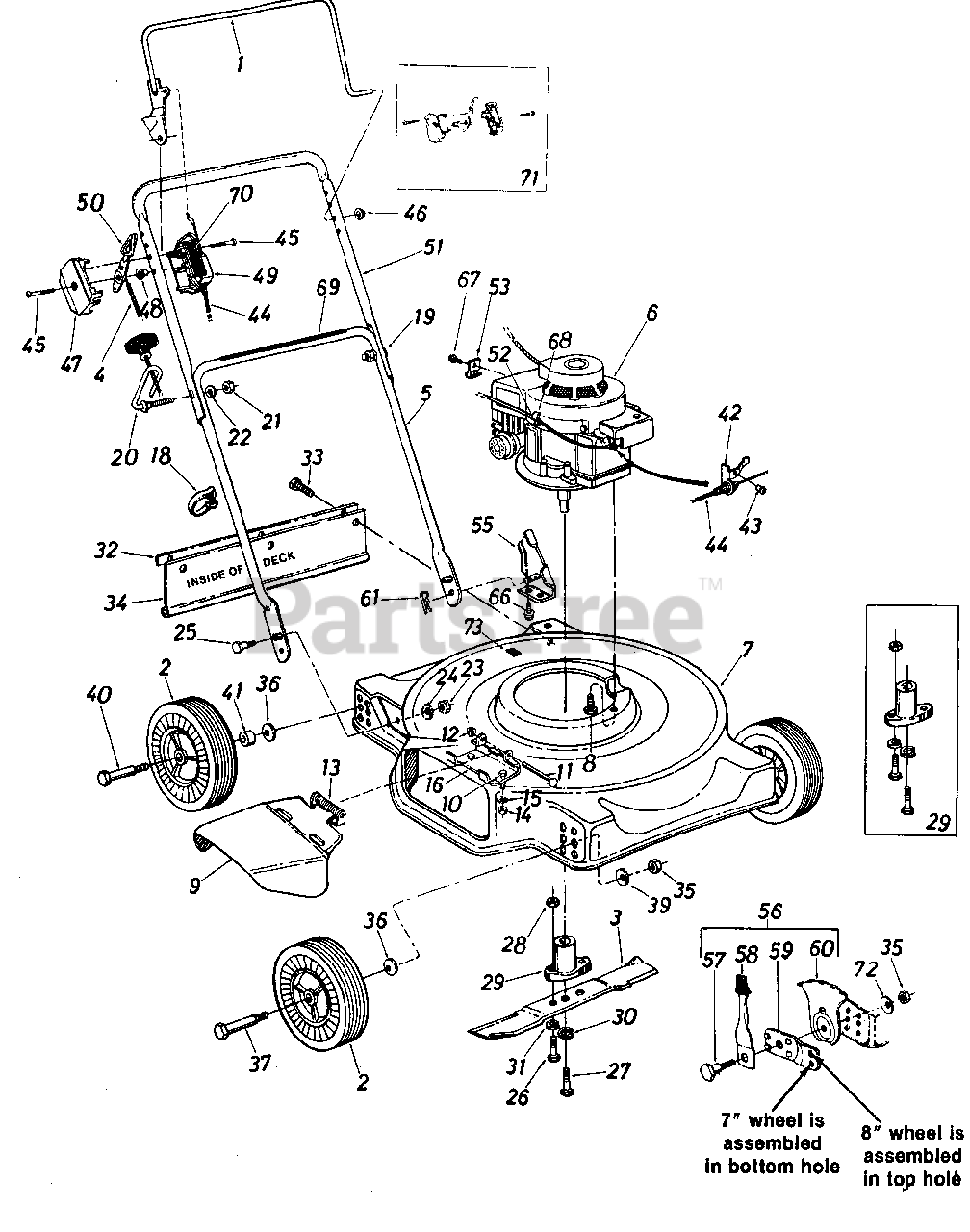

115-082-086 - Lawnflite Walk-Behind Mower (1985) (Super Saver Wholesale Club) Parts02 Parts Diagram

Walk-Behind Mower

Parts02 Parts Diagram

  • Title

1

MTD 14320

Control Handle Ass'y.-R.H.

$

$

Not available

2

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0840

7 x 1.5-Plastic Rim

$

$

Not available

MTD 734-1166

7 x 1.5-Steel Rim

$

$

Currently unavailable

MTD 734-0841

8 x 1.75-Plastic Rim

$

$

Not available

MTD 734-1162

8 x 1.75-Steel Rim

$

$

Not available

MTD 734-0639

Twinline 7 x 1.1-Ball Brgs. 3/8" I.D.

$

$

Currently unavailable

MTD 741-0267

1/2" I.D.

$

$

Not available

MTD 741-0484

Spacer
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 750-0434

(Used Axle Bolt 710-0347)

$6.99

$

Usually ships in 3-6 days

0

MTD 734-0643

Twinline 8 x 1.75-Ball Brgs. 3/8" I.D.

$

$

Not available

MTD 741-0267

1/2" I.D.

$

$

Not available

MTD 741-0484

Spacer
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 750-0434

(Used Axle Bolt 710-0347)

$6.99

$

Usually ships in 3-6 days

0

MTD 734-0637

Waffle 7 x 1.5-Ball Brgs. 3/8" I.D.

$

$

Currently unavailable

MTD 741-0267

1/2" I.D.

$

$

Not available

MTD 741-0484

Spacer
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 750-0434

(Used Axle Bolt 710-0347)

$6.99

$

Usually ships in 3-6 days

0

MTD 734-0645

Waffle 8 x 1.75-Ball Brgs. 3/8" I.D.

$

$

Not available

MTD 741-0267

1/2" I.D.

$

$

Not available

MTD 741-0484

Spacer
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 750-0434

(Used Axle Bolt 710-0347)

$6.99

$

Usually ships in 3-6 days

0

MTD 734-0876

Twinline 7 x 1.5-1/2" I.D. Plastic Brg.

$

$

Not available

MTD 741-0262

(2 per Wheel)

$8.49

$

Usually ships in 3-6 days

0

MTD 734-0661

Twinline 8 x 1.75-1/2" I.D. Plastic Brg.

$

$

Not available

MTD 741-0262

(2 per Wheel)

$8.49

$

Usually ships in 3-6 days

0

MTD 734-0893

Waffle 7 x 1.5-1/2" I.D. Plastic Brg.

$

$

Not available

MTD 741-0262

(2 per Wheel)

$8.49

$

Usually ships in 3-6 days

0

MTD 734-0812

Waffle 8 x 1.75-1/2" I.D. Plastic Brg.

$

$

Not available

MTD 741-0262

(2 per Wheel)

$8.49

$

Usually ships in 3-6 days

0

3

MTD 742-0123

20" Blade

Note: (070 & 072)

$

$

Not available

MTD 742-0125

22" Blade
(Superseded to 942-0125B)

Note: (080 & 082)

$

$

Not available

4

MTD 746-0473

Throttle Control Wire-39"
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

MTD 746-0417

Throttle Control Wire-43"
(Superseded to 946-1115)

$28.99

$

In Stock, only 1 left!

0

5

MTD 749-0373

Lower Handle (Chrome)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

MTD 749-0372

Lower Handle (Painted)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

6

Engine

$

$

Not available

7

MTD 14994

20" Deck Ass'y.

Note: (070)

$

$

Currently unavailable

MTD 14995

20" Deck Ass'y.

Note: (072)

Variations

MTD 14995-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14995-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 14995-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14995-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

MTD 14997

22" Deck Ass'y.

Note: (080)

$

$

Currently unavailable

MTD 14998

22" Deck Ass'y.

Note: (082)

$

$

Not available

8

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 14944

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

10

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

11

MTD 711-0555

Hinge Pin 1/4" Dia. x 3.88 Lg.

$

$

Not available

12

MTD 726-0106

Push Cap .25" Rod

$3.99

$

Usually ships in 3-6 days

0

13

MTD 732-0253

Torsion Spring

$

$

Not available

14

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

MTD 11130

Deflector Hinge Plate

$

$

Not available

18

MTD 726-0192

Cable Tie

$

$

Not available

19

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

20

MTD 710-0842

Rope Guide Bolt

$

$

Not available

21

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

MTD 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

Note: (070 & 080)

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

Note: (070 & 080)

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-0296

Shld. Bolt .437" Dia. x .268

Note: (070 & 080)

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

Note: Special

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

28

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

29

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

30

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 6

0

31

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 14846

Retainer Strip

$

$

Not available

33

MTD 710-0776

Hex Wash. Hd. AB-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

34

MTD 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

35

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

36

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

37

MTD 738-0213

Front Axle Bolt

Note: (070 & 080)

$7.99

$

In Stock, only 2 left!

0

MTD 738-0102

Front Axle Bolt

Note: (072 & 082)

$9.99

$

In Stock, Qty 10

0

39

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

Note: (070 & 080)

$3.99

$

In Stock, Qty 20+

0

40

MTD 738-0509

Rear Axle Bolt

Note: (070 & 080)

$

$

Not available

MTD 738-0102

Rear Axle Bolt

Note: (072 & 082)

$9.99

$

In Stock, Qty 10

0

41

MTD 750-0515

Spacer .511 I.D. x .70" O.D.

Note: (070 & 080)

$4.49

$

In Stock, only 4 left!

0

42

MTD 14924

Cable Bracket

$

$

Not available

43

MTD 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

44

MTD 746-0477

43" Control Cable-Yellow
(Superseded to 946-0477A)

Note: (070)

$

$

Not available

MTD 746-0478

49" Control Cable-Blue
(Superseded to 946-0478A)

Note: (072, 080, 082)

$

$

Not available

MTD 746-0480

57" Control Cable-Red
(Superseded to 946-0478A)

Note: (Optional Parts)

$

$

Not available

45

MTD 710-0796

Truss Mach. Scr. #12 x 1.50"

$5.49

$

In Stock, only 1 left!

0

46

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

47

MTD 731-0523

Control Panel Half

$

$

Not available

48

MTD 731-0524

Control Disc Pin

$

$

Not available

49

MTD 731-0526

Clutch Panel Half

$

$

Not available

50

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

51

MTD 749-0536

Upper Handle (Chrome)
(Superseded to 749-0538E-0637)

$

$

Not available

MTD 749-0538

Upper Handle (Painted)
(Superseded to 749-0538E-0637)

$

$

Not available

52

MTD 710-0429

Hex "B" Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

53

MTD 751-0369

Casing Clamp

$

$

Not available

55

MTD 12935

Handle Mount Brkt. Ass'y.-L.H.

Note: (072 & 082)

$

$

Not available

MTD 12936

Handle Mount Brkt. Ass'y.-R.H.

Note: (Not Shown)

$

$

Not available

56

MTD 14578

Height Adjuster Ass'y.-Comp.-R.H.
(Superseded to 753-06761)

Note: (072 & 082)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adjuster Ass'y.-Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

57

MTD 738-0507

Shoulder Bolt .500" Dia. x .357
(Superseded to 938-0507B)

Note: (072 & 082)

$4.49

$

In Stock, Qty 20+

0

58

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

Note: (072 & 082)

$10.99

$

In Stock, only 3 left!

0

59

MTD 15262

Pivot Bar
(Superseded to 15262B)

Note: (072 & 082)

$14.99

$

In Stock, only 1 left!

0

60

MTD 15261

Index Plate
(Superseded to 787-01290A)

Note: (072 & 082)

$12.99

$

In Stock, only 2 left!

0

61

MTD 714-0104

Hairpin Cotter

Note: (072 & 082)

$4.49

$

In Stock, Qty 20+

0

66

MTD 710-0603

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

Note: (072 & 082)

$4.99

$

Usually ships in 3-6 days

0

67

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 12894

Cable Clip

$

$

Not available

69

MTD 777-3455

Instruction Label-Handle

$

$

Not available

70

MTD 777-5168

Control Label-Throttle

$

$

Not available

71

MTD 753-0360

Kit-Control Housing Comp.

$

$

Not available

72

MTD 736-0356

Belleville Wash. .39 I.D. x 1.4 O.D.
(Superseded to 936-0356)

Note: (072 & 082)

$

$

Not available

73

MTD 731-0564

Plastic Plug

$

$

Not available

MTD 8070-000-5

Hardware Pack

Note: (070 & 080)

$

$

Currently unavailable

MTD 8072-000-5

Hardware Pack

Note: (072 & 082)

$

$

Currently unavailable
