115-076-019 - MTD Walk-Behind Mower (1985) (Agway) Parts02 Parts Diagram

Walk-Behind Mower

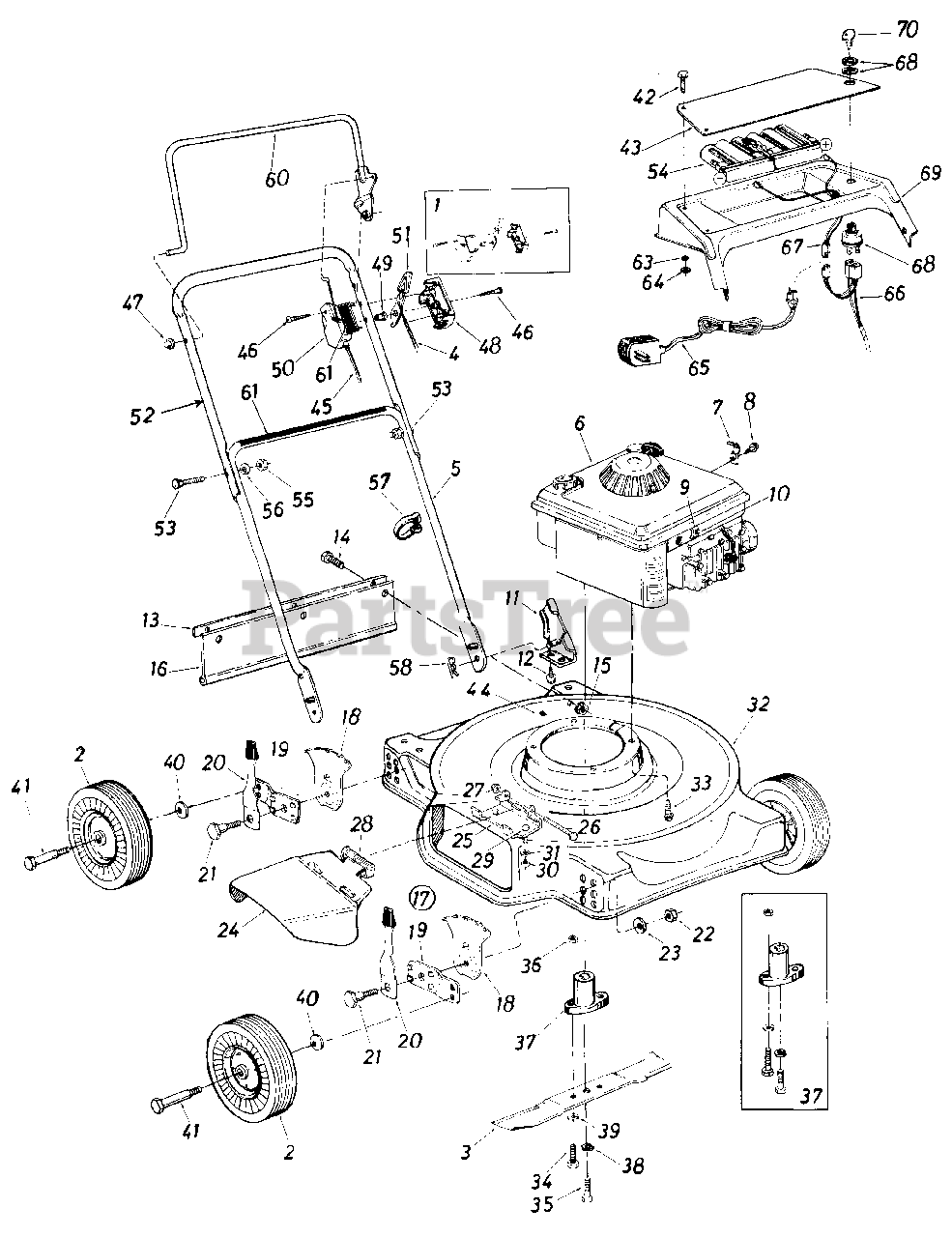

Parts02 Parts Diagram

  • Title

1

MTD 753-0360

Kit-Control Housing Comp.

$

$

Not available

2

MTD 734-0923

Wheel Assy.

$

$

Not available

MTD 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

3

MTD 742-0123

Blade-20"

$

$

Not available

4

MTD 746-0473

Throttle Control Wire-39"
(Superseded to 946-0630A)

$28.99

$

Usually ships in 3-6 days

0

5

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

6

Engine

$

$

Not available

7

MTD 12894

Casing Clamp

$

$

Not available

8

MTD 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

9

MTD 751-0369

Casing Clamp

$

$

Not available

10

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .38" Lg

$4.49

$

In Stock, Qty 20+

0

11

MTD 12935

Handle Mount Brkt.-L.H.

$

$

Not available

MTD 12936

Handle Mount Brkt.-R.H.

Note: (Not Shown)

$

$

Not available

12

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

MTD 14846

Retaining Strip

$

$

Not available

14

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

16

MTD 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

17

MTD 14578

Height Adj. Ass'y.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

18

MTD 15261

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

19

MTD 15262

Pivot Bar
(Superseded to 15262B)

$14.99

$

In Stock, only 1 left!

0

20

MTD 14832

Spring Lever w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

21

MTD 738-0507

Shld. Bolt .500" Dia. x .375
(Superseded to 938-0507B)

$4.49

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

23

MTD 736-0331

Bell-Wash. .39' I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 14944

Chute Deflector Ass'y.- Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

25

MTD 11130

Deflector Hinge Plate

$

$

Not available

26

MTD 711-0555

Pivot Pin

$

$

Not available

27

MTD 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

28

MTD 732-0253

Torsion Spring

$

$

Not available

29

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

30

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

31

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

32

MTD 14995

20" Deck Ass'y.

Variations

MTD 14995-0483

No Longer Available DECK ASM - CHARCOAL GRAY (0483)

$

$

Not available

MTD 14995-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 14995-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 14995-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

33

MTD 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 8)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

36

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

37

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

38

MTD 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 6

0

39

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 736-0105

Bell-Wash. .400" I.D. x .88"O.D.

$4.49

$

In Stock, Qty 20+

0

41

MTD 738-0102

Shld. Bolt .498" Dia. x 1.450" Lg.

$9.99

$

In Stock, Qty 10

0

42

MTD 710-0783

Fl-Hd. Phil. Scr. #8-32 x .38"

$

$

Not available

43

MTD 16360

Battery Plate

$

$

Currently unavailable

44

MTD 731-0564

Plug

$

$

Not available

45

MTD 746-0478

Control Cable
(Superseded to 946-0478A)

$

$

Not available

46

MTD 710-0796

Truss. Mach. Scr. #12 x 1.50" Lg .

$5.49

$

In Stock, only 1 left!

0

47

MTD 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

48

MTD 731-0523

Control Panel Half

$

$

Not available

49

MTD 731-0524

Control Disc Pin

$

$

Not available

50

MTD 731-0526

Clutch Panel Half

$

$

Not available

51

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

MTD 749-0436

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

53

MTD 710-0405

Curved Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

54

MTD 725-1105

Battery Pack

$

$

Not available

55

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

56

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

57

MTD 726-0192

Cable Tie

$

$

Not available

58

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

60

MTD 731-0610

Control Handle-R.H.

$

$

Not available

61

MTD 777-5166

Instruction Labels

$

$

Not available

63

MTD 736-0168

External L-Wash. #8 I.D.

$

$

Not available

64

MTD 712-0142

Hex Nut #8-32 Thd.

$4.49

$

In Stock, Qty 10

0

65

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

66

MTD 725-1096

Wire Harness

$

$

Currently unavailable

67

MTD 725-1106

Battery Pack Lead

$

$

Currently unavailable

68

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

69

MTD 731-0741

Handle Panel

$

$

Not available

70

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0
