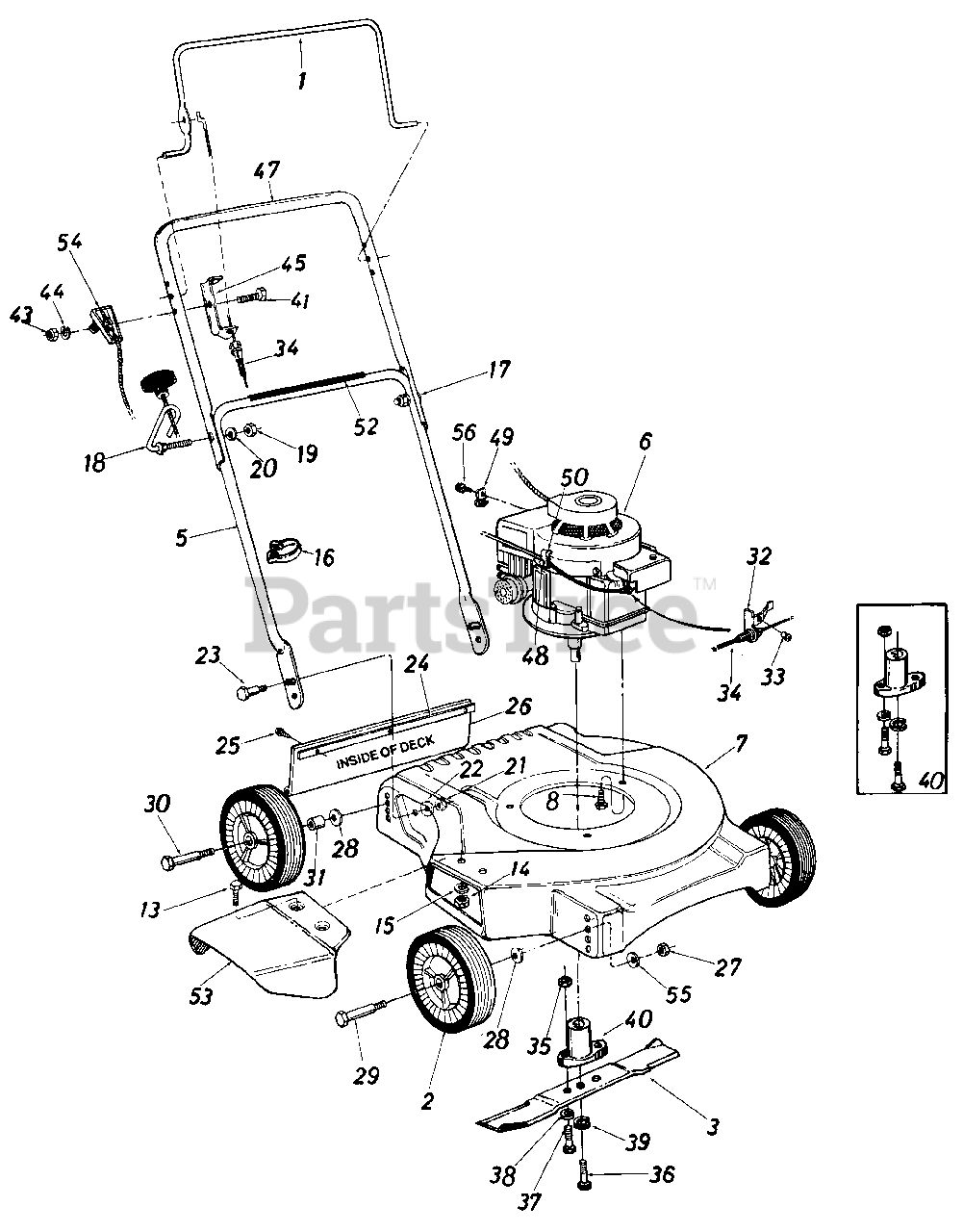

115-050-190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1985) Rotary Mower Assembly Parts Diagram

Lawn Boss 20" Walk-Behind Mower

Rotary Mower Assembly Parts Diagram

  • Title
1

White Outdoor 747-0500

Control Handle

$

$

Not available

2

White Outdoor 734-1176

Plastic Wheel Ass'y.

$

$

Not available

$

$

Not available

5

White Outdoor 749-0373

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

6

Engine

$

$

Not available

7

16202-483

20" Deck

$

$

Not available

8

White Outdoor 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

14

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

15

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

16

$

$

Not available

17

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

18

White Outdoor 710-0842

Rope Guide Bolt

$

$

Not available

19

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

20

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 738-0296

Shld. Bolt .437" Dia. x .268" Lg.

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 14836

Retainer Strip

$

$

Not available

25

White Outdoor 710-0776

Hex Wash. Hd. Self-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 731-0670

Rear Flap Ass'y.

$

$

Not available

27

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 6

0

28

White Outdoor 736-0105

Bell-Wash. .400" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 738-0213

Front Axle Shld. Bolt

$7.99

$

In Stock, only 2 left!

0

30

White Outdoor 738-0509

Rear Axle Shld. Bolt

$

$

Not available

$4.49

$

In Stock, only 4 left!

0

32

White Outdoor 14924

Cable Bracket

$

$

Not available

33

White Outdoor 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

34

White Outdoor 746-0551

Control Cable 43.0" Lg.
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

35

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

36

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

37

White Outdoor 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

White Outdoor 736-0217

L-Wash. 3/8" I.D. Heavy Duty

$4.49

$

In Stock, Qty 6

0

40

White Outdoor 753-0343

Blade Adapter Kit
(Superseded to 753-0343B)

$

$

Not available

41

White Outdoor 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.*

$

$

Not available

43

White Outdoor 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0175

L-Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

45

White Outdoor 16201

Cable Mounting Brkt.

$

$

Not available

47

White Outdoor 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

48

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

49

White Outdoor 751-0369

Casing Clamp

$

$

Not available

50

White Outdoor 12894

Casing Clamp

$

$

Not available

52

MTD 777-3455

Instruction Label Handle

$

$

Not available

53

White Outdoor 16203

Chute Deflector
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

54

White Outdoor 746-0558

Throttle Control Ass'y. Comp.
(Superseded to 946-0645A)

$46.99

$

Usually ships in 3-6 days

0

55

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .38" Lg .

$4.49

$

In Stock, Qty 20+

0
