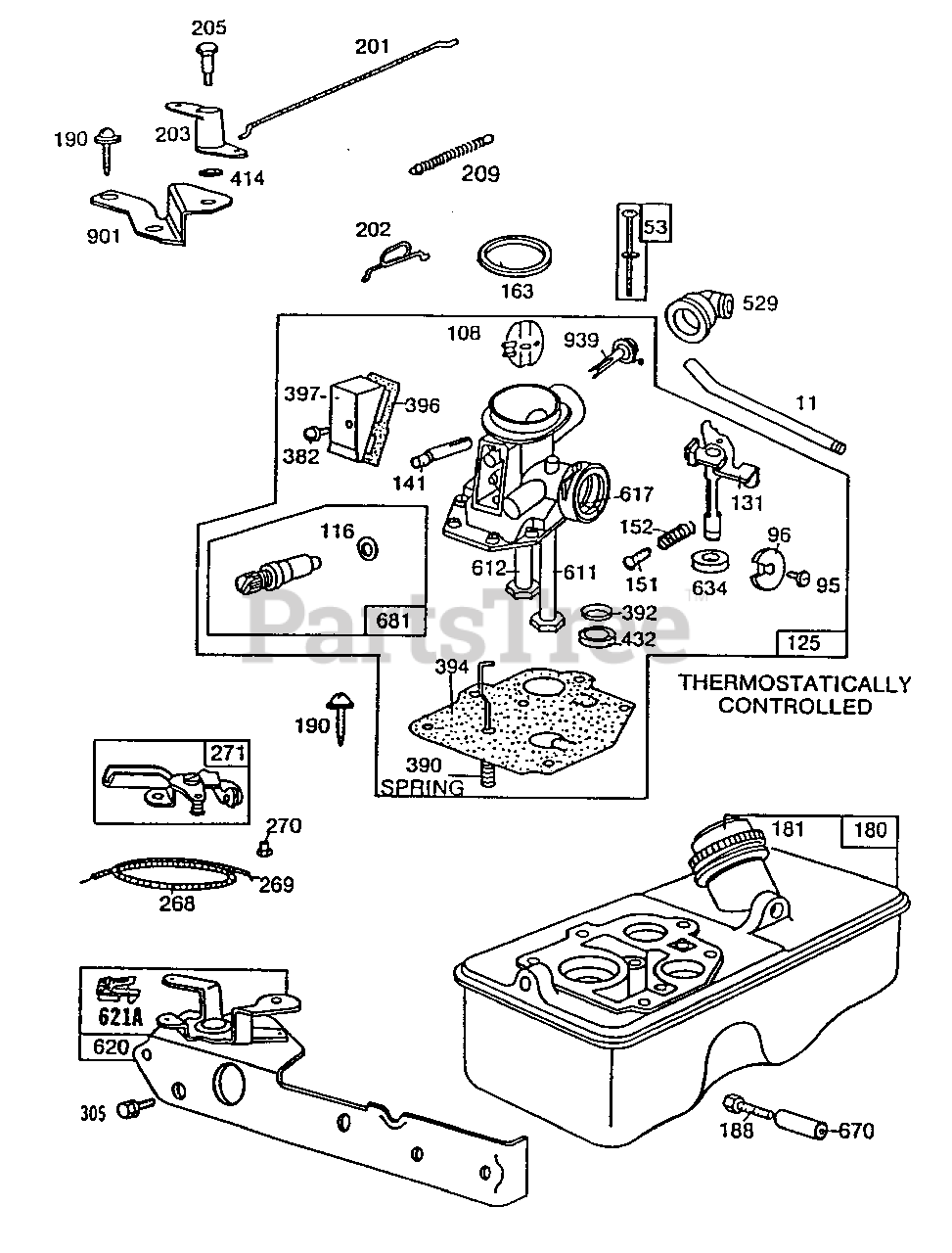

114902-3130-01 - Briggs & Stratton Vertical Engine Carburetor & Fuel Tank Assy Parts Diagram

Vertical Engine

Carburetor & Fuel Tank Assy Parts Diagram

  • Title

11

Briggs & Stratton 231292

Tube-Breather

$4.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 391982

Screw-Tank To Carburetor

$4.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 93499

Screw, Sem Pan Head (Throttle Valve)
(Superseded to 691437)

$3.99

$

In Stock, only 3 left!

0

96

Briggs & Stratton 211237

Valve-Throttle

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 280429

Valve-Choke

$6.49

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 280203

Seal-O
(Superseded to 691898)

$5.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 396586

Carburetor Assy.

Note: Used Before Code Date 83111504

$123.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 397180

Carburetor Assy.

Note: Used After Code Date 83111404

$

$

Not available

131

Briggs & Stratton 394035

Shaft-Throttle (Mechanical Governor)

$13.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 68908

Shaft-Choke

$14.99

$

Usually ships in 2-12 days

0

151

Briggs & Stratton 93524

Screw-Slotted (5-40 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

152

Briggs & Stratton 260746

Spring-Throttle Adjustment
(Superseded to 691783)

$7.99

$

In Stock, Qty 10

0

163

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

180

Briggs & Stratton 396781

Tank-Fuel
(Superseded to 495912)

$

$

Not available

181

Briggs & Stratton 391494

Cap, Tank (Chrome)
(Superseded to 493982S)

$

$

Not available

188

Briggs & Stratton 94102

Screw-Hex. Hd. Sem
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261918

Link-Mech Gov

$7.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 261897

Link-Air Vane (Mechanical Governor)

$5.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280272

Crank-Bell (Mechanical Governor)

$8.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 231520

Screw, Shoulder Hex (#8-32 Thread)
(Superseded to 691776)

Note: Used After Code Date 86112300

$

$

Not available

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 86112400

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 261938

Spring-Governor

$7.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if a shorter casing is needed, order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is needed, specify length in inches; if shorter wire is needed, order No. 26099 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

382

Briggs & Stratton 93545

Screw-Cover

$3.49

$

In Stock, only 1 left!

0

390

Briggs & Stratton 261249

Spring-Diaphragm

$5.99

$

Usually ships in 2-12 days

0

392

Briggs & Stratton 260455

Spring-Pump Diaphragm
(Superseded to 692206)

$4.49

$

In Stock, Qty 7

0

394

Briggs & Stratton 391643

Diaphragm-Carburetor
(Superseded to 391681)

$19.99

$

In Stock, Qty 8

0

396

Briggs & Stratton 270571

Gasket-Choke Link Cover

$6.99

$

In Stock, Qty 12

0

397

Briggs & Stratton 211678

Cover-Choke Link

$3.49

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

Note: Used Before Code Date 86112400

$7.49

$

In Stock, only 1 left!

0

414

Briggs & Stratton 223932

Washer

Note: Used After Code Date 86112300

$4.49

$

Usually ships in 2-12 days

0

432

Briggs & Stratton 221377

Cap-Spring
(Superseded to 690766)

$4.99

$

In Stock, only 3 left!

0

529

Briggs & Stratton 280368

Grommet-Breather

$7.99

$

Usually ships in 2-12 days

0

611

Briggs & Stratton 297219

Tube-Pick Up (2-5/8" Long)
(Superseded to 297219S)

$

$

Not available

612

Briggs & Stratton 296811

Pipe/Sleeve Assy
(Superseded to 497413S)

$7.49

$

In Stock, Qty 5

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

$3.49

$

In Stock, Qty 20+

0

620

Briggs & Stratton 394642

Bracket-Control (Remote Control)

$21.99

$

Usually ships in 2-12 days

0

621A

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

Note: Used Before Code Date 85032800

$

$

Not available

621A

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

Note: Used After Code Date 85032700

$5.99

$

In Stock, Qty 20+

0

634

Briggs & Stratton 270167

Washer (Felt)

$4.99

$

In Stock, Qty 13

0

670

Briggs & Stratton 94038

Spacer, Tank (Used On Engines With Band-Brake).
(Superseded to 691631)

Note: Used on Engines with Band Brake

$5.99

$

Usually ships in 2-12 days

0

670

Briggs & Stratton 94047

Spacer, Tank (Used On Engines Without Band-Brake).
(Superseded to 691633)

Note: Used on Engines without Band Brake

$4.99

$

In Stock, only 1 left!

0

681

Briggs & Stratton 395508

Valve-High Speed (Nylon Body)

$8.99

$

Usually ships in 2-12 days

0

901

Briggs & Stratton 490818

Bracket-Mounting (Mechanical Governor)

$6.49

$

Usually ships in 2-12 days

0

939

Briggs & Stratton 395665

Shaft-Auto Choke (Includes Spring)

$14.99

$

Usually ships in 2-12 days

0
