114-428C190 - White Outdoor 21" Walk-Behind Mower (1994) Rotary Mower Parts Diagram

21" Walk-Behind Mower

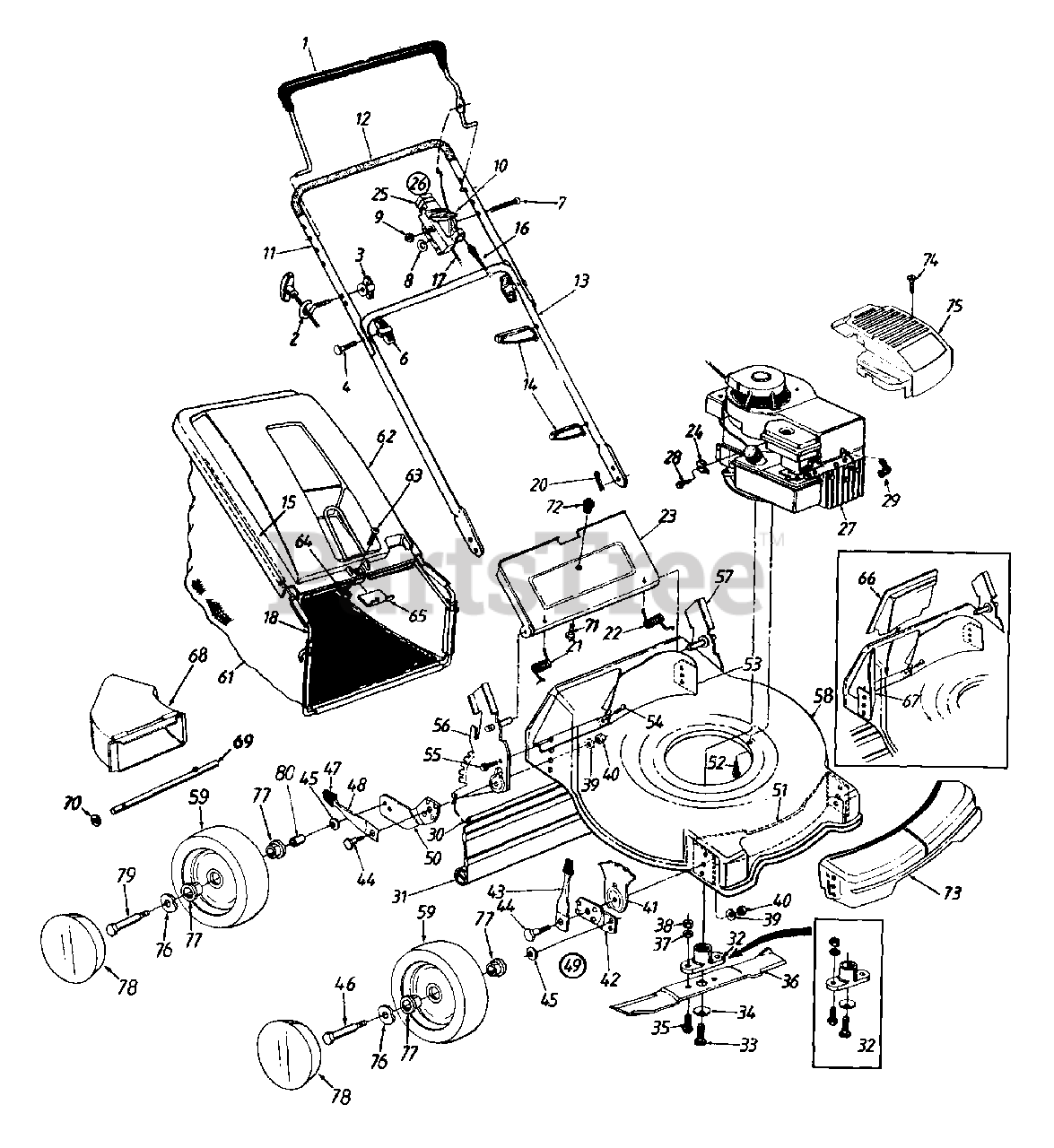

Rotary Mower Parts Diagram

  • Title

1

MTD 647-0004A

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

MTD 920-0276

Hand Knob

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 2 left!

0

8

MTD 936-0501

Spr. Wash. .66" I.D.

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 946-0876

Throttle Lever

$8.49

$

In Stock, only 3 left!

0

11

MTD 749-0538E-0637

Upper Handle

$

$

Not available

12

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 764-0310A-0637

Rear Catcher Frame

$46.99

$

Usually ships in 3-6 days

0

16

MTD 946-0553

Control Cable - 36"

$24.99

$

Usually ships in 3-6 days

0

17

MTD 946-0671A

Throttle Control Wire - 55"

$14.99

$

In Stock, only 3 left!

0

18

MTD 764-0311-0637

Front Catcher Frame

$

$

Not available

20

MTD 914-0104

Int. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

MTD 932-0677

Door Spring - L.H.

$

$

Not available

23

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

MTD 751B213146

Cable Clamp (B & S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

25

MTD 946-0875

Throttle Body

$9.49

$

In Stock, only 3 left!

0

26

MTD 811-0185

Throttle Box Comp.

Note: Incl. Ref. 7, 8, 9, 10, 25

$36.99

$

In Stock, only 1 left!

0

27

Engine

$

$

Not available

28

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

29

MTD 735-0639

Spark Plug Boot

Note: Optional

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-04998

Rear Flap

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0484

Blade Adapter Kit

$23.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

34

MTD 936-0452

Bell-Wash. .39" I.D.
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

35

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

36

MTD 942-0721

21" Mulching Blade

$32.99

$

Usually ships in 3-6 days

0

37

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

38

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

39

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38"

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

MTD 787-01290A

Height Adj. Plate

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, only 3 left!

0

44

MTD 938-0507B

Shld. Bolt .5" Dia. x .357"
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 938-0102

Front Axle Bolt
(Superseded to 738-0102)

$

$

Not available

47

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-0417A

Spring Lever

$

$

Not available

49

MTD 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

49

MTD 753-06761

Height Adj. Ass'y. Comp. - L.H.

Note: Not shown

$65.99

$

In Stock, Qty 7

0

50

MTD 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 782-5003A

Rear Baffle

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

55

MTD 910-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.

$

$

Not available

56

MTD 682-0516-0637

Handle Brkt. Ass'y. - R.H.

$

$

Not available

57

MTD 753-05994

Handle Brkt. Ass'y. - L.H.

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0310

21" R.D. Deck

Note: NLA

Variations

MTD 782-0310-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0310-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0310-0499

No Longer Available DECK ASM - CUB BEIGE (0499)

$

$

Not available

MTD 782-0310-0629

No Longer Available DECK ASM - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0310-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0310-0648

No Longer Available DECK ASM - TECH GRAY (0648)

$

$

Not available

MTD 782-0310-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0310-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0310-0671

No Longer Available DECK ASM - BEAVER GREEN (0671)

$

$

Not available

MTD 782-0310-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

59

MTD 734-1793

Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

61

MTD 964-0433

Grass Bag

$

$

Not available

62

MTD 731-1876

Hard Top Cover

$

$

Not available

63

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

65

MTD 782-9011-0637

Mounting Bracket

$9.49

$

Usually ships in 3-6 days

0

66

MTD 782-5007C

Mulching Baffle Plug

Note: Optional

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004B

Mulching Baffle - R.R.

Note: Optional

$24.99

$

Usually ships in 3-6 days

0

68

MTD 731-1405A

Deflector

Note: Optional

$

$

Not available

69

MTD 711-0996

Rod

Note: Optional

$45.99

$

Usually ships in 3-6 days

0

70

MTD 726-0201

Push Speed Nut

Note: Optional

$6.99

$

In Stock, only 2 left!

0

71

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

72

MTD 720-0275

Knob

$

$

Not available

73

MTD 731-1506A

Deck Shroud

Note: Optional

$

$

Not available

74

MTD 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, only 2 left!

0

75

MTD 751B281451

XTL Grey Shroud

$

$

Not available

76

MTD 936-0504

Wave Washer

$4.49

$

In Stock, Qty 9

0

77

MTD 941-0180

Ball Bearings

$18.99

$

Usually ships in 3-6 days

0

78

MTD 731-0981C

Hub Cap

$10.99

$

In Stock, only 2 left!

0

79

MTD 738-0213

Rear Axle Bolt

$7.99

$

In Stock, only 2 left!

0

80

MTD 950-0535

Spacer

$4.49

$

In Stock, Qty 20+

0
