114-338C084 - Turf King Walk-Behind Mower (1994) (Fred Meyers) General Assembly Parts Diagram

Walk-Behind Mower

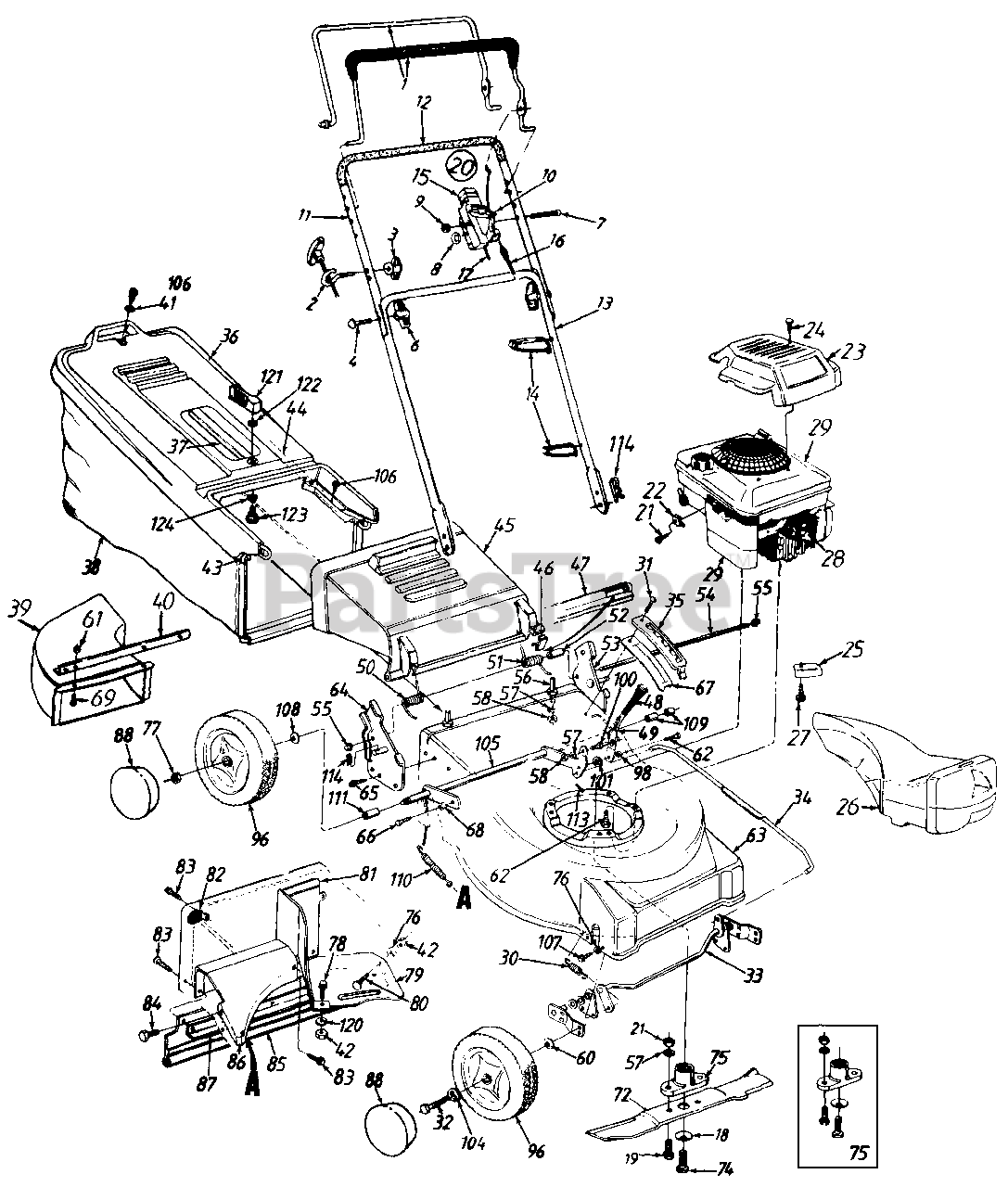

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

Note: New Part

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

8

MTD 736-0501

Spr. Wash .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

11

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: New Part

$9.49

$

In Stock, only 4 left!

0

16

MTD 746-0554

Control Cable
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

17

MTD 746-0843

Throttle Control Wire - 55"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

18

MTD 736-0453

Bell-Wash .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

19

MTD 710-1055

Hex Bolt 3/8-24 x 1" Lg.

$4.99

$

Usually ships in 3-6 days

0

20

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 7, 8, 9, 10, 15)

$36.99

$

In Stock, only 1 left!

0

21

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

22

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: New Part

$5.49

$

In Stock, only 1 left!

0

23

MTD 751B281191

XTE Black Shroud
(Superseded to 751B281440)

Note: Optional Parts

$

$

Not available

MTD 751B281295

XTE Red Shroud
(Superseded to 751B281443)

Note: Optional Parts

$

$

Not available

MTD 731-1396

Black Shroud
(Superseded to 731-1396A)

Note: Optional Parts

$

$

Not available

24

MTD 710-1256

Hi-Lo Scr. #10 x 1.25" Lg.

$5.99

$

In Stock, only 3 left!

0

25

MTD 782-7010

Stop Bracket

Note: Optional Parts

$

$

Not available

26

MTD 731-1446

Mulching Plug
(Superseded to 931-1446)

Note: Optional Parts

$

$

Not available

27

MTD 710-1006

Hex Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

28

MTD 735-0639

Spark Plug Boot

Note: Optional Parts

$

$

Not available

29

Engine

$

$

Not available

30

MTD 732-0589

Extension Spring 2.39" Lg.

$

$

Not available

31

MTD 710-1017

Torx Hd. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

32

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

33

MTD 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

MTD 17022-0637

AXLE ASSY - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

34

MTD 747-0699

Height Adj. Connecting Rod

$

$

Not available

35

MTD 17323

Height Adjustment Plate

$

$

Not available

36

MTD 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

37

MTD 731-0856

Hardtop Handle
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

38

MTD 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

Usually ships in 3-6 days

0

39

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

Note: Optional Parts

$

$

Not available

40

MTD 782-7011

Chute Mounting Brkt.
(Superseded to 782-7011-0637)

Variations

MTD 782-7011-0637

Chute Mounting Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

41

MTD 736-0463

Fl-Wash .281" I.D. x .62" O.D.

$4.49

$

In Stock, only 2 left!

0

42

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

43

MTD 764-0411

Front Catcher Frame
(Superseded to 764-0411-0637)

Variations

MTD 764-0411-0637

CATCHER-FRT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

?44

MTD 749-0736A

Rear Catcher Frame

$

$

Not available

45

MTD 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal - Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 6

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578A

Torsion Spring - R.H.
(Superseded to 732-0578B)

$

$

Not available

51

MTD 732-0577A

Torsion Spring - L.H.
(Superseded to 932-0577B)

$

$

Not available

52

MTD 750-0566

Spacer .255" I.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297A

Handle Brkt. Ass'y.- L.H.

$

$

Not available

54

MTD 747-0698B

Hinge Pin 17.75" Lg

$

$

Not available

55

MTD 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0105

Bell-Wash .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

61

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

62

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

63

MTD 16997

21" Deck Ass'y

$

$

Currently unavailable

64

MTD 12296A

Handle Brkt. Ass'y.- R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

MTD 710-0892

Hex L-Wash Hd AB-Tap Scr. 1/4 x 62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

MTD 710-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

67

MTD 721-0216

Height Adjustment Support

$

$

Not available

68

MTD 750-0626

Spacer 385" I.D.

$

$

Currently unavailable

69

MTD 710-0286

Mach. Scr 1/4-20 x 5" Lg

$4.49

$

Usually ships in 3-6 days

0

72

MTD 742-0621

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

MTD 742-0721

21" Mulching Blade
(Superseded to 942-0721)

Note: Optional Parts

$32.99

$

Usually ships in 3-6 days

0

74

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

75

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

76

MTD 736-0329

L-Wash 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

77

MTD 712-0346

Hex Jam Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 9

0

78

MTD 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

79

MTD 17013A

Rear Belt Baffle

Note: New Part

Variations

MTD 17013A-0637

No Longer Available BAFFLE-BEL - POWDER BLACK (0637)

$

$

Not available

$

$

80

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17007

Rear Panel Baffle

Variations

MTD 17007-0637

Rear Panel Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

82

MTD 731-0931

Corner Plug

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0352

Hex B-Tap Scr. 1/4 x 38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

MTD 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

MTD 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

MTD 14847

Retaining Strip

Variations

MTD 14847-0637

Retaining Strip - POWDER BLACK (0637)

$

$

Not available

$

$

88

Hub Cap

$

$

Not available

MTD 731-0981A

Hub Cap 5-1/2" Dia. (Gray)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

Usually ships in 3-6 days

0

MTD 720-0249

Hub Cap 3-1/2" Dia. (Gray)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

96

MTD 734-1512A

Wheel Ass'y. Comp.
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

98

MTD 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 786-0258

Fl-Wash .375" I.D. x 1.0"

$

$

Currently unavailable

104

MTD 736-0232

Wave Wash .53" I D. x .78"

$4.99

$

In Stock, Qty 12

0

105

MTD 17031A

Rear Axle Ass'y

Note: New Part

$

$

Not available

106

MTD 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

107

MTD 710-0352

Hex L-Wash HD AB-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

108

MTD 736-0108

Fl-Wash .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

109

MTD 711-0500

Spacer .526" I.D.

$

$

Not available

110

MTD 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

MTD 711-0313

Sleeve .526" I.D.

$

$

Not available

113

MTD 714-0507

Cotter Pin 3/32" Dia. x 75"

$4.49

$

In Stock, only 2 left!

0

114

MTD 714-0104

Internal Cotter Pin 5/16" Dia

$4.49

$

In Stock, Qty 20+

0

120

MTD 736-0270

Bell-Wash 1/4" I.D

$3.99

$

In Stock, Qty 20+

0

121

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

122

MTD 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

123

MTD 738-0137

Shld. Bolt .342" Dia x .268"

$

$

Not available

124

MTD 736-0286

Wave Washer 3/8" I.D.
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0
